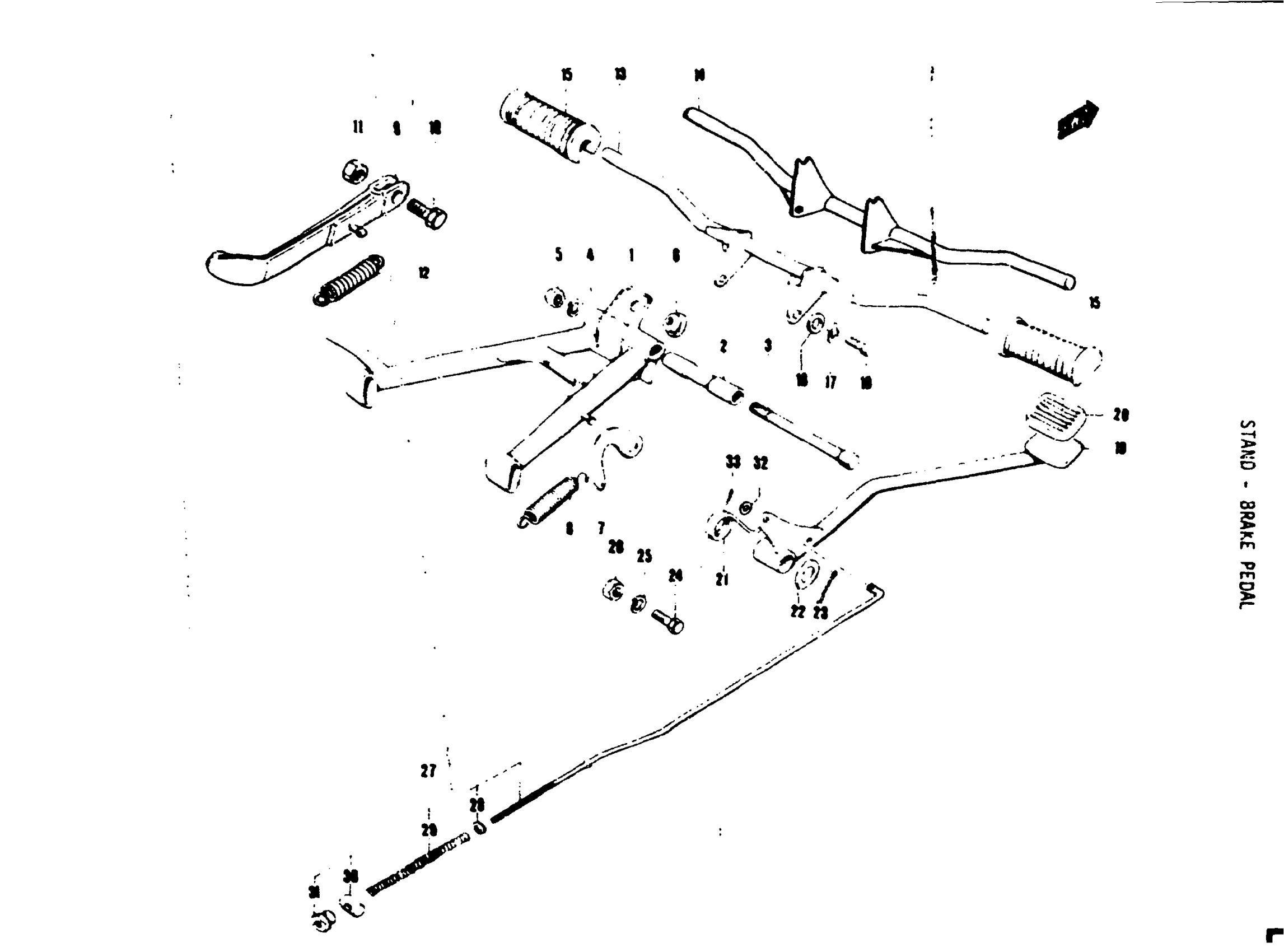

Suzuki AC50 (1971) STAND - BRAKE PEDAL Diagram

#

Description
Price

1

CENTER STAND

42100-12700

Unavailable

2

CENTER STAND SPACER | 4x16x84.4

42211-03001

Unavailable

3

BOLT,10X107 This part replaces 09100-10018.

09100-10151

Unavailable

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

5

NUT This part replaces 08312-11108.

08310-00107

$2.19

6

CENTER STAND BUFFER

09321-10002

$2.22

7

HOOK,CENTER STA This part replaces 42251-03002.

42251-03004

Unavailable

8

SPRING This part replaces 09443-16002.

09443-16007

Unavailable

9

PROP STAND

42310-19000

Unavailable

10

BOLT | CREW, L:107 This part replaces 09100-10007.

09100-10287

$3.48

11

NUT This part replaces 08312-31108.

08310-00107

$2.19

12

SPRING This part replaces 09443-14005.

09443-14017

$3.04

13

FOOTREST BAR

43510-05100

Unavailable

14

FOOTREST BAR

43510-22200

Unavailable

15

RUBBER This part replaces 43551-03000.

43551-03001

$7.22

16

WASHER This part replaces 08322-21088.

08322-01087

$2.13

17

LOCK WASHER This part replaces 08321-21083.

08321-0108A

$1.84

18

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

19

BRAKE PEDAL

43110-05100

Unavailable

19

BRAKE PEDAL

43110-22200

Unavailable

20

BRAKE PEDAL RUBBER

43151-01000

Unavailable

21

BRAKE PEDAL RETURN SPRING

09448-31003

Unavailable

21

BRAKE PEDAL RETURN SPRING

09448-31002

Unavailable

22

BRAKE PEDAL WASHER | .3

09160-15002

$1.91

23

PIN This part replaces 04111-30258.

04111-3030A

$1.49

24

BRAKE PEDAL RETURN SPRING STO

09100-10032

Unavailable

25

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

26

NUT This part replaces 08312-11108.

08310-00107

$2.19

27

BRAKE ROD ASSY

43300-01003

Unavailable

27

BRAKE ROD ASSY

43300-20000

Unavailable

28

WASHER This part replaces 08322-21058.

08322-01057

$2.13

28

WASHER | Includes Item(s) 29 - 31 This part replaces 08322-21068.

08322-01067

$2.13

29

ROD SPRING

09440-09004

$2.20

30

LEVER PIN

09209-10001

$1.49

30

LEVER PIN

09209-11002

$2.19

31

ADJUSTING NUT

09150-05101

$3.04

31

.NUT This part replaces 09150-06001.

09150-06010

$3.10

32

WASHER This part replaces 08322-21058.

08322-01057

$2.13
