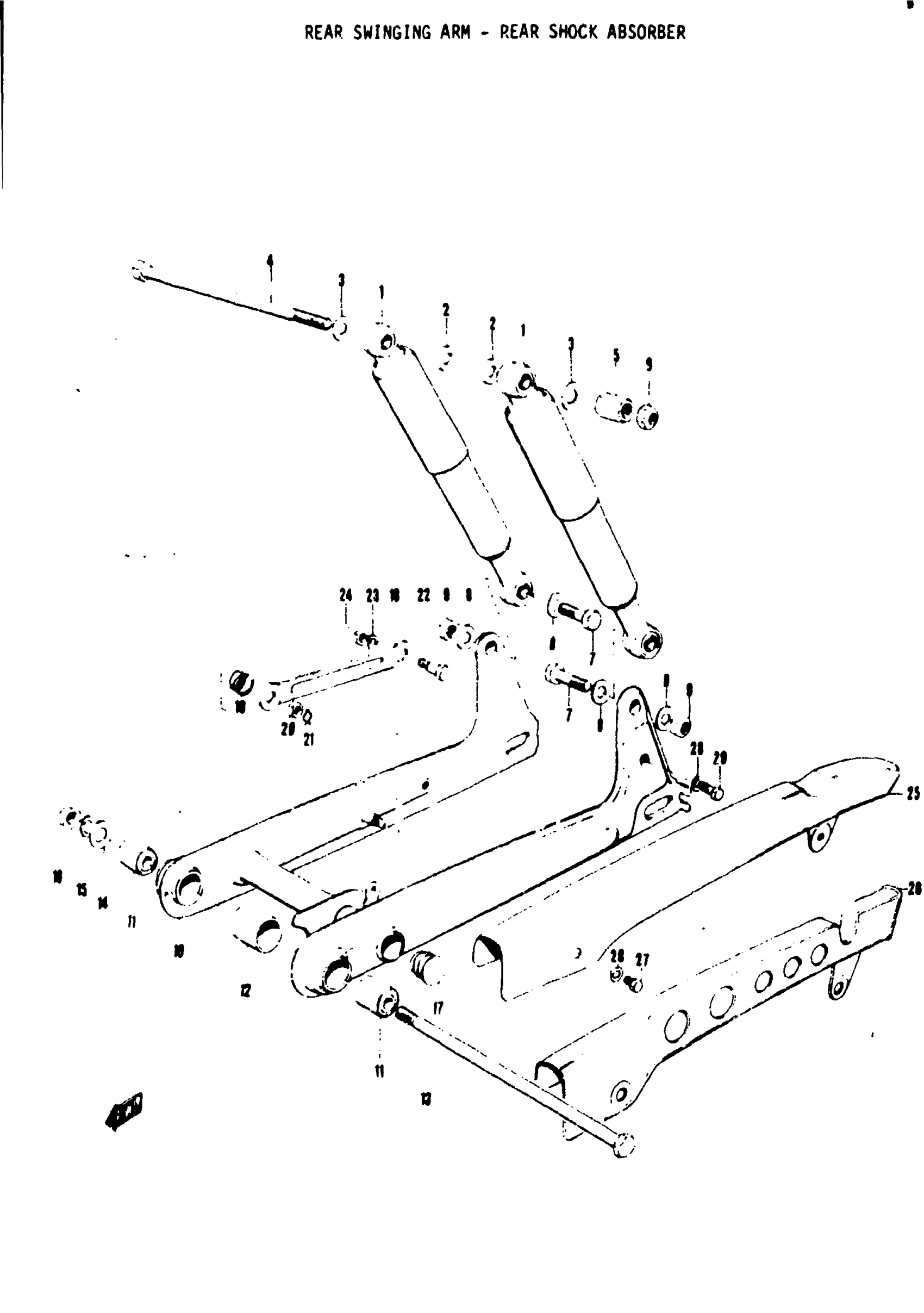

Suzuki AC50 (1971) REAR SWINGING ARM - REAR SHOCK ABSORBER Diagram

#

Description
Price

1

REAR SHOCK ABSORBER ASS'Y | OME-PLATED

62100-05601

Unavailable

1

REAR SHOCK ABSORBER

62100-22230-186

Unavailable

2

REAR SHOCK ABSORBER UPPER WAS

09160-10005

$1.87

3

WASHER This part replaces 08322-21108.

08322-01107

$2.15

4

SHAFT,REAR SHOC This part replaces 62311-05100.

62311-05101

Unavailable

5

REAR SHOCK ABSORBER NUT

09159-10003

Unavailable

6

REAR SWINGING ARM NUT

09140-10001

Unavailable

7

REAR SHOCK ABSORBER LOWER BOL

09100-10019

Unavailable

7

REAR SHOCK ABSORBER LOWER BOL

09100-10046

Unavailable

8

WASHER This part replaces 08322-21108.

08322-01107

$2.15

9

REAR SWINGING ARM NUT

09140-10001

Unavailable

10

REAR SWINGING ARM | Includes Item(s) 11

61100-22812-019

Unavailable

11

REAR SWINGING ARM BUSHING

09319-10009

$7.62

12

PILOT SHAFT HOUSING BUTTER

09320-22001

Unavailable

13

PILOT SHAFT

61211-20000

Unavailable

14

WASHER This part replaces 08322-21108.

08322-01107

$2.15

15

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

16

HEXAGON NUT

08311-11107

Unavailable

17

SWINGING ARM JOINT CAP

09250-22002

$1.99

18

REAR TORQUE LINK

64311-01001

Unavailable

19

REAR TORQUE LINK SPRING

09440-18002

$1.49

20

REAR TORQUE LINK NUT

09140-08008

$1.49

21

REAR TORQUE LINK CLIP

09384-06001

$1.49

22

REAR TORQUE LINK BOLT

64331-01000

Unavailable

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

REAR TORQUE LINK NUT

09140-08008

$1.49

25

CHAIN CASE | OME-PLATED

61310-05600

Unavailable

26

NO DESCRIPTION AVAILABLE This part replaces 61310-22200.

61310-22610

Unavailable

27

CHAIN CASE BOLT (S) | :6

09100-06005

Unavailable

28

WASHER This part replaces 08322-21068.

08322-01067

$2.13
