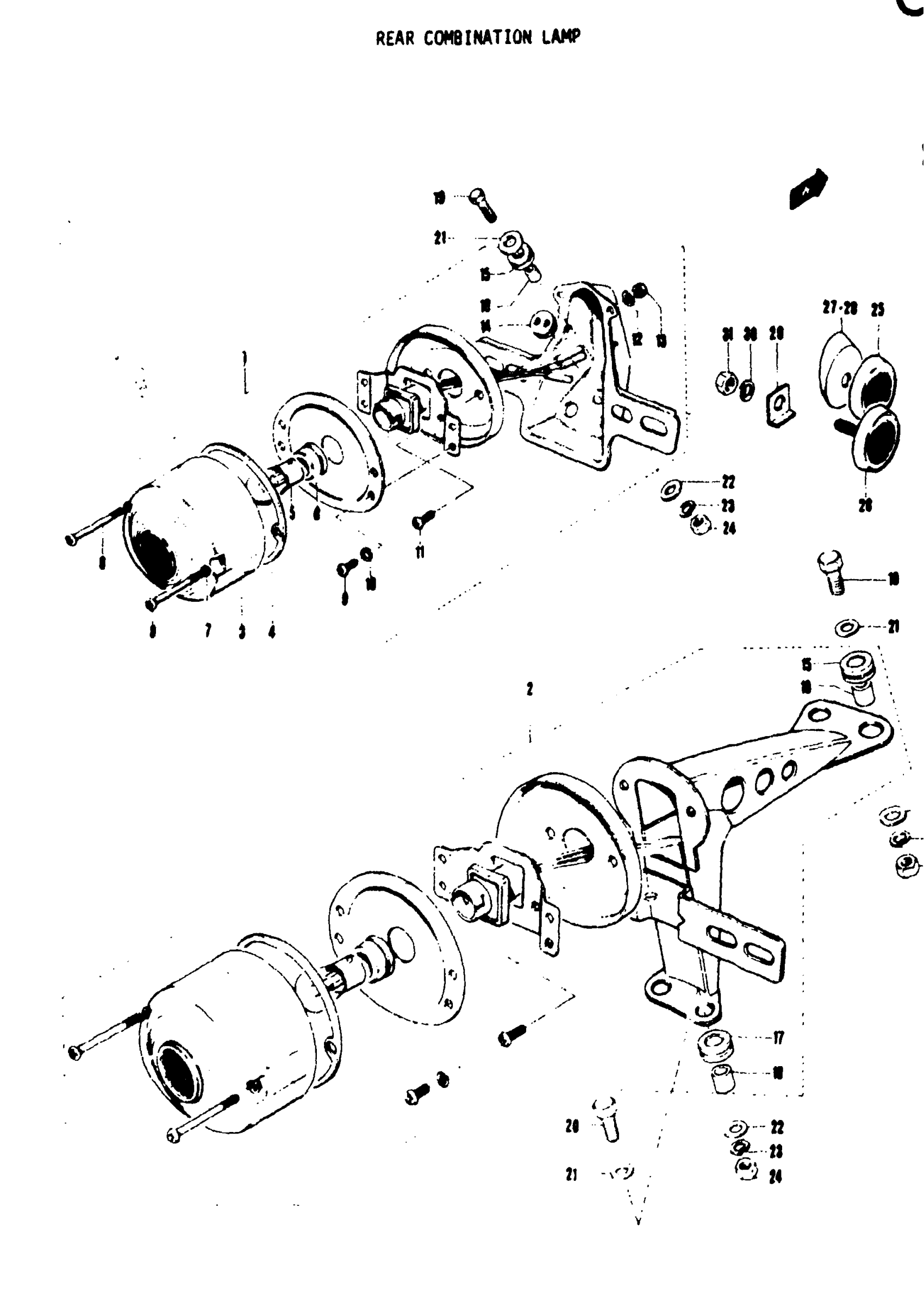

Suzuki AC50 (1971) REAR COMBINATION LAMP Diagram

#

Description
Price

1

REAR COMBINATION LAMP ASS'Y

35710-20601

Unavailable

2

REAR COMBINATION LAMP ASS'Y | Includes Item(s) 3 - 18

35710-22610

Unavailable

3

LENS, RR COMB L This part replaces 35712-15011.

35712-06112

$35.16

3

LENS, RR COMB L This part replaces 35712-22610.

35712-06112

$35.16

4

LENS GASKET

35713-15010

Unavailable

5

BULB | P,

09471-06009

$3.99

6

BULB BUFFER

35716-15010

Unavailable

7

LENS WASHER

35727-03010

Unavailable

8

CROSS HEAD SCREW

02113-04558

Unavailable

9

CROSS HEAD SCREW

02111-04088

Unavailable

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

11

CROSS HEAD SCREW

02111-05128

Unavailable

11

SCREW This part replaces 02111-05108.

02112-05107

$1.49

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

NUT This part replaces 08311-11058.

08310-00057

$1.84

13

NUT This part replaces 08313-11057.

08313-1005A

$1.93

14

GROMMET

35728-18610

Unavailable

15

LUSHION

35765-15010

Unavailable

16

SPACER This part replaces 35766-15010.

35766-37110

$5.28

17

LOWER CUSHION

35765-22210

$3.84

18

SPACER This part replaces 35766-22210.

35766-37120

Unavailable

19

BOLT This part replaces 01111-06208.

01500-06207

$2.28

20

HEXAGON BOLT

01111-06258

Unavailable

21

WASHER (6.5X20X1.6) | x20x1.6x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

22

WASHER This part replaces 08322-21068.

08322-01067

$2.13

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

.NUT This part replaces 08311-11068.

08310-00067

$2.13

25

REAR REFLECTOR | NO.42899

35970-18602

Unavailable

26

REAR REFLECTOR

35970-22611

Unavailable

27

REFLECTOR RH SPACER

35995-18600

Unavailable

28

REFLECTOR LH SPACER

35996-18600

Unavailable

29

REFLECTOR WASHER

35997-18600

Unavailable

30

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
