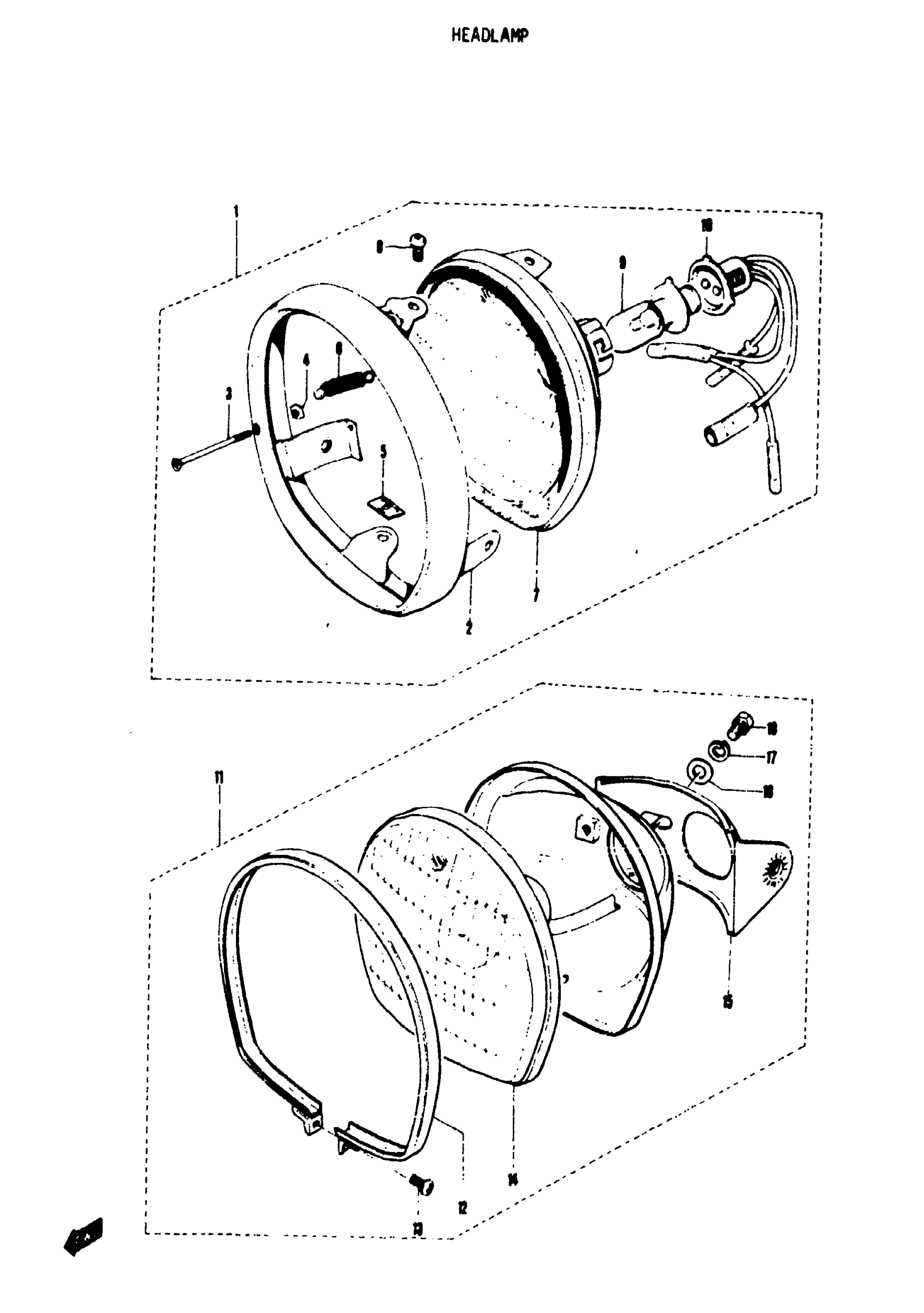

Suzuki AC50 (1971) HEADLAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 10 This part replaces 35100-05610.

35100-05610-999

Unavailable

2

HEADLAMP RIM

35111-05610

Unavailable

3

SCREW

35151-05610

Unavailable

4

NUT

35155-01321

Unavailable

5

LENS NUT

35135-05610

Unavailable

6

SPRING

35154-05610

Unavailable

7

LENS UNIT

35121-05610

Unavailable

8

LENS SCREW

35136-19610

Unavailable

9

BULB (6V,15/15W) | 15/15W This part replaces 09471-06003.

09471-06022

$3.65

10

BULB SOCKET

35171-05610

Unavailable

11

HEADLAMP ASS'Y | Includes Item(s) 12 - 17

35100-22610

Unavailable

12

HEADLAMP RIM

35127-22610

Unavailable

13

CROSS HEAD SCREW

02111-04108

Unavailable

14

LAMP UNIT

35121-22610

Unavailable

15

HEADLAMP BRACKET

35151-22610

Unavailable

16

WASHER This part replaces 08322-21068.

08322-01067

$2.13

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
