1971 Suzuki AC50 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1971 Suzuki AC50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

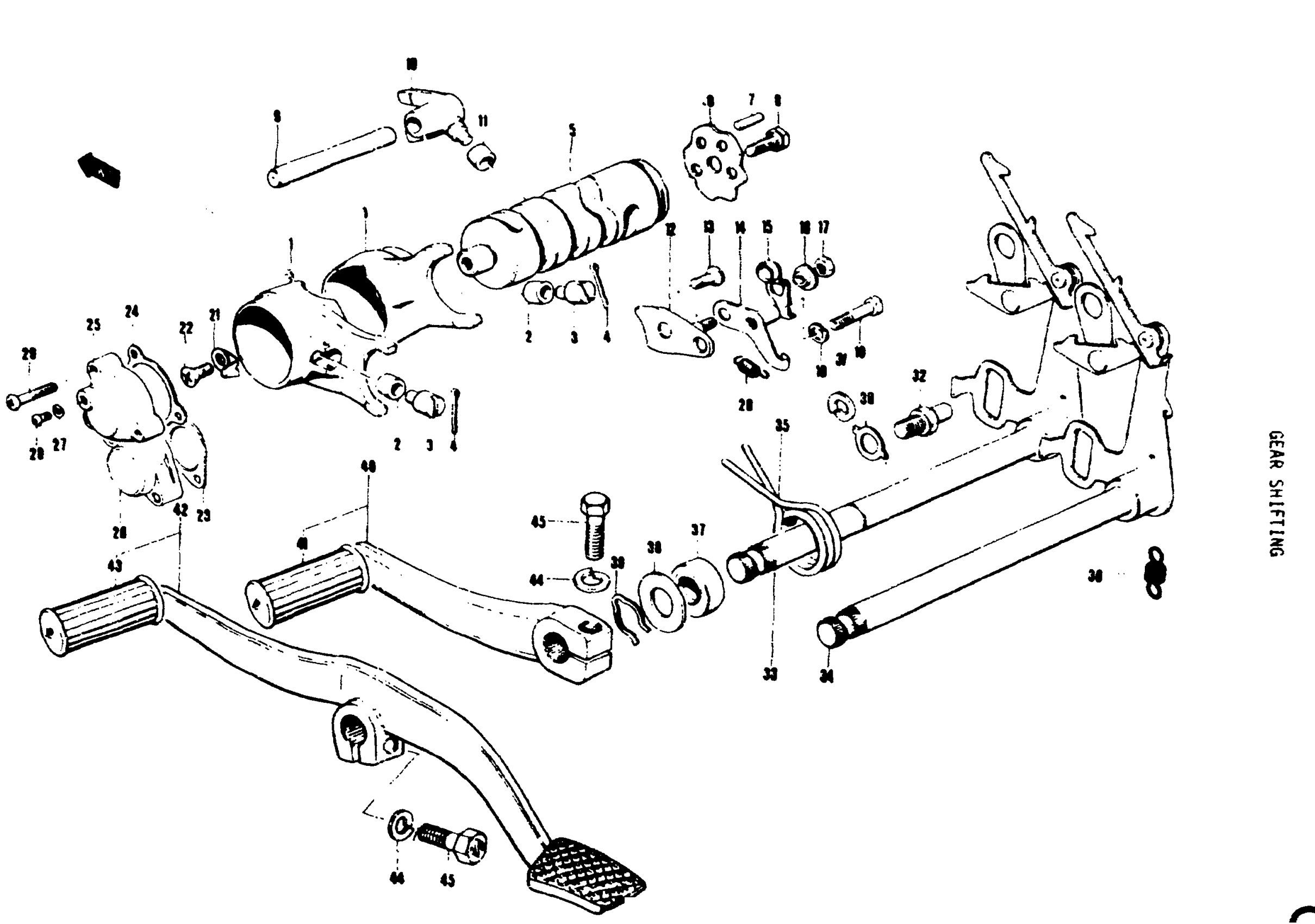

1971 Suzuki AC50 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 25211-05100.

25211-05101

2
Out of stock

2

ROLLER This part replaces 09180-06004.

09180-06086

2
Out of stock

3

GEAR SHIFTING FORK GUIDE

09209-10002

2
Out of stock

4

CITTER PIN This part replaces 04111-25188.

04111-2520A

2
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 25311-05600.

25311-05100

1
Out of stock

6

STOPPER PLATE

25381-05100

1
Out of stock

7

ROLLER (4X13.8) | 2

09261-04002

4
Out of stock

8

RETAINER BOLT

09111-06004

1
Out of stock

9

1

$6.22

In stock

10

HIGH SPEED GEAR SHIFTING FORK

25221-05100

1
Out of stock

11

ROLLER This part replaces 09180-06004.

09180-06086

1
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 25340-05100.

25340-05101

1
Out of stock

13

SCREW This part replaces 02121-06168.

02122-06167

1
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 25354-05100.

25354-05101

1
Out of stock

15

GEAR SHIFTING CAM STOPPER

25350-05100

1
Out of stock

16

SHIFTING CAM STOPPER SPACER

09180-06022

1
Out of stock

17

1

$1.82

In stock

18

1

$2.28

In stock

19

HEXAGON BOLT

01111-06308

—
Out of stock

20

GEAR SHIFTING CAM STOPPER SPR

09443-08005

1
Out of stock

21

1

$4.92

In stock

22

CROSS HEAD SCREW

02121-06128

—
Out of stock

23

NEUTRAL SWITCH GASKET

37712-26000

1
Out of stock

24

1

$2.50

In stock

25

NEUTRAL INDICATOR SWITCH

37721-26000

1
Out of stock

27

1

$2.10

In stock

28

CROSS HEAD SCREW

02111-03068

—
Out of stock

28

CROSS HEAD SCREW

02111-03058

—
Out of stock

29

2

$1.34

In stock

30

SHIFTING ARM STOPPER LOCK WAS | -TYPE-TYPE

09167-10001

1
Out of stock

31

1

$1.93

In stock

32

GEAR SHIFTING ARM STOPPER

25671-19000

1
Out of stock

33

GEAR SHIFTING SHAFT

25510-05100

1
Out of stock

34

GEAR SHIFTING SHAFT

25510-22200

1
Out of stock

35

GEAR SHIFTING SHAFT RETURN SP

09444-26005

1
Out of stock

36

1

$2.25

In stock

37

OIL SEAL (12X22X9) | 22x7 This part replaces 09285-12002.

09285-12006

1
Out of stock

39

CIRCLIP This part replaces 09384-12001.

08331-3112A

1
Out of stock

40

GEAR SHIFTING LEVER ASS'Y | Includes Item(s) 41

25600-05102

—
Out of stock

42

GEAR SHIFTING LEVER ASS'Y | Includes Item(s) 43

25600-01602

—
Out of stock

44

1

$2.28

In stock
