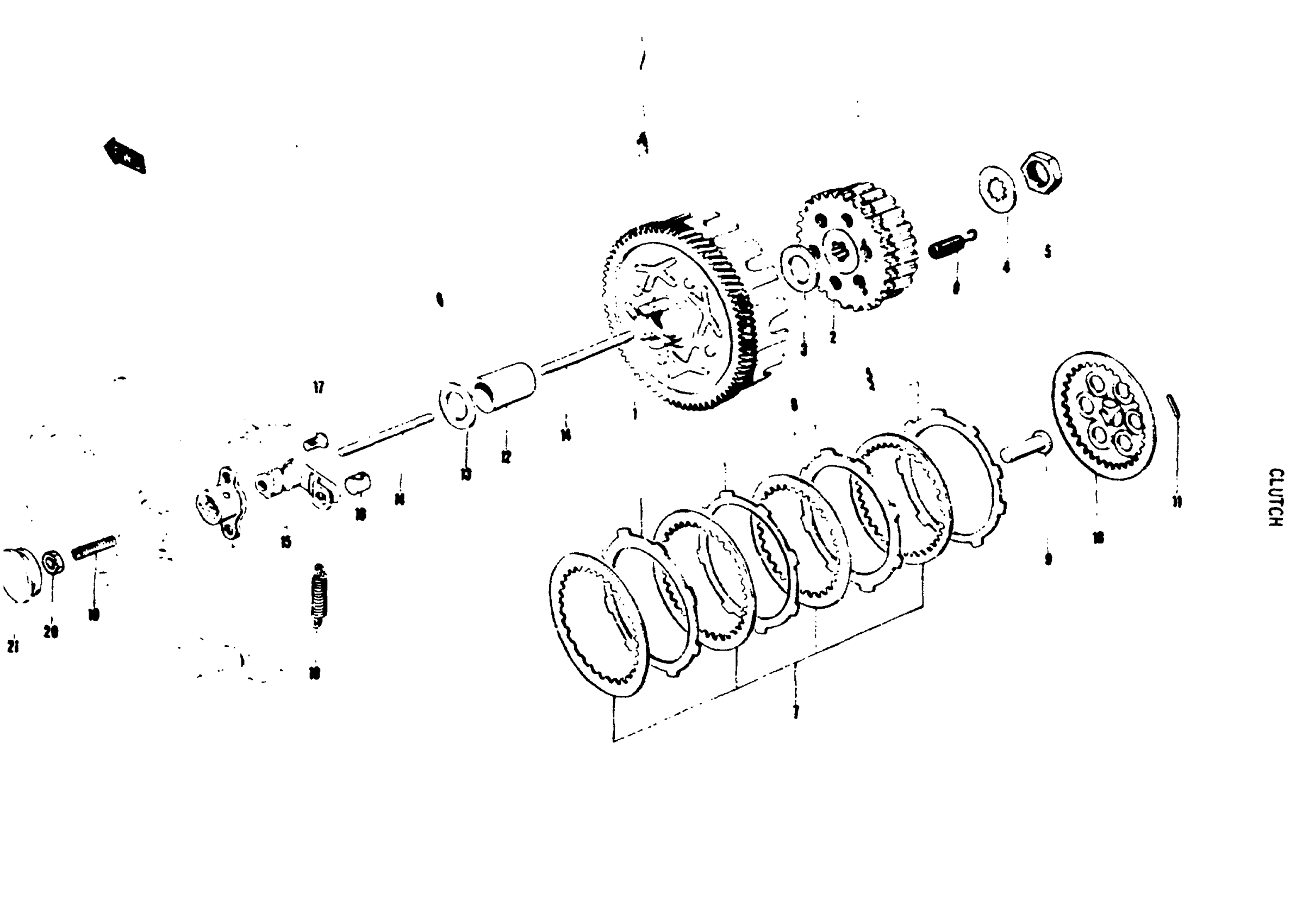

Find the part on the Clutch diagram for your 1971 Suzuki AC50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki AC50 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRIMARY DRIVEN GEAR ASS'Y

21200-05101

—
Out of stock

2

CLUTCH SLEEVE HUB

21411-03002

—
Out of stock

2

CLUTCH SLEEVE HUB

21411-22200

1
Out of stock

3

WASHER This part replaces 09160-17003.

08211-17282

1
Out of stock

4

SLEEVE HUB WASHER

09167-17002

1
Out of stock

5

NUT This part replaces 09140-16001.

09140-16005

1
Out of stock

6

CLUTCH SPRING

09443-12003

6
Out of stock

7

CLUTCH STEEL PLATE

21451-03000

4
Out of stock

7

CLUTCH STEEL PLATE

21451-23000

4
Out of stock

8

PLATE,CLUTCH DR This part replaces 21441-12000.

21441-42G00

4
Out of stock

9

CLUTCH RELEASE ROD

23121-03010

1
Out of stock

10

CLUTCH PRESSURE PLATE

21460-03001

—
Out of stock

10

CLUTCH PRESSURE PLATE

21460-23000

1
Out of stock

11

CLUTCH SPRING PIN | :19.8

09261-02001

6
Out of stock

12

PRIMARY DRIVEN GEAR SPACER | 5

09180-17025

1
Out of stock

13

WASHER, 2ND DRIVE GEAR This part replaces 09160-17001.

09181-17223

1
Out of stock

14

CLUTCH PUSH ROD | :90

23111-03001

2
Out of stock

15

CLUTCH RELEASE SCREW ASS'Y

23200-05030

1
Out of stock

16

CLUTCH RELEASE ARM HOOK

23222-07000

1
Out of stock

17

CROSS HEAD SCREW

02121-05128

—
Out of stock

18

CLUTCH RELEASE RETURN SPRING

09443-08001

1
Out of stock

19

SCREW This part replaces 09134-06001.

09134-06010

1
Out of stock

20

.NUT This part replaces 08311-31068.

08310-00067

1
Out of stock
