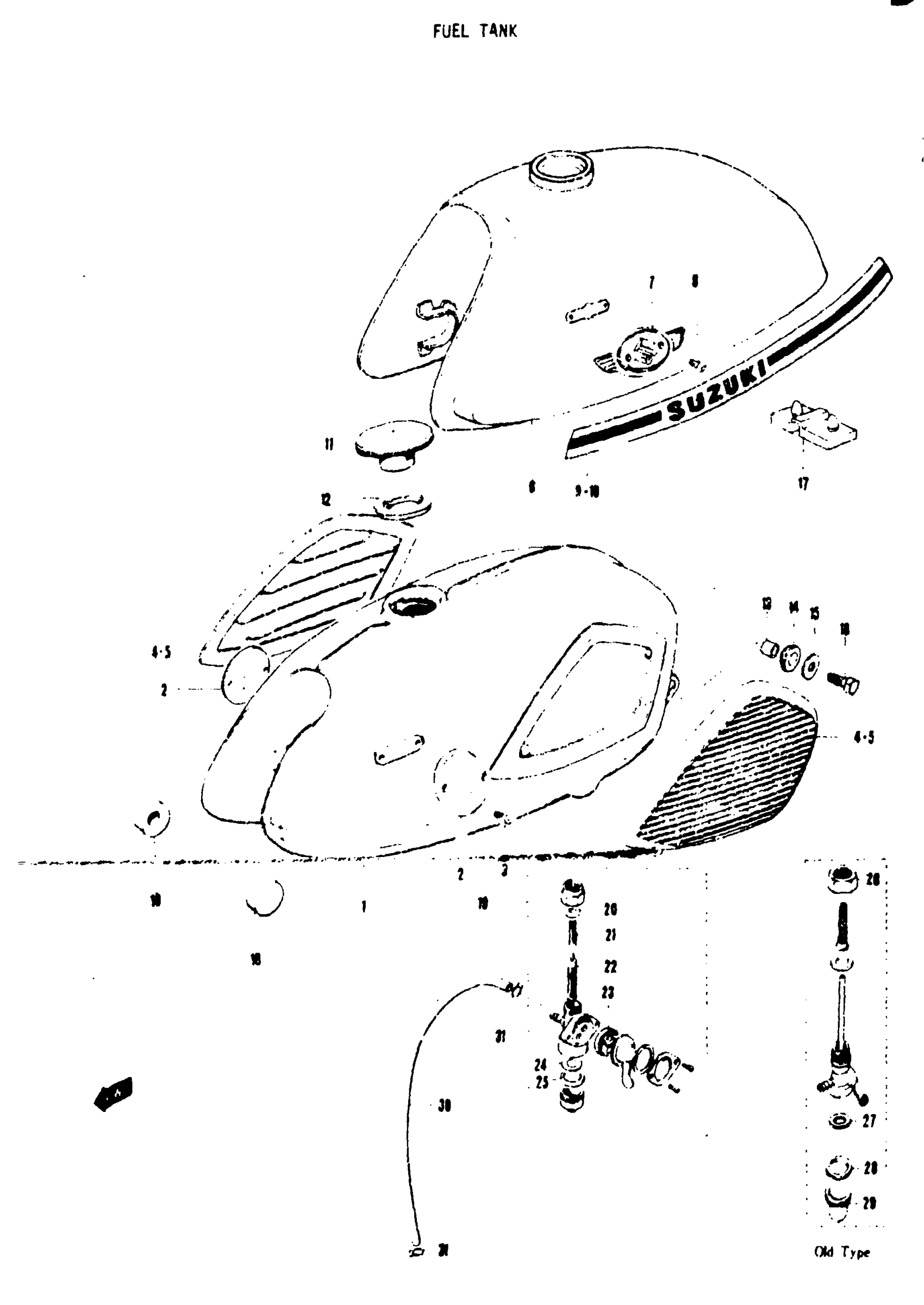

Suzuki AC50 (1971) FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

44110-05100-046

Unavailable

1

FUEL TANK

44110-05100-647

Unavailable

1

FUEL TANK

44110-05100-681

Unavailable

2

FUEL TANK EMBLEM

68110-11000

Unavailable

3

SCREW | REW, L:8 This part replaces 09125-03106.

09125-03104

Unavailable

4

RH KNEE GRIP

44251-05100

Unavailable

5

LH KNEE GRIP

44252-05100

Unavailable

6

FUEL TANK

44110-22200-613

Unavailable

7

FUEL TANK EMBLEM

68111-22200

Unavailable

8

TANK EMBLEM FITTING SCREW | CREW

09125-04108

Unavailable

9

RH STRIPING TAPE

68115-22200

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 68125-22200.

68100-22880

Unavailable

11

CAP FUEL TANK This part replaces 44210-12000.

44200-23810

$49.39

12

TANK CAP GASKET

44248-12000

Unavailable

13

SPACER (6.5X10X7) This part replaces 09180-06002.

09180-06283

$1.91

14

FUEL TANK REAR CUSHION

09320-09002

$1.98

15

WASHER, FRONT | 6 This part replaces 09160-06004.

09160-06134

$1.91

16

HEXAGON BOLT

01111-06168

Unavailable

17

FUEL TANK REAR CUSHION

09321-05006

Unavailable

18

FUEL TANK FRONT CUSHION

09329-10005

$2.11

19

COCK ASSY FUEL | Includes Item(s) 20 - 29 This part replaces 44300-05110.

44300-05115

Unavailable

20

PIPE GASKET

44348-01010

Unavailable

21

HOSE NET | 6

44362-05110

Unavailable

22

INLET FILTER NET

44330-01011

Unavailable

23

COCK GASKET | 6~

44341-05110

Unavailable

24

FILTER NET

44344-05110

Unavailable

25

CUP GASKET

44346-05110

Unavailable

26

JOINT NUT | TYPE ~E.NO.35905

44349-01020

Unavailable

27

FILTER NET | TYPE ~E.NO.35905

44344-01021

Unavailable

28

CUP GASKET | TYPE ~E.NO.35905

44346-01020

Unavailable

29

FILTER CUP | TYPE ~E.NO.35905

44347-01600

Unavailable

30

HOSE | TYPE ~E.NO.35905 This part replaces 09343-05021.

09352-50005-00B

$13.93

30

HOSE This part replaces 09343-05016.

09352-50005-00B

$13.93
