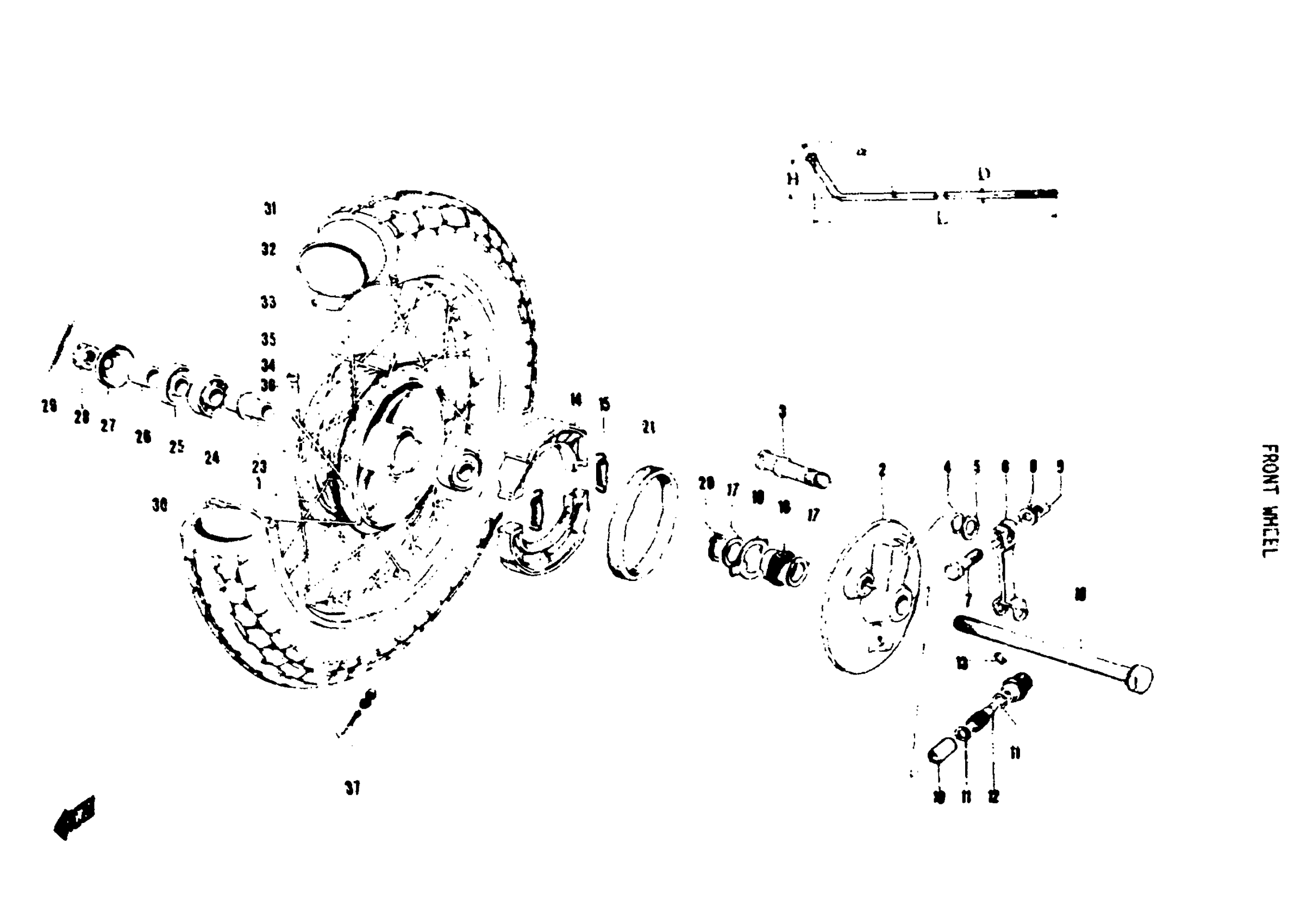

Suzuki AC50 (1971) FRONT WHEEL Diagram

#

Description
Price

0

FRONT HUB ASS'Y | Includes Item(s) 1 - 29

54100-03611

Unavailable

1

FRONT HUB DRUM

54110-01004

Unavailable

2

FRONT HUB PANEL

54210-03004

Unavailable

3

BRAKE CAM SHAFT

54441-01000

Unavailable

4

DUST SEAL | x2.4

09280-12001

$2.90

5

DUST SEAL WASHER

09160-12011

$1.54

6

BRAKE CAM LEVER

54451-03001

Unavailable

7

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

SPEEDOMETER DRIVEN GEAR OUTE

54632-01001

$12.80

11

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

12

NO DESCRIPTION AVAILABLE This part replaces 54621-03000.

54621-03001

Unavailable

13

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

14

BRAKE SHOE

54410-01002

Unavailable

15

SPRING This part replaces 09443-07001.

09443-07025

$2.08

16

FRONT AXLE

54710-03601

Unavailable

17

THRUST WASHER

09160-16005

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 54611-03000.

54611-03002

Unavailable

19

SPEEDOMETER DRIVE GEAR DRIVE

54661-03000

Unavailable

20

CIRCLIP This part replaces 08331-11159.

08331-3115A

$2.25

21

OIL SEAL This part replaces 09285-43001.

09283-43004

$14.03

22

BEARING | ARING This part replaces 08143-63000.

08143-6300B

$15.33

23

SPACER

54730-01000

Unavailable

24

BEARING

08113-62000

$13.63

25

OIL SEAL (15X31X5)

09284-15001

$4.73

26

FRONT AXLE SPACER | 4

09180-10003

Unavailable

27

HUB DRUM DUST SEAL

54892-01000

Unavailable

28

NUT This part replaces 08314-11108.

08314-3110A

$1.99

29

COTTER PIN

04111-20258

Unavailable

30

RIM WHEEL This part replaces 55311-01020.

55311-01021

Unavailable

31

FRONT TIRE

55100-01010

Unavailable

32

INNER TUBE

55200-01600

Unavailable

33

PROTECTOR, INNER TUBE This part replaces 55261-01010.

55261-02B40

$6.88

33

SPOKE SET FR | Includes Item(s) 34 - 36 This part replaces 55301-01812.

55320-01012

$36.58

34

INNER SPOKE | 0.5 A:104, H:5.8

55321-01021

Unavailable

35

OUTER SPOKE | 60 A:87.5, H:7.1

55322-01021

Unavailable

36

SPOKE NIPPLE

55325-01020

Unavailable
