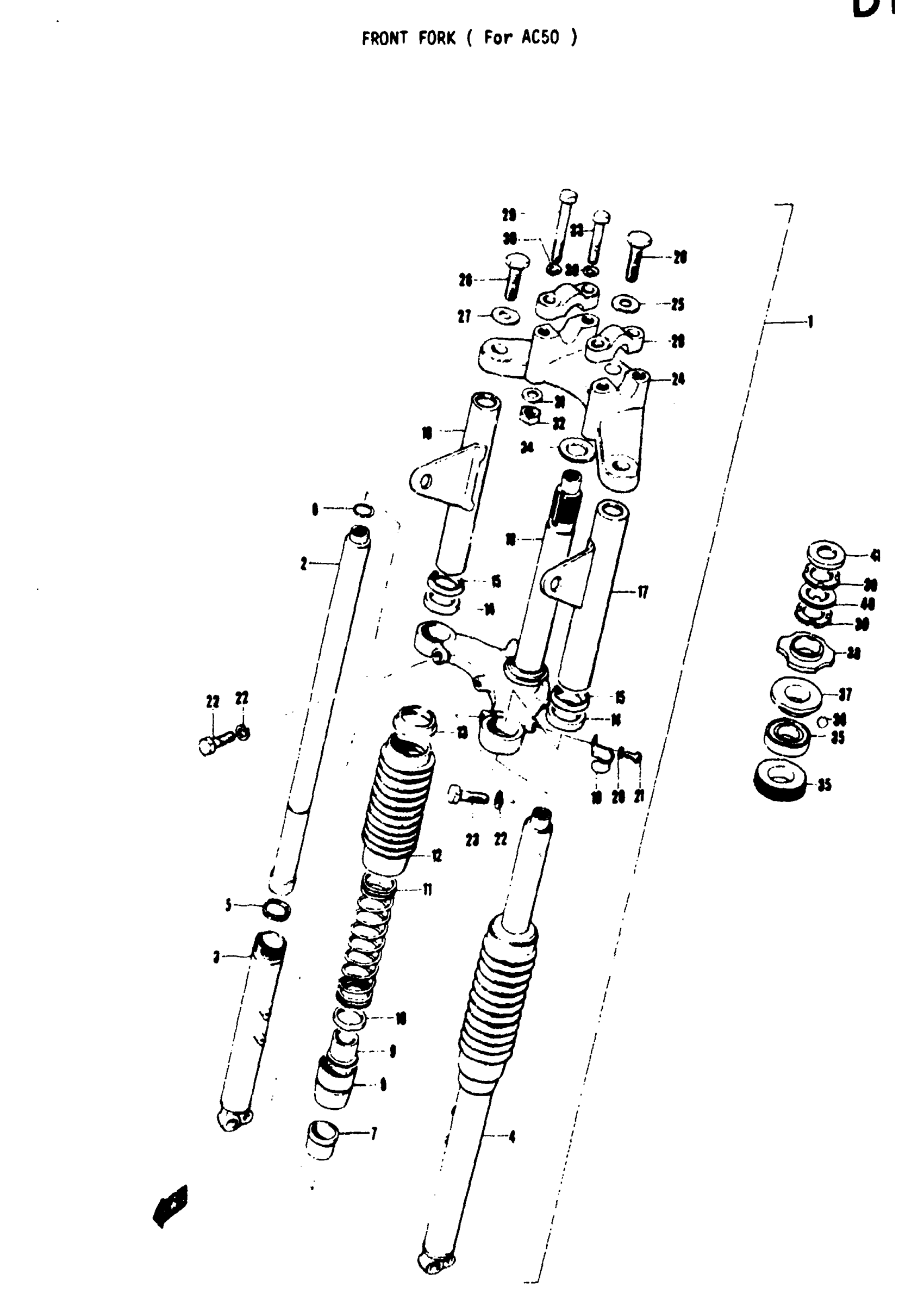

Suzuki AC50 (1971) FRONT FORK ( FOR AC50 ) Diagram

#

Description
Price

1

FRONT FORK ASS'Y | Includes Item(s) 2 - 34

51100-22600-019

Unavailable

2

INNER TUBE

51110-22010

Unavailable

3

RH OUTER TUBE

51130-22210

Unavailable

4

LH OUTER TUBE

51140-22210

Unavailable

5

OIL SEAL LOWER O RING

51154-12011

Unavailable

6

O RING This part replaces 51181-22010.

51181-22012

$3.73

7

INNER TUBE GUIDE | 24

51152-03011

Unavailable

8

GUIDE HOUSING

51150-12010

Unavailable

9

DUST SEAL

51173-01211

Unavailable

10

SPRING GUIDE

51573-03110

Unavailable

11

FORK SPRING

51171-20010

Unavailable

12

SPRING COVER BOOT

51571-03110

Unavailable

13

SPRING GUIDE

51172-20010

Unavailable

14

HEADLAMP BRACKET CUSHION

51553-01211

Unavailable

15

HEADLAMP BRACKET SEAT

51551-20610

Unavailable

16

RH FORK COVER

51530-22600

Unavailable

17

LH FORK COVER

51540-22600

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 51410-22010.

51410-22012

Unavailable

19

CABLE CLIP

51453-05110

Unavailable

20

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

21

CROSS HEAD SCREW

02111-06108

Unavailable

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

BOLT | L:28 This part replaces 51451-03010.

01500-1030A

$3.16

24

STEERING STEM HEAD

51311-22210-019

Unavailable

25

STEM HEAD UPPER WASHER

51356-22011

Unavailable

26

BOLT This part replaces 51351-20010.

51351-29400

$31.22

27

STEERING STEM HEAD WASHER

51356-07010

$6.65

28

HANDLE HOLDER

56211-12111-019

Unavailable

29

HANDLE HOLDER FRONT BOLT

56231-20010

Unavailable

30

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

31

WASHER This part replaces 08322-21088.

08322-01087

$2.13

32

NUT This part replaces 08312-11088.

08310-00087

$2.13

33

BOLT This part replaces 01221-08307.

01204-08307

$1.99

34

STEM HEAD LOWER WASHER

51357-22010

Unavailable

35

STEERING INNER RACE

51611-20000

Unavailable

36

STEEL BALL

06111-06004

Unavailable

37

RACE, STEERING OUTER UPPER This part replaces 51621-05000.

51621-25000

$12.40

38

DUST SEAL This part replaces 51643-05000.

51643-06001

Unavailable

39

STEERING STEM NUT

51631-05000

Unavailable

40

STEERING LOCK WASHER

09166-24001

Unavailable
