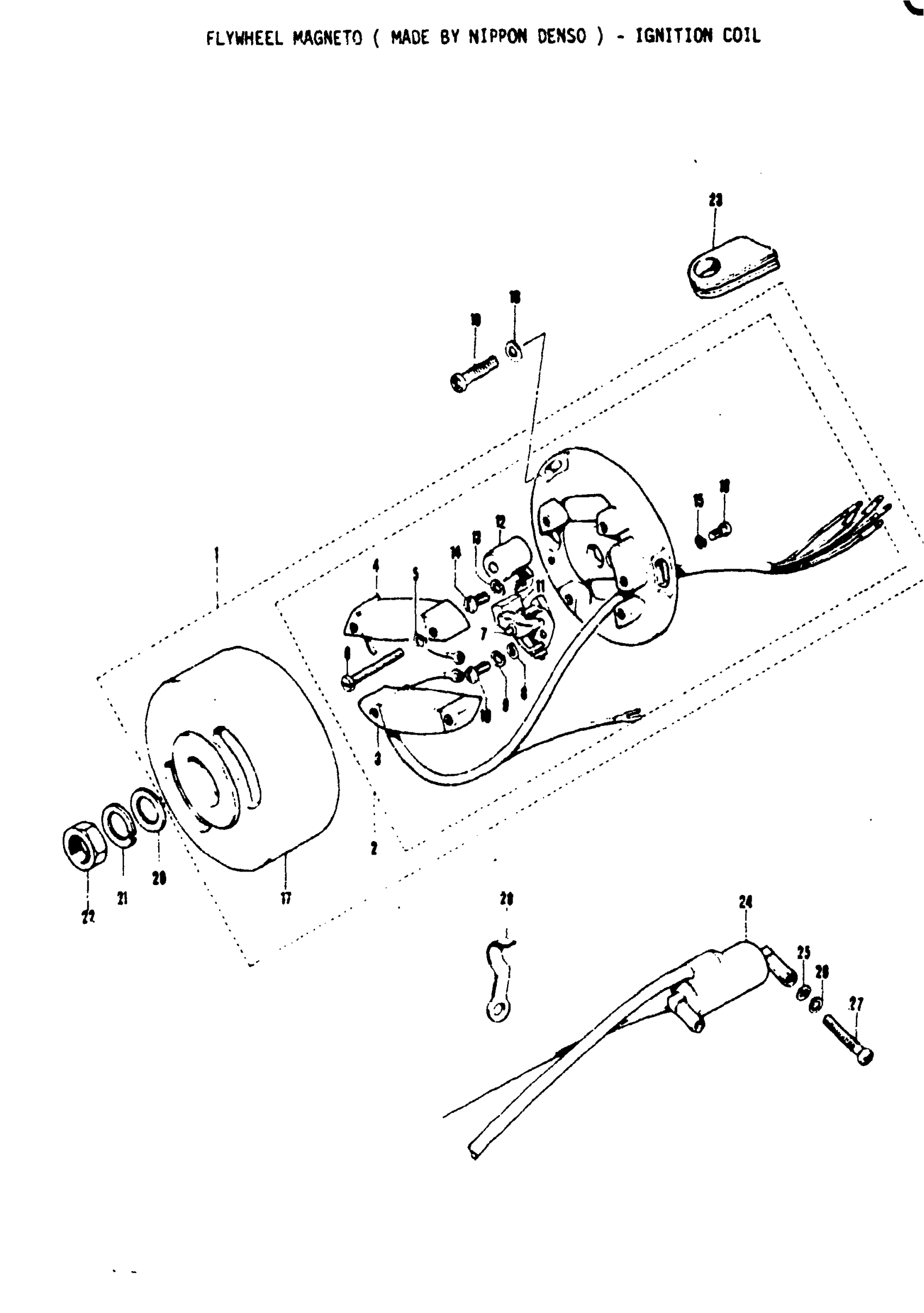

Suzuki AC50 (1971) FLYWHEEL MAGNETO ( MADE BY NIPPON DENSO ) - IGNITION COIL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 17 This part replaces 32100-22010.

32100-43010

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 32101-22010.

32101-22011

Unavailable

3

LIGHTING COIL

32120-03110

Unavailable

4

COIL, PRIMARY This part replaces 32140-03110.

32140-26612

Unavailable

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

6

CROSS READ SCREW

02111-04258

Unavailable

7

CONTACT POINT This part replaces 32240-28010.

32240-43012

$38.45

8

WASHER This part replaces 08322-21048.

08322-01047

$1.86

9

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

10

CROSS HEAD SCREW

02111-04108

Unavailable

11

OLI FELT

32338-03110

Unavailable

12

CONDENSER

32341-03110

Unavailable

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

CROSS HEAD SCREW

02111-04108

Unavailable

15

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

16

SLOTTED HEAD SCREW

02311-04068

Unavailable

17

FLYWHEEL ROTOR

32102-22010

Unavailable

18

WASHER This part replaces 08322-21058.

08322-01057

$2.13

19

SCREW This part replaces 02112-05168.

02112-05167

$1.97

20

WASHER This part replaces 08322-11108.

08322-01107

$2.15

21

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

22

NUT This part replaces 08311-11108.

08310-00107

$2.19

23

MAGNETO RUSING

09309-09003

Unavailable

24

IGNITION COIL A This part replaces 33410-19020.

33410-22221

Unavailable

24

IGNITION COIL A This part replaces 33410-22220.

33410-22221

Unavailable

25

WASHER This part replaces 08322-21058.

08322-01057

$2.13

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

27

CROSS HEAD SCREW

02111-05128

Unavailable
