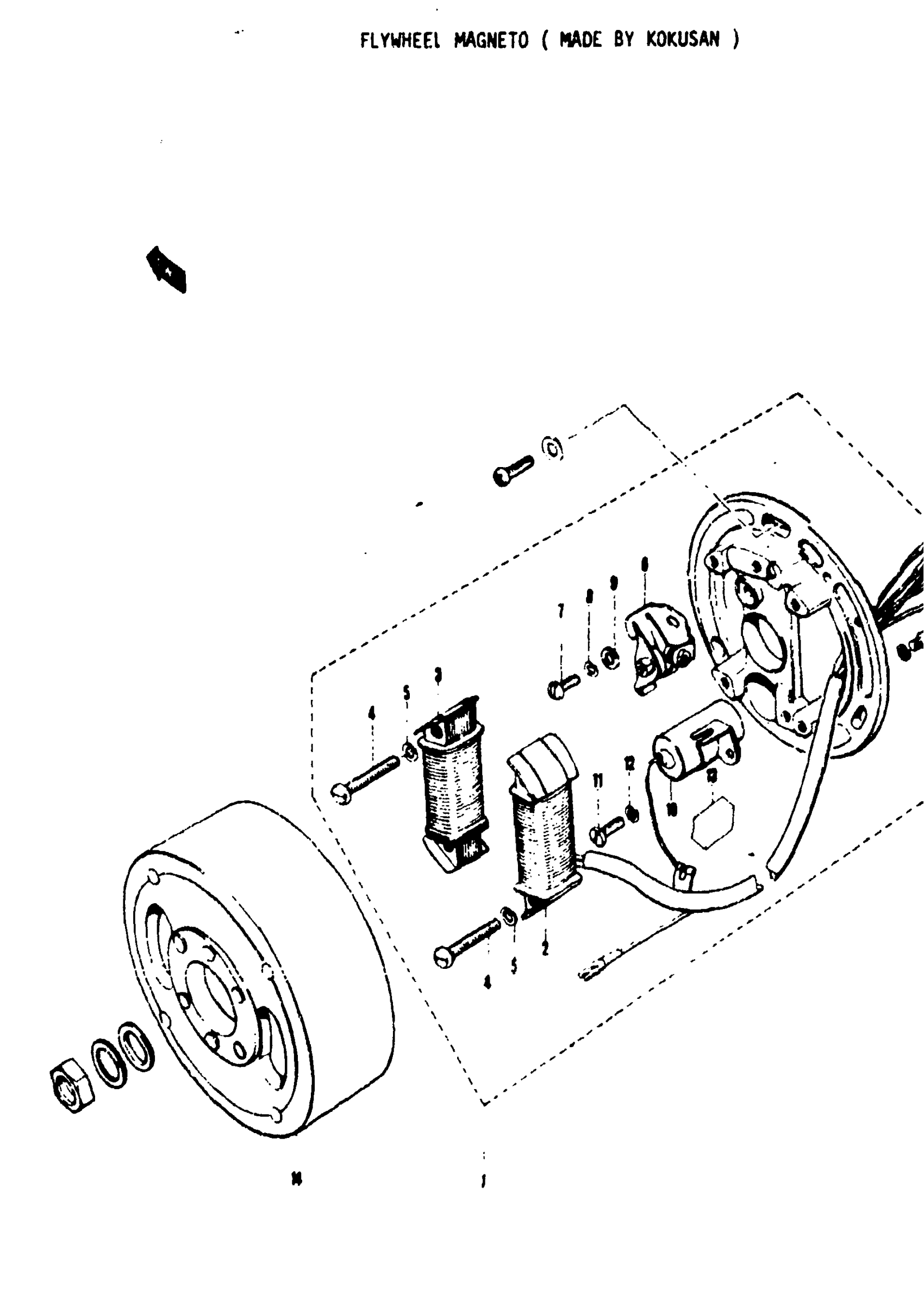

Suzuki AC50 (1971) FLYWHEEL MAGNETO ( MADE BY KOKUSAN ) Diagram

#

Description

Price

1

STATOR ASS'Y | Includes Item(s) 2 - 13

32101-22020

Unavailable

2

LIGHTING COIL

32120-03021

Unavailable

3

PRIMARY COIL

32140-03020

Unavailable

4

CROSS HEAD SCREW

02111-04258

Unavailable

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

6

CONTACT POINT ASS'Y

32240-03120

Unavailable

7

SLOTTED HEAD SCREW

02311-04128

Unavailable

8

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

9

WASHER This part replaces 08322-21048.

08322-01047

$1.86

10

CONDENSER

32341-03020

Unavailable

11

SCREW This part replaces 02111-05108.

02112-05107

$1.49

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

OIL FELT

32338-03020

Unavailable
