1971 Suzuki AC50 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1971 Suzuki AC50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

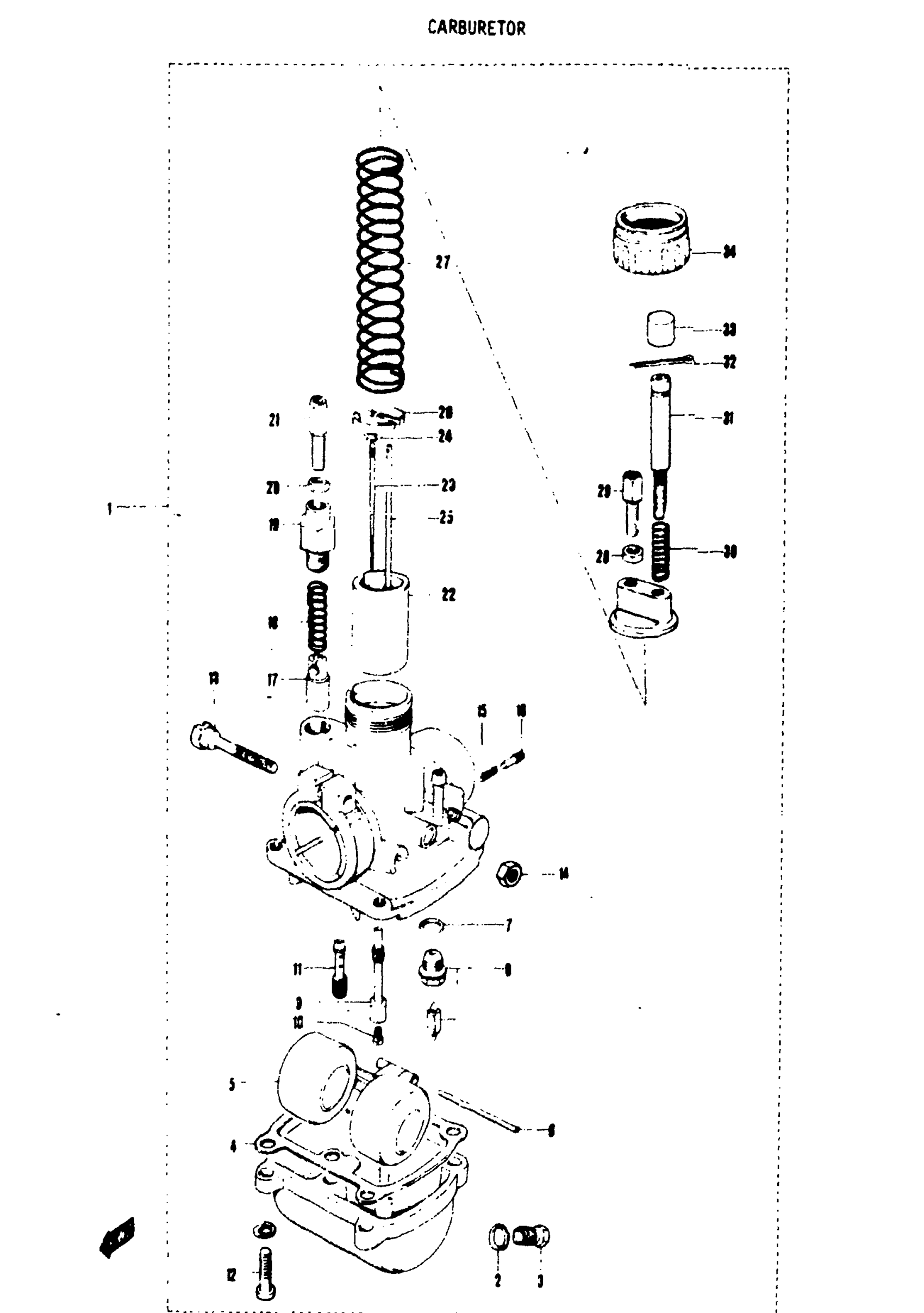

1971 Suzuki AC50 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASS'Y

13200-05620

—
Out of stock

1

CARBURETOR ASS'Y | Includes Item(s) 2 - 33

13200-22211

1
Out of stock

2

CRAIN PLUG GASKET

13249-05010

1
Out of stock

3

DRAIN PLUG

13247-05010

1
Out of stock

4

FLOAT CHAMBER GASKET

13251-01011

1
Out of stock

5

FLOAT

13252-01010

—
Out of stock

6

.PIN, FLOAT

13254-01010

1

$4.80

In stock

7

VALVE SEAT GASKET

13392-01010

1
Out of stock

8

VALVE,NEEDLE This part replaces 13370-13110.

13370-03310

1
Out of stock

9

NEEDLE JET

09494-00035

1
Out of stock

9

JET, NEEDLE This part replaces 09494-00063.

09494-00038

1
Out of stock

10

NO DESCRIPTION AVAILABLE | , OPT, OPT This part replaces 09491-75005.

09491-75009

1
Out of stock

10

NO DESCRIPTION AVAILABLE | , OPT, OPT This part replaces 09491-70005.

09491-70010

1
Out of stock

10

JET (#67.5) | .5, OPT.5, OPT This part replaces 09491-67001.

09491-67003

1
Out of stock

10

MAIN JET | T

09491-62002

1
Out of stock

10

MAIN JET

09491-65003

1
Out of stock

10

MAIN JET | T

09491-72005

—
Out of stock

10

NO DESCRIPTION AVAILABLE This part replaces 09491-75005.

09491-75009

1
Out of stock

11

JET, PILOT (17.5) This part replaces 09492-17002.

09492-17006

1
Out of stock

11

JET, PILOT (20) This part replaces 09492-20002.

09492-20008

1
Out of stock

11

1

$9.42

In stock

11

JET, PILOT (30) This part replaces 09492-30003.

09492-30006

1
Out of stock

12

SCREW This part replaces 13248-05110.

02112-0420A

4
Out of stock

13

CARBURETOR CLIP BOLT

13323-05110

—
Out of stock

14

CARBURETOR CLIP NUT

13324-05110

—
Out of stock

15

PILOT AIR SCREW SPRING

13268-01010

1
Out of stock

16

PILOT AIR ADJUSTING SCREW

13269-01010

1
Out of stock

17

STARTER PLUNGER

13411-01010

1
Out of stock

18

PLUNGER SPRING

13417-01010

1

$4.75

In stock

19

STARTER PLUNGER This part replaces 13418-03110.

13418-63110

1
Out of stock

20

NUT

13661-03010

1
Out of stock

21

ADJUSTER This part replaces 13577-03010.

13577-48110

1
Out of stock

22

VALVE, THROTTLE This part replaces 13551-05111.

13551-26010

1
Out of stock

23

NEEDLE, JET This part replaces 13383-01010.

13383-04110

1
Out of stock

23

JET NEEDLE

13383-19010

1
Out of stock

24

1

$4.76

In stock

24

E RING This part replaces 13394-12110.

13394-40D00

1
Out of stock

25

THROTTLE VALVE STOP ROD

13296-05010

1
Out of stock

26

PLATE This part replaces 13581-01010.

13581-07910

1
Out of stock

27

VALVE SPRING

13573-05010

1
Out of stock

28

LOCK NUT

13661-03010

1
Out of stock

29

ADJUSTER This part replaces 13577-03010.

13577-48110

1
Out of stock

30

STOP SCREW SPRING

13268-05010

1
Out of stock

31

THROTTLE VALVE STOP SCREW

13267-05010

1
Out of stock

32

COTTER PIN

04111-12088

—
Out of stock

33

CAP

13688-08010

1
Out of stock
