1971 Suzuki AC50 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1971 Suzuki AC50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

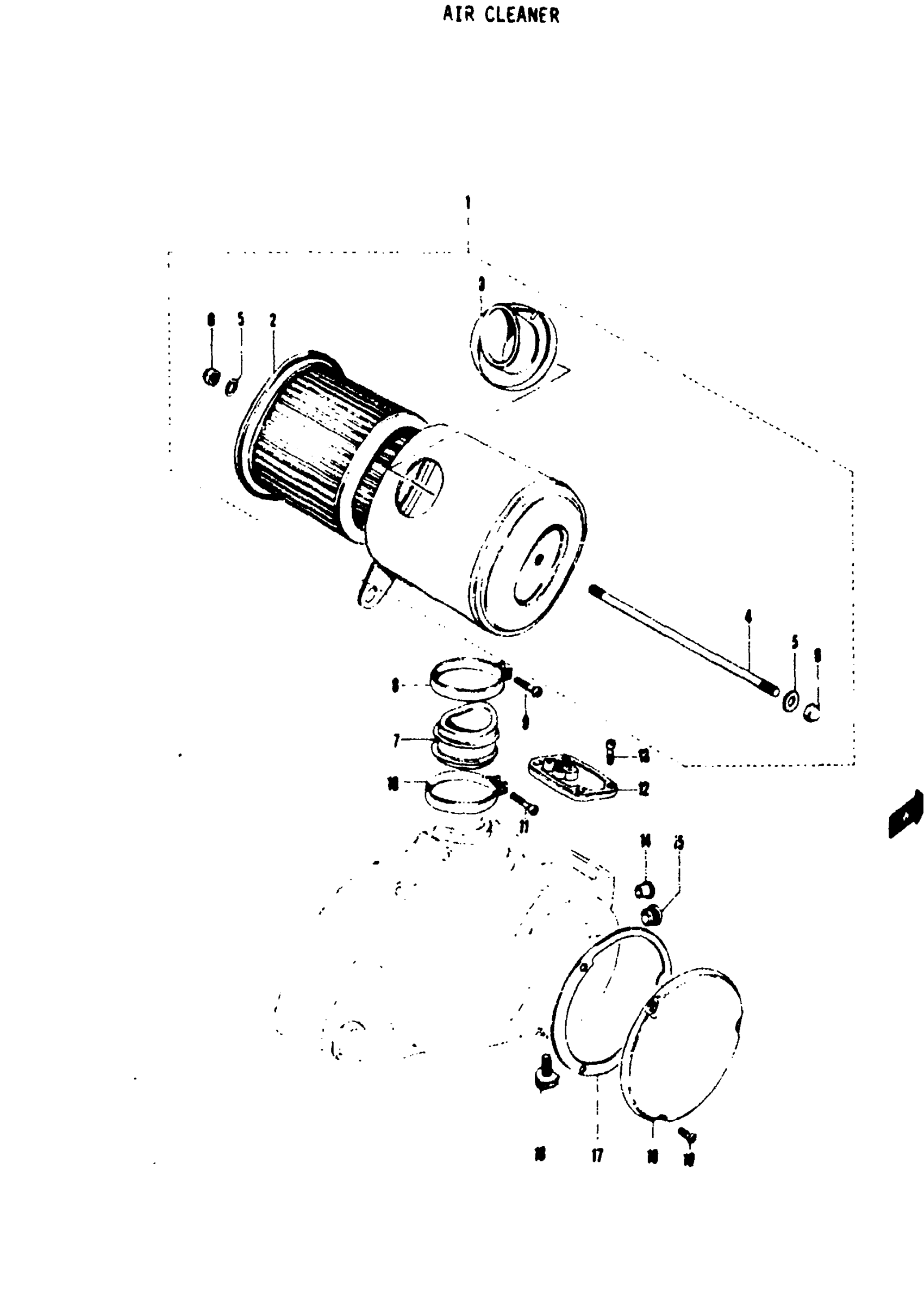

1971 Suzuki AC50 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AIR CLEANER ASS'Y

13700-05110

—
Out of stock

1

AIR CLEANER ASS'Y | Includes Item(s) 2 - 6

13700-22310-019

—
Out of stock

2

ELEMENT

13780-05110

1
Out of stock

3

INLET HOSE

13721-05012

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 13709-05010.

13710-05010

1
Out of stock

5

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

6

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

2
Out of stock

7

AIR CLEANER HOSE

13881-05001

—
Out of stock

8

AIR CLEANER HOSE UPPER CLAMP

09402-00111

—
Out of stock

9

SCREW This part replaces 02111-04208.

02112-0420A

1
Out of stock

10

AIR CLEANER HOSE LOWER CLAMP

09402-00112

—
Out of stock

11

SCREW This part replaces 02111-04208.

02112-0420A

1
Out of stock

12

CARBURETOR DUST SEAL COVER

11440-05004

—
Out of stock

13

CARBARETOR TOP COVER SCREW

09125-05102

4
Out of stock

14

PLUG(OD:19) This part replaces 09250-14002.

09250-14010

1
Out of stock

15

CARBURETOR INSPECTION HOLE PL | O. 04205O. 04205

09250-10001

1
Out of stock

16

CARBARETOR CHAMBER DRAIN HOSE

11910-06000

1
Out of stock

17

CARBURETOR COVER GASKET

11492-05002

1
Out of stock

18

CARBURETOR COVER

11383-05000

—
Out of stock

19

CARBURETOR INSPECTION CAP SCR

09125-05102

3
Out of stock
