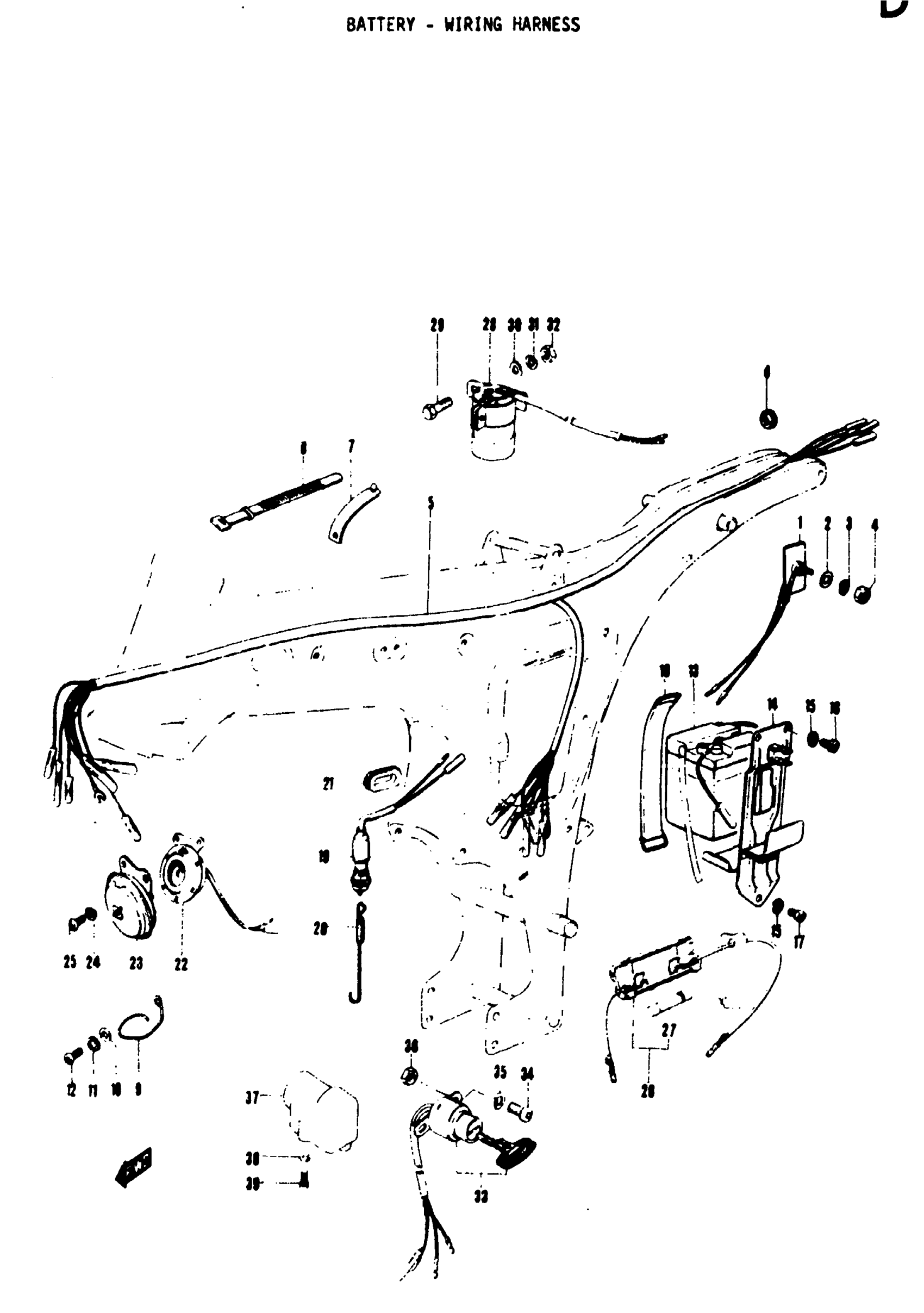

Suzuki AC50 (1971) BATTERY - WIRING HARNESS Diagram

#

Description
Price

1

DIODE This part replaces 32800-01020.

32800-16A00

$23.07

2

WASHER This part replaces 08322-21058.

08322-01057

$2.13

3

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

4

NUT This part replaces 08311-11058.

08310-00057

$1.84

5

MAIN WIRING HARNESS

36610-05101

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 36610-22610.

36610-22011

Unavailable

6

WIRING HARNESS GROMMET

09308-10001

Unavailable

7

WIRING HARNESS BAND

33881-22200

Unavailable

8

WIRING HARNESS CLAMP

51455-22200

Unavailable

9

WIRING HARNESS CLAMP

09410-00023

Unavailable

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

SCREW This part replaces 02111-06128.

02112-06127

$1.84

13

BATTERY ASS'Y

33610-03010

Unavailable

14

HOLDER,BATTERY This part replaces 41540-05100.

41540-05102

Unavailable

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

17

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

17

BATTERY HOLDER SCREW

09100-06048

Unavailable

18

BATTERY HOLDER BAND

09462-00007

$4.11

19

BRAKE LAMP SWITCH ASS'Y

37740-11010

Unavailable

20

BRAKE LAMP SWITCH SPRING

09443-06019

$3.42

20

BRAKE LAMP SWITCH SPRING

09443-06005

$3.37

21

BRAKE LAMP SWITCH GROMMET

09308-12003

Unavailable

22

HORN

38500-01030

Unavailable

23

HORN

38500-01031

Unavailable

23

HORN

38500-22031

Unavailable

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

SCREW This part replaces 02111-06128.

02112-06127

$1.84

25

HEXAGON BOLT

01111-08128

Unavailable

26

FUSE CASE ASSY | Includes Item(s) 27 This part replaces 36740-15010.

36740-15011

$9.38

27

FUSE

09481-15001

$2.06

28

TURN SIGNAL RELAY | 9~, 6.4V 85C/M 17W x 2+1.7

38610-05611

Unavailable

29

HEXAGON BOLT

01111-06128

Unavailable

30

WASHER This part replaces 08322-21068.

08322-01067

$2.13

31

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

32

.NUT This part replaces 08311-11068.

08310-00067

$2.13

33

IGNITION SWITCH ASS'Y

37110-05110

Unavailable

33

IGNITION SWITCH ASS'Y

37110-22611

Unavailable

34

CROSS HEAD SCREW

02111-06088

Unavailable

34

SCREW This part replaces 02111-06128.

02112-06127

$1.84

35

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

36

.NUT This part replaces 08311-11068.

08310-00067

$2.13

37

STEERING LOCK ASS'Y

51900-19010

Unavailable

38

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
