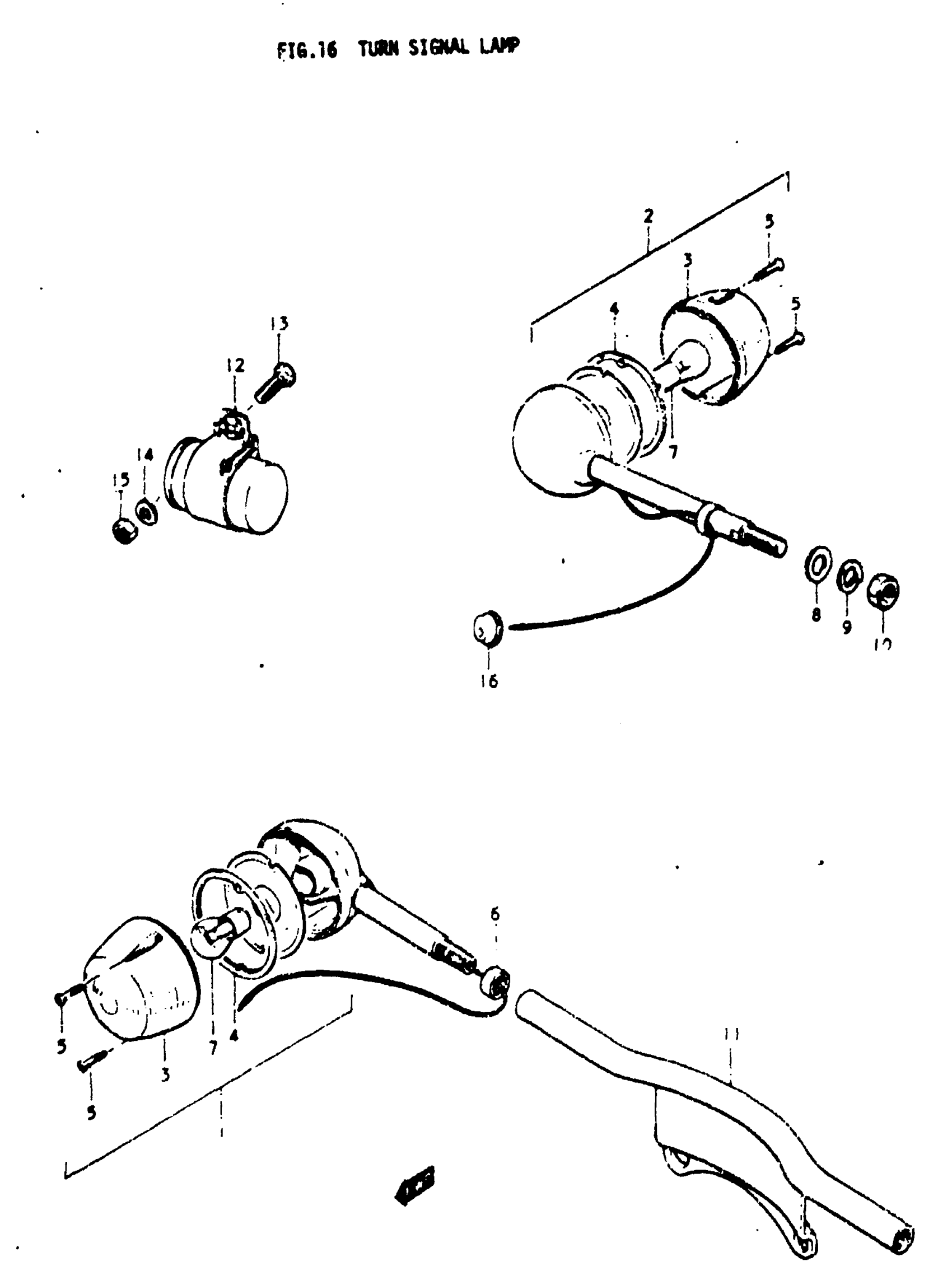

Suzuki A100 (1977) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TURN SIGNAL FRONT | A,B This part replaces 35601-27630.

35601-27630-999

Unavailable

2

LAMP ASSY, REAR TURN SIGNAL | A,B; Includes Item(s) 3 - 7

35603-23610

Unavailable

3

LENS | A,B

35612-12611

$12.50

4

GASKET | A,B

35613-03610

$13.34

5

SCREW | A,B This part replaces 02133-03167.

02132-03167

$1.49

6

NUT | A,B This part replaces 08312-31108.

08310-00107

$2.19

7

BULB | A,B

09471-06011

Unavailable

8

WASHER | A,B This part replaces 08322-11108.

08322-01107

$2.15

9

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

$1.84

10

NUT | A,B This part replaces 08312-31088.

08310-00087

$2.13

11

BRACKET, TURN SIGNAL LAMP | A,B

51960-23610-00U

Unavailable

11

BRACKET, TURN SIGNAL LAMP | B; B MODEL

51960-23610-03H

Unavailable

12

RELAY, TURN SIGNAL | A,B

38610-25610

Unavailable

13

BOLT, CANISTER | A,B This part replaces 01112-06168.

01500-06167

$1.97

14

WASHER | A,B This part replaces 08322-21068.

08322-01067

$2.13

15

.NUT | A,B This part replaces 08311-11068.

08310-00067

$2.13

16

GROMMET | A,B

35661-22610

Unavailable
