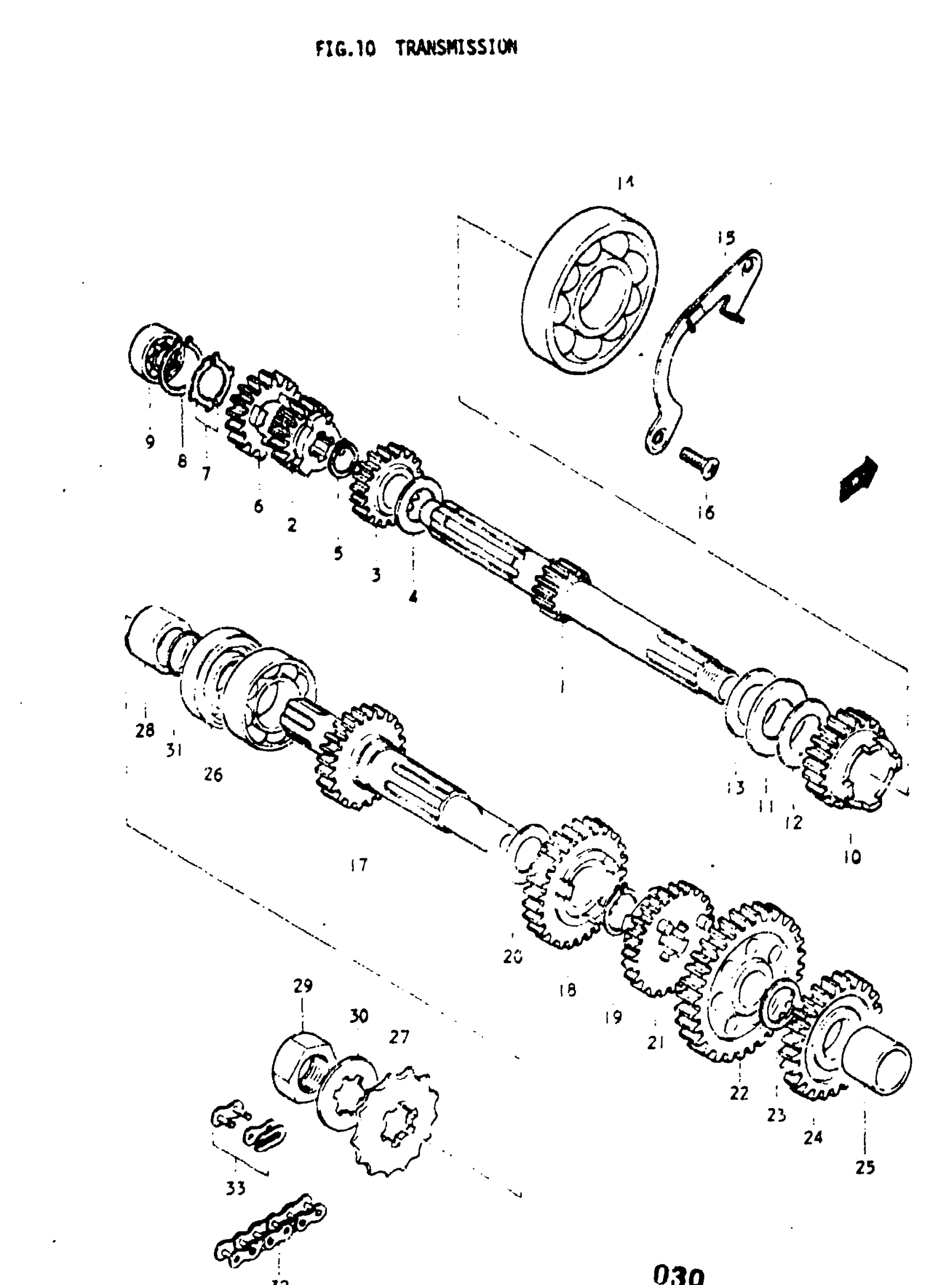

Suzuki A100 (1977) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B; NT:11 This part replaces 24121-12001.

24121-12002

Unavailable

2

NO DESCRIPTION AVAILABLE | A,B; NT:15 This part replaces 24221-07000.

24221-23001

Unavailable

3

NO DESCRIPTION AVAILABLE | A,B; NT:18 This part replaces 24231-07000.

24231-23011

Unavailable

4

WASHER | A,B; 17x24x1

08211-17241

$2.54

5

CIRCLIP | A,B

09380-17001

$1.98

6

NO DESCRIPTION AVAILABLE | A,B; NT:20 This part replaces 24241-07000.

24241-07003

Unavailable

7

RING, 4TH DRIVE GEAR | A,B

09399-14001

Unavailable

8

CIRCLIP | A,B

09380-26001

Unavailable

9

BEARING, COUNTERSHAFT LH | A,B

09262-12001

$18.47

10

NO DESCRIPTION AVAILABLE | A,B; NT:17 This part replaces 26280-03002.

26280-03003

Unavailable

11

BEARING | A,B

09263-21006

$15.48

12

WASHER | A,B

09181-21001

Unavailable

13

WASHER | A,B; 21x31x0.8

09160-21007

$2.92

14

BEARING | A,B This part replaces 09262-30002.

09262-30003

Unavailable

15

PLATE, COUNTERSHAFT BEARING | A,B

24741-25000

Unavailable

16

SCREW | A,B This part replaces 02121-06108.

02122-0610A

$1.68

17

DRIVESHAFT | A,B; NT:22

24131-07000

Unavailable

18

NO DESCRIPTION AVAILABLE | A,B; NT:28 This part replaces 24321-07003.

24321-23001

Unavailable

19

CIRCLIP | A,B This part replaces 09380-20003.

09380-20007

$2.43

20

SHIM (20X28X1) | A,B; 20x78x1 This part replaces 08211-20281.

09181-20167

$2.62

21

GEAR,3RD DRIVEN | A,B; NT:25 This part replaces 24331-07001.

24331-12031

Unavailable

22

NO DESCRIPTION AVAILABLE | A,B; NT:32 This part replaces 24310-07001.

24310-12021

Unavailable

23

WASHER | A,B; 15x30x1 This part replaces 09160-15016.

08211-15301

$2.45

24

GEAR,KICK START | A,B; NT:26 This part replaces 26260-23001.

26260-23010

Unavailable

25

BUSHING, DRIVESHAFT | A,B

09303-15004

$5.07

26

OIL SEAL | A,B

09283-25003

$6.94

27

SPROCKET,ENGINE | A,B; NT:14 This part replaces 27511-20700.

27511-13700

Unavailable

28

SPACER | A,B; 20x25x15.5

09180-20016

Unavailable

29

NUT | A,B

09140-20001

$3.37

30

LOCK WASHER | A,B This part replaces 09167-20006.

09167-20009

$2.03

31

O RING | A,B

09280-20001

$1.65

32

CHAIN ASSY,DRIV | A,B; #428x188C; Includes Item(s) 33 This part replaces 27600-08010.

27600-46912-134

$70.38

33

JOINT (RK) | A,B This part replaces 27620-20210.

27620-40220

$11.07
