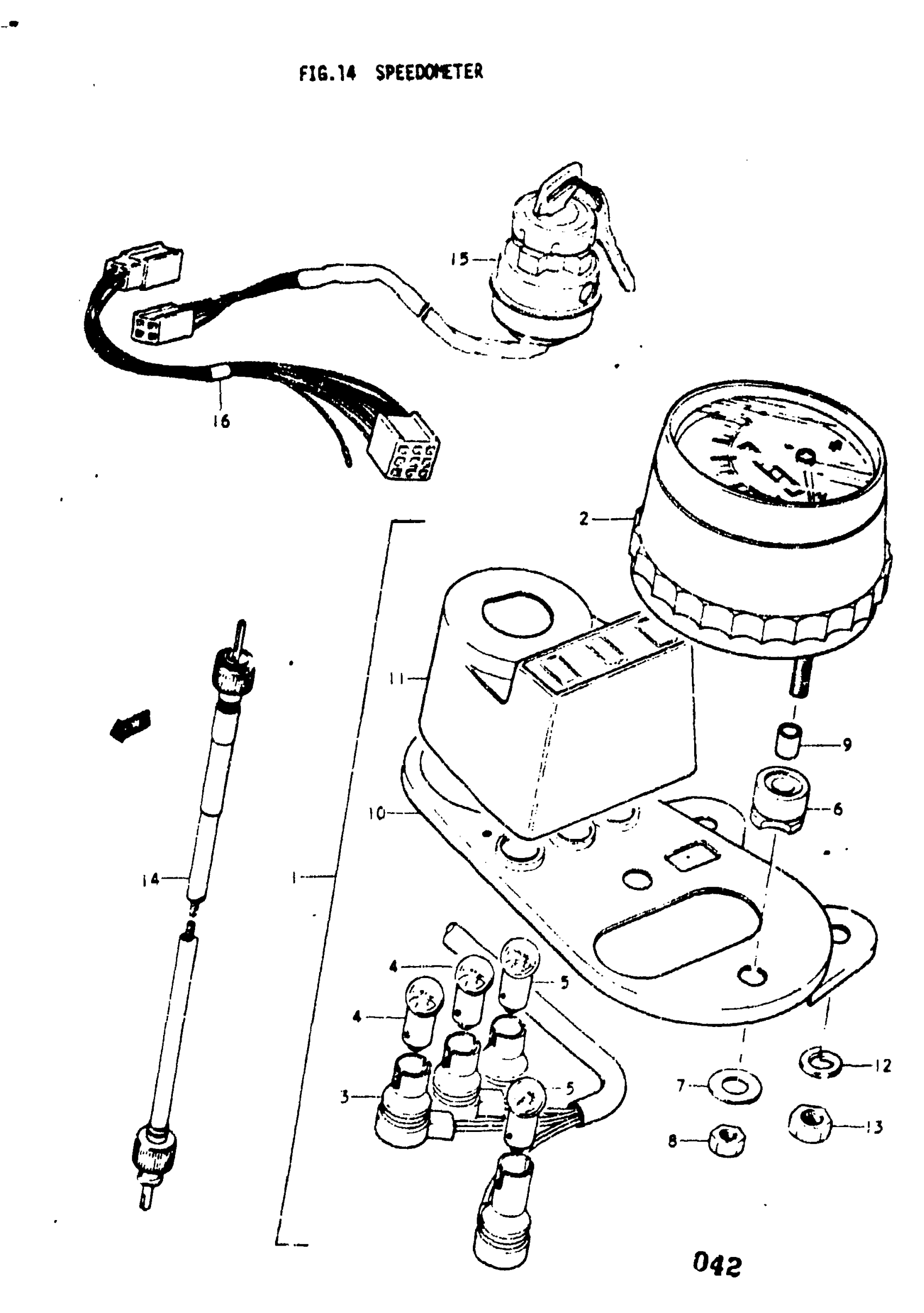

Suzuki A100 (1977) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY | A,B; Includes Item(s) 2 - 11

34100-26634

Unavailable

2

SPEEDOMETER | A,B

34110-26632

Unavailable

3

NO DESCRIPTION AVAILABLE | A,B This part replaces 34170-25621.

34170-25622

Unavailable

4

BULB | A,B; 6V, 1.7W

09471-06001

$2.18

5

BULB | A,B; 6V, 3W

09471-06002

$2.25

6

CUSHION | A,B

34955-16420

$4.43

7

WASHER | A,B This part replaces 34973-18620.

09160-06084

$1.78

8

NUT | A,B This part replaces 08311-11058.

08310-00057

$1.84

9

SPACER | A,B

34972-25721

Unavailable

10

BRACKET | A,B

34950-27023

Unavailable

11

CASE, PILOT BULB | A,B

34980-25623

Unavailable

12

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

13

NUT | A,B This part replaces 08311-11088.

08310-00087

$2.13

14

CABLE ASSY, SPEEDOMETER | A,B This part replaces 34910-25230.

34910-21230

Unavailable

15

SWITCH, IGNITION | A,B

37110-25317

Unavailable

16

LEAD WIRE, IGNITION SWITCH | A,B

36852-23600

Unavailable
