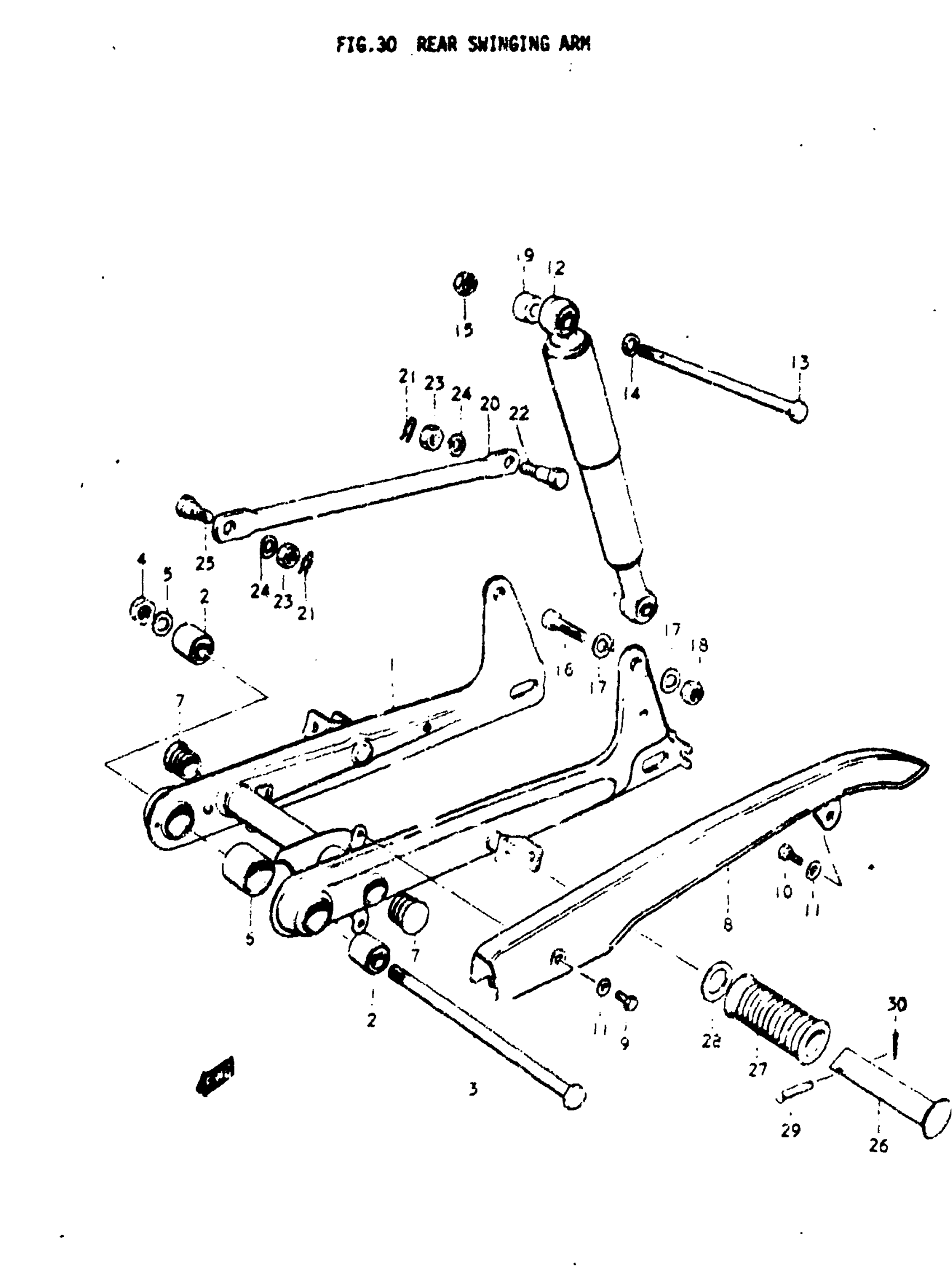

1977 Suzuki A100 Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 1977 Suzuki A100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki A100 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 2 This part replaces 61100-22840-019.

61100-22841-019

1
Out of stock

2

BUSHING | A,B

09319-10009

2
Out of stock

3

NO DESCRIPTION AVAILABLE | A,B This part replaces 61211-20001.

61211-20002

1
Out of stock

4

NUT | A,B This part replaces 08311-11108.

08310-00107

1
Out of stock

5

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

1
Out of stock

6

CUSHION | A,B

09320-22001

1
Out of stock

7

CAP, JOINT | A,B

09250-22002

2
Out of stock

8

CHAIN CASE | A,B

61310-12700

1
Out of stock

9

BOLT | A,B; 6x6

09100-06005

1
Out of stock

10

BOLT | A,B; 6x15 This part replaces 09100-06007.

09100-06067

1
Out of stock

11

WASHER | A,B This part replaces 08322-21068.

08322-01067

2
Out of stock

12

NO DESCRIPTION AVAILABLE | A,B This part replaces 62100-23210-00U.

62100-23210-05H

2
Out of stock

12

NO DESCRIPTION AVAILABLE | A,B; A MODEL This part replaces 62100-23210-03H.

62100-23210-05H

2
Out of stock

13

SHAFT, UPPER | A,B

61211-25001

1
Out of stock

14

WASHER | A,B This part replaces 08322-21108.

08322-01107

2
Out of stock

15

NUT | A,B

09140-10012

1
Out of stock

16

BOLT | A,B; 10x43

09100-10046

2
Out of stock

17

WASHER | A,B This part replaces 08322-21108.

08322-01107

4
Out of stock

18

NUT | A,B This part replaces 08313-11107.

08313-10107

2
Out of stock

19

SPACER | A,B

62431-23200

2
Out of stock

20

LINK, REAR TORQUE | A,B

64310-21200

—
Out of stock

21

CLIP | A,B This part replaces 09385-10001.

09385-10005

2
Out of stock

22

BOLT | A,B

09111-08013

1
Out of stock

23

NUT | A,B

09140-08008

2
Out of stock

24

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

2
Out of stock

25

BOLT | A,B

09111-08012

1
Out of stock

26

FOCTREST BAR, PILLION | A,B

43610-03001

2
Out of stock

27

RUBBER | A,B

43612-03001

2
Out of stock

28

WASHER | A,B This part replaces 09160-19006.

09160-19024

2
Out of stock

29

PIN | A,B

09200-06010

2
Out of stock

30

COTTER PIN | A,B This part replaces 04111-20208.

04111-2020A

2
Out of stock
