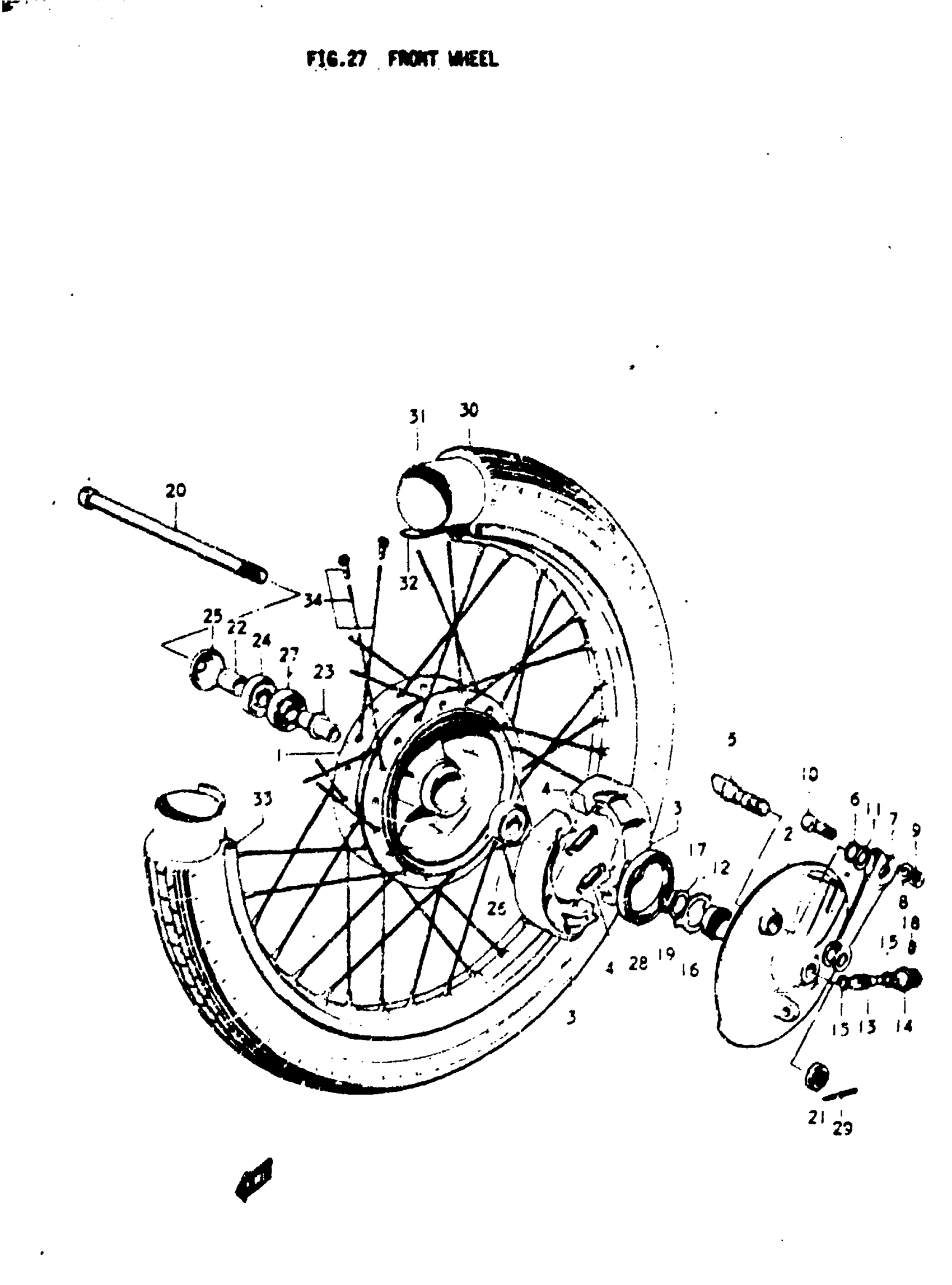

Suzuki A100 (1977) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEE | A,B This part replaces 54110-07001.

54110-07003

Unavailable

2

PAKEL, FRONT HUB | A,B

54210-12003

Unavailable

3

SHOE SET, BRAKE | A,B This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING | A,B This part replaces 09443-07001.

09443-07025

$1.68

5

CAM, BRAKE | A,B

54441-01002

$21.23

6

DUST SEAL, BRAKE CAM | A,B

09280-12001

$3.25

7

LEVER, CAM | A,B

54451-03002

$18.90

8

WASHER | A,B This part replaces 08322-21068.

08322-01067

$1.86

9

.NUT | A,B This part replaces 08311-11068.

08310-00067

$1.83

10

BOLT, ADJUSTER | A,B; 6x31 This part replaces 09100-06050.

09100-06150

$2.00

11

WASHER | A,B; 12.5x20x1

09160-12011

$1.48

12

NO DESCRIPTION AVAILABLE | A,B This part replaces 54611-07600.

54611-07601

Unavailable

13

NO DESCRIPTION AVAILABLE | A,B This part replaces 54621-03000.

54621-03001

Unavailable

14

BUSHING, OUTER | A,B

54632-01001

$14.45

15

WASHER,5.1X9X0. | A,B; 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$2.17

16

DRIVER, SPEEDOMETER GEAR | A,B

54661-07000

$5.10

17

WASHER | A,B

09160-18002

$2.58

18

SCREW,3X4.3 | A,B This part replaces 09134-03101.

09134-03101-A05

$1.95

19

CIRCLIP | A,B

08331-11189

Unavailable

20

NO DESCRIPTION AVAILABLE | A,B This part replaces 54711-07611.

54711-07612

Unavailable

21

NUT | A,B This part replaces 08314-31128.

08314-3112A

$2.42

22

SPACER | A,B

09180-12007

Unavailable

23

SPACER | A,B

54730-07000

Unavailable

24

SEAL,OIL(17X38X | A,B This part replaces 09284-18001.

09284-18006

$5.55

25

COVER, NUB DUST SEAL | A,B

54892-07000

Unavailable

26

B1 12X37X12 BEA | A,B This part replaces 08143-63010.

08143-6301B

$17.58

27

BEARING, RH | A,B

08113-63010

$21.27

28

SEAL | A,B This part replaces 09285-48001.

09285-48002

$6.63

29

PIN | A,B This part replaces 04111-30308.

04111-3030A

$1.37

30

FRONT TIRE | A,B This part replaces 55100-23600.

55100-14012

Unavailable

31

TUBE, INNER | A,B; 2.50-18

55200-14010

Unavailable

32

IN TUBE PROTECT | A,B This part replaces 55261-14010.

55261-26F10

$4.12

33

RIM, WHEEL | A,B; 1.40x18

55311-12120

Unavailable

34

SPOKE SET FR | A,B This part replaces 55300-12825.

55320-12100

Unavailable
