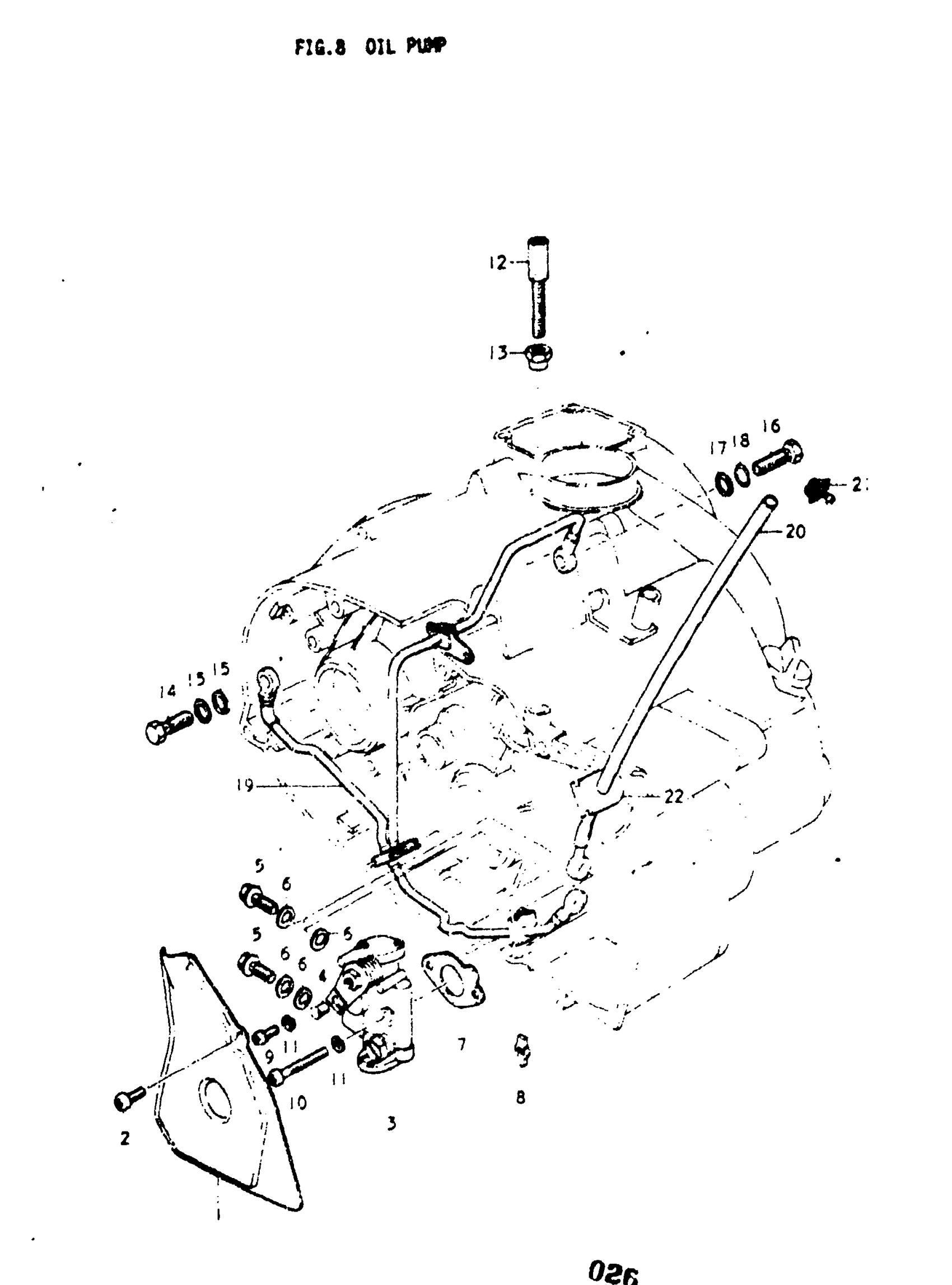

Suzuki A100 (1977) OIL PUMP Diagram

#

Description
Price

1

CAP, OIL PUMP INSPECTION | A,B

11385-12000

Unavailable

2

SCREW | A,B This part replaces 02112-06108.

02112-06107

$1.49

3

NO DESCRIPTION AVAILABLE | A,B This part replaces 16100-12602.

16100-12603

Unavailable

4

TERMINAL, CABLE | A,B This part replaces 16292-03111.

16292-03112

$5.05

5

UNION BOLT | A,B

09360-06005

Unavailable

6

GASKET | A,B This part replaces 09168-06002.

09168-06004

$1.49

7

GASKET, OIL PUMP | A,B This part replaces 16731-03100.

16731-03101

$2.81

8

PIECE, DRIVE | A,B This part replaces 16391-05030.

16391-05031

$3.65

9

SCREW | A,B This part replaces 02112-05168.

02112-05167

$1.97

10

SCREW | A,B This part replaces 02112-05308.

02112-0530A

$2.05

11

LOCK WASHER | A,B This part replaces 08321-21058.

08321-0105A

$1.84

12

BOLT, CABLE ADJUSTER | A,B

09119-08014

$3.55

13

NUT | A,B This part replaces 08312-11088.

08310-00087

$2.13

14

UNION BOLT | A,B

09360-06003

$3.76

15

GASKET | A,B This part replaces 09168-06002.

09168-06004

$1.49

16

VALVE, INLET CHECK | A,B

16710-11012

Unavailable

17

GASKET | A,B; 10x16x3

09168-10005

$2.06

18

O RING | A,B

09280-08003

$1.49

19

HOSE, CUTLET | A,B

16820-12033

Unavailable

20

HOSE, OIL (L:512!97) | A,B This part replaces 16810-05031.

16810-07520

Unavailable

21

OIL HOSE CLAMP | A,B This part replaces 09400-10301.

09400-10302

Unavailable

22

GROMMET | A,B This part replaces 09309-08002.

09309-08015

$2.38
