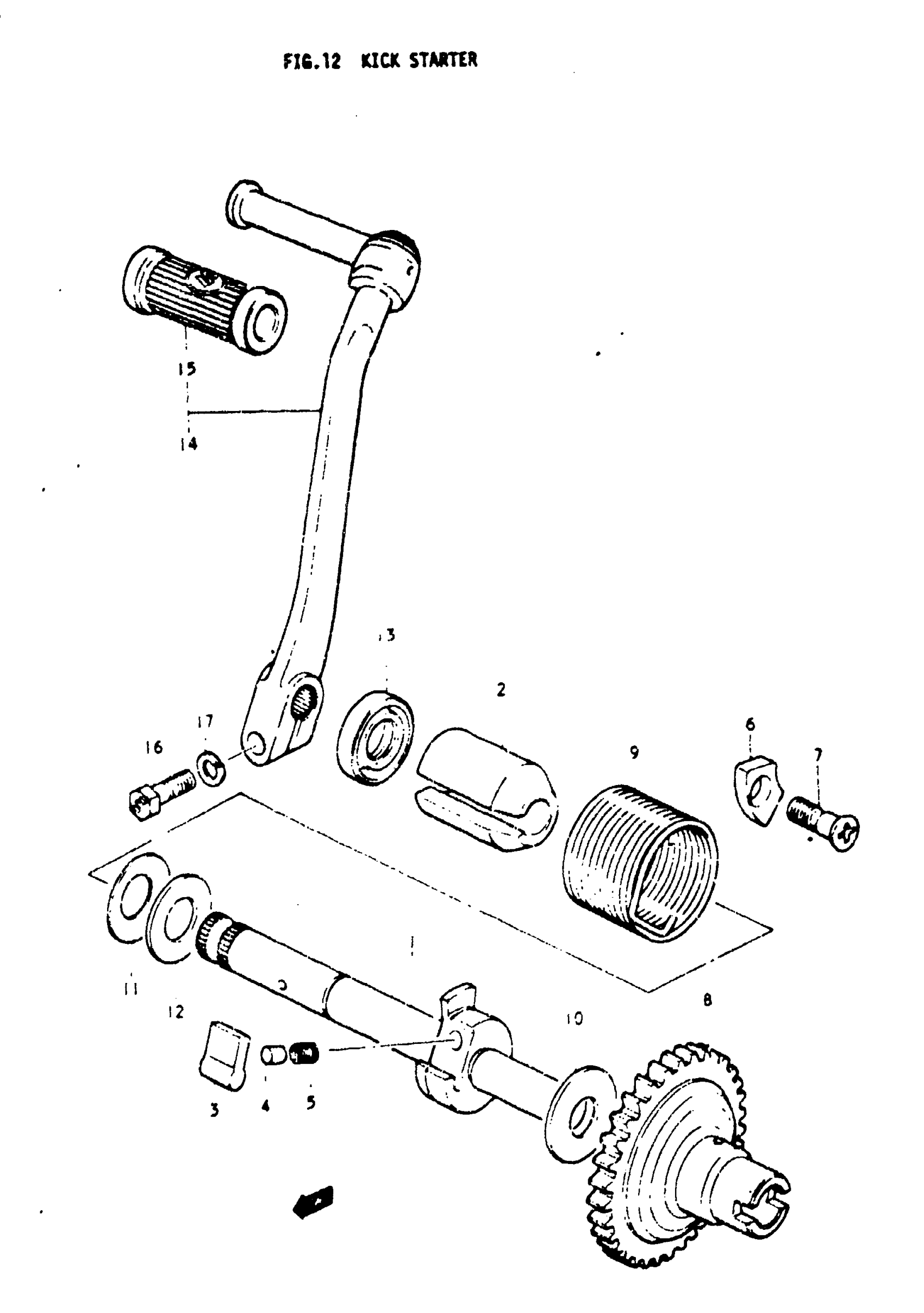

Suzuki A100 (1977) KICK STARTER Diagram

#

Description
Price

1

SHAFT,KICK STAR | A,B This part replaces 26211-23000.

26211-23010

Unavailable

2

GUIDE, SPRING | A,B

26221-08030

Unavailable

3

PAWL, KICK STARTER | A,B

26231-20000

$7.74

4

PIN, PAWL | A,B

09209-05011

$2.20

5

SPRING | A,B

09440-04010

$1.54

6

STOPPER, KICK STARTER | A,B

26232-01000

$6.38

7

SCREW | A,B

09139-06002

$2.38

8

GEAR, KICK STARTER DRIVE | A,B

26241-25300

Unavailable

9

SPRING | A,B

09448-37011

Unavailable

10

WASHER | A,B; 12x30x1.5

08211-12302

$2.16

11

WASHER | A,B

09164-16001

$2.12

12

WASHER | A,B; 16x30.5x0.5

09160-16016

$2.04

13

SEAL,OIL(16X30X | A,B This part replaces 09285-16002.

09285-16005

$2.75

14

LEVER ASSY,KICK | A,B; Includes Item(s) 15 This part replaces 26300-12002.

26300-29004

$61.90

15

RUBBER,KICK STA | A,B This part replaces 26352-01000.

26352-01020

$3.25

16

BOLT | A,B This part replaces 01122-08258.

01500-08257

$2.50

17

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13
