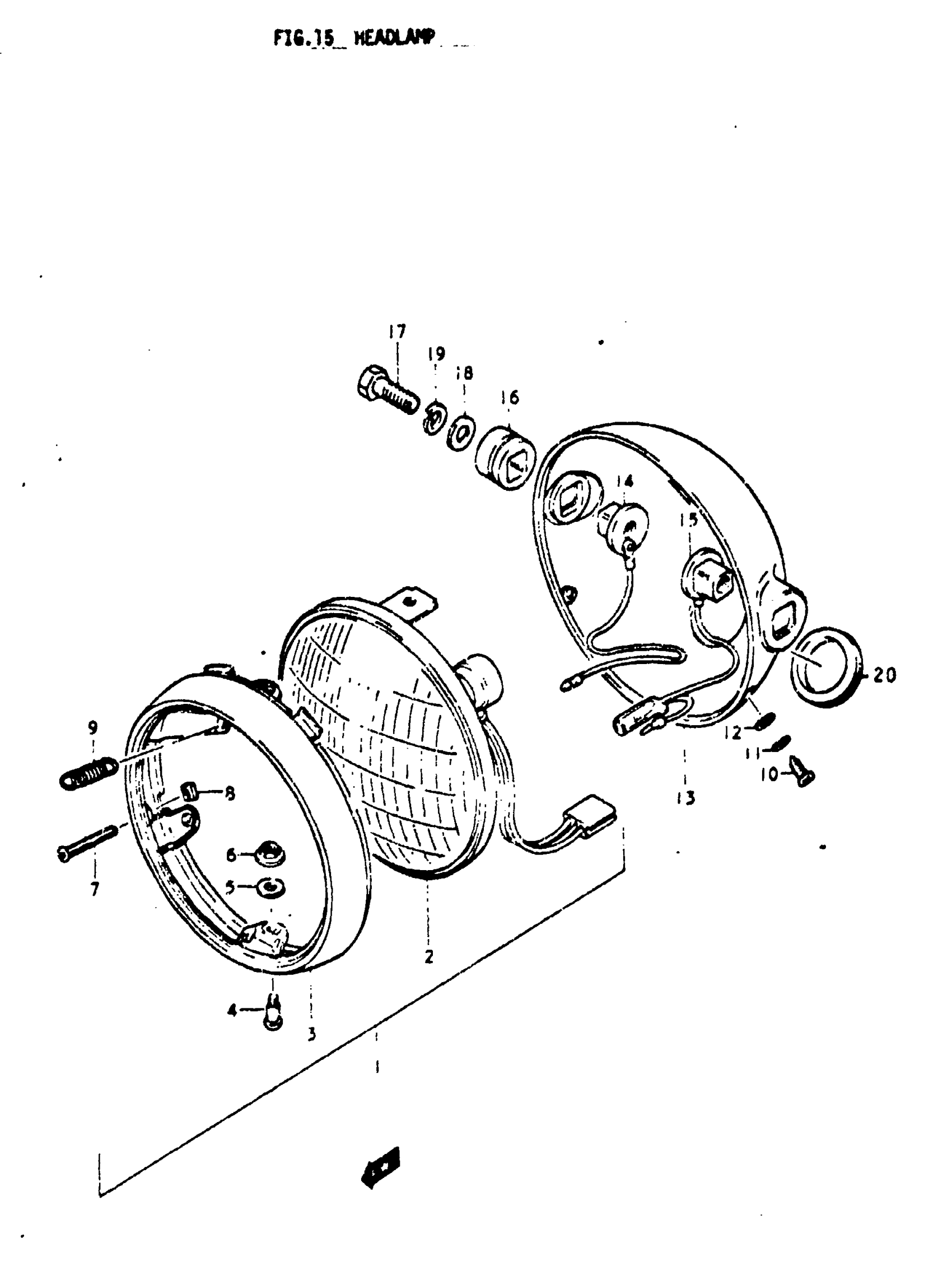

Suzuki A100 (1977) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | A,B; Includes Item(s) 2 - 9

35100-25612

Unavailable

2

UNIT,HEADLAMP | A,B; 6V, 25/25W This part replaces 35121-25612.

35121-256V0

Unavailable

3

RIM | A,B

35111-25611

Unavailable

4

SCREW,HEAD LAMP | A,B This part replaces 35136-25611.

35136-35400

$4.58

5

SPACER | A,B

35133-25611

Unavailable

6

NUT | A,B This part replaces 35135-25611.

08316-1005A

$2.19

7

SCREW | A,B This part replaces 35151-27620.

35151-06020

Unavailable

8

NUT | A,B

35155-01321

Unavailable

9

SPRING | A,B

35154-05610

Unavailable

10

SCREW | A,B This part replaces 02211-04128.

02112-0412A

$1.49

11

LOCK WASHER | A,B This part replaces 08321-21048.

08321-0104A

$1.84

12

WASHER | A,B This part replaces 08322-21048.

08322-01047

$1.86

13

NO DESCRIPTION AVAILABLE | A,B This part replaces 51810-28610-00U.

51810-28613-737

Unavailable

13

NO DESCRIPTION AVAILABLE | B; 8 MODEL This part replaces 51810-28610-03H.

51810-28613-737

Unavailable

14

SPACER,HEADLAMP | A,B This part replaces 51821-25300.

51821-36210

$6.07

15

SPACER, HEADLAMP HOUSING LH | A,B

51822-27301

Unavailable

16

CUSHION,HEADLAM | A,B This part replaces 51827-27301.

51827-27303

$3.66

17

BOLT | A,B This part replaces 01221-08207.

01204-08207

$2.30

18

WASHER | A,B This part replaces 08322-11088.

08322-01087

$2.13

19

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

20

GROMMET | A,B

51845-31031

$4.52
