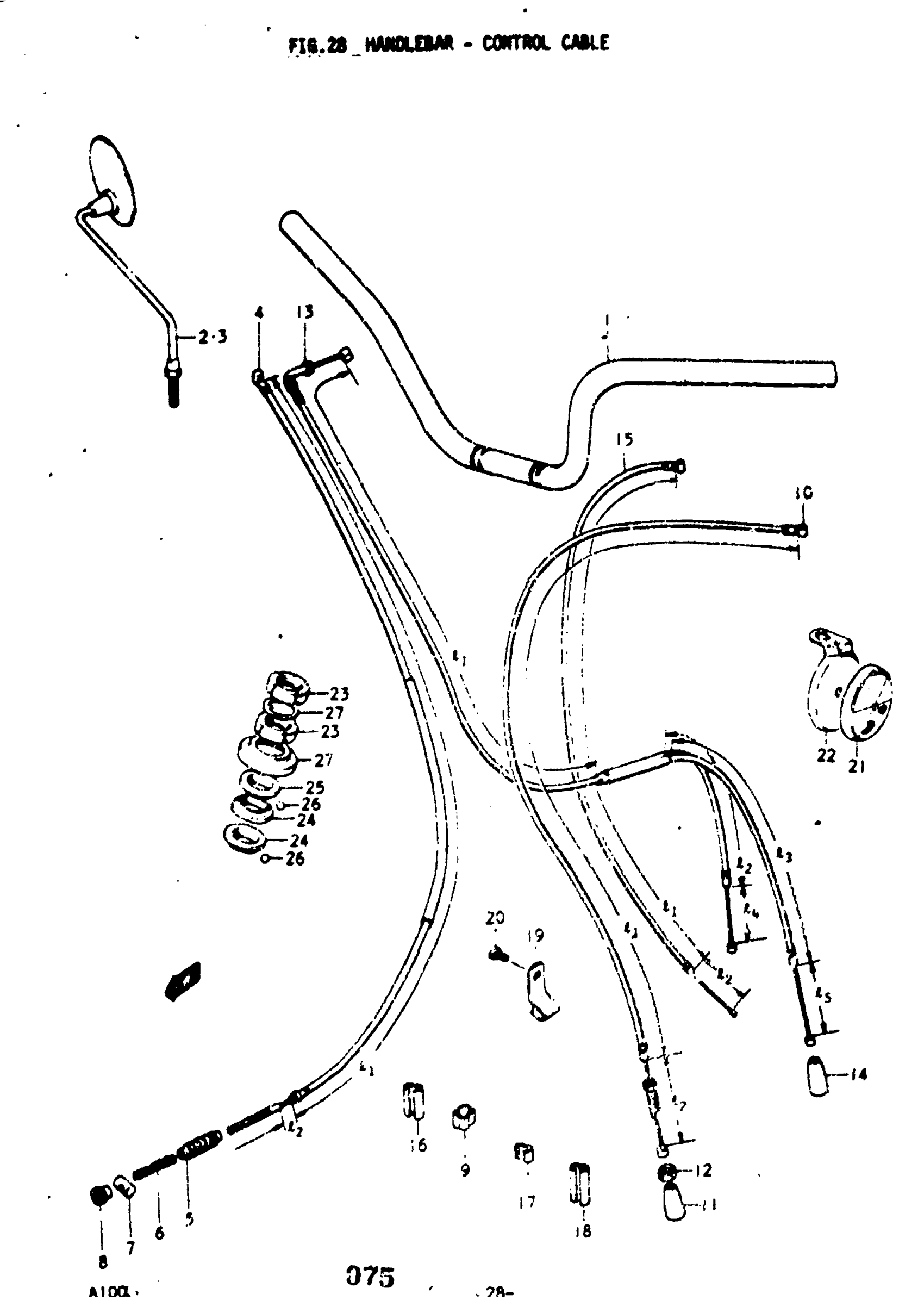

Suzuki A100 (1977) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HARDLEBAR | A,B

56111-22500

Unavailable

2

MIRROR ASSY,RR | A,B This part replaces 56500-31011.

56500-31014

$48.02

3

MIRROR ASSY,RR | A,B This part replaces 56600-31011.

56600-31014

$48.02

4

NO DESCRIPTION AVAILABLE | A,B; L:1000, 4:69; Includes Item(s) 5 - 8 This part replaces 58100-26100.

58100-39331

Unavailable

5

DUST SEAL | A,B

09287-07001

$2.00

6

SPRING | A,B

09440-06003

$2.44

7

PIN | A,B

09209-10001

$1.49

8

NUT | A,B

09150-05101

$3.04

9

CLIP, CABLE | A,B

09408-00014

Unavailable

10

CABLE ASSY, CLUTCH | A,B; L:980, L:118; Includes Item(s) 11 - 12

58200-23600

Unavailable

11

SEAL,DUST | A,B This part replaces 09287-07002.

09287-07006

$2.30

12

NUT | A,B This part replaces 08312-11088.

08310-00087

$2.13

13

NO DESCRIPTION AVAILABLE | A,B; L1:570, L2:332, L3:467; Includes Item(s) 14 This part replaces 58300-23600.

58300-23601

Unavailable

14

SEAL,DUST | A,B This part replaces 09287-07002.

09287-07006

$2.30

15

CABLE,STARTER | A,B; L:930, L:66 This part replaces 58410-08710.

58410-07500

$10.75

16

CLIP, CABLE | A,B

09408-00001

Unavailable

17

CLIP, CABLE | A,B

09408-00002

$2.30

18

CLIP, CABLE | A,B

09408-00004

Unavailable

19

CLAMP, THROTTLE CABLE | A,B

09403-09304

Unavailable

20

BOLT | A,B This part replaces 01112-06108.

01500-06107

$2.06

21

REFLEX REFLECTOR FRONT | A,B This part replaces 35950-15010.

35950-49080

$17.24

22

BRACKET | A,B

35954-08413

Unavailable

23

NUT, STEERING STEM | A,B

51631-05000

Unavailable

24

RACE,STEERING INNER UPPER | A,B

51611-20002

$11.95

25

OUTER RACE, STEERING UPPER | A,B

51621-25000

$12.40

26

STEEL BALL | A,B

06111-06003

$1.49

27

WASHER | A,B

09166-24001

Unavailable

28

DUST SEAL | A,B

51643-06001

Unavailable
