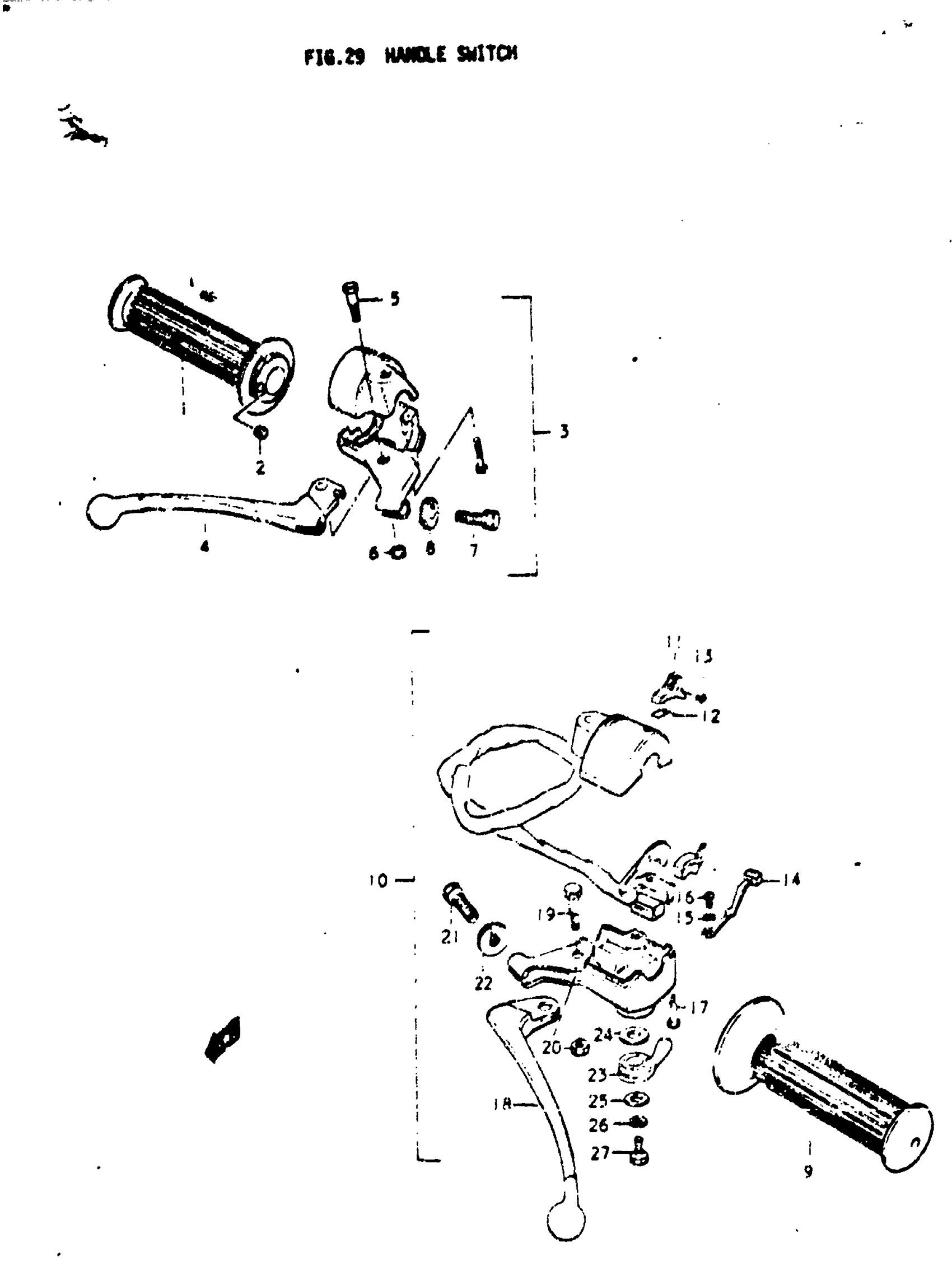

Suzuki A100 (1977) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP THROTTLE | A,B This part replaces 57110-25600.

57110-25601

Unavailable

2

END PIECE, THROTTLE GRIP | A,B

58631-07010

$3.56

3

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 4 - 8 This part replaces 57300-26610.

57300-26611

Unavailable

4

LEVER, BRAKE | A,B This part replaces 57420-18011.

57420-29400

Unavailable

5

BOLT, PLVOT | A,B

57431-25310

Unavailable

6

.NUT | A,B This part replaces 08311-11068.

08310-00067

$2.13

7

ADJUSTER, CABLE | A,B

57441-26010

$4.48

8

NUT | A,B

57442-11010

$2.79

9

GRIP,L | A,B This part replaces 57211-25600.

57211-45021

$11.44

10

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 11 - 27 This part replaces 57500-26600.

57500-26603

Unavailable

11

KNOB, LIGHTING | A,B This part replaces 57713-33010.

57713-33011

$5.24

12

PLATE, KNOB | A,B

57714-33010

$3.25

13

SCREW | A,B This part replaces 02121-03068.

02122-03067

$1.80

14

NO DESCRIPTION AVAILABLE | A,B This part replaces 57651-25611.

57651-25612

Unavailable

15

WASHER, ADJUSTING | A,B

57581-25610

Unavailable

16

SCREW | A,B This part replaces 02111-03067.

02112-0306B

$1.59

17

SCREW | A,B This part replaces 02111-05207.

02112-05207

$1.97

18

LEVER, CLUTCH | A,B This part replaces 57620-31010.

57620-45010

Unavailable

19

BOLT, PLVOT | A,B

57431-25310

Unavailable

20

.NUT | A,B This part replaces 08311-11068.

08310-00067

$2.13

21

ADJUSTER, CABLE | A,B

57441-26010

$4.48

22

NUT | A,B

57442-11010

$2.79

23

LEVER, STARTER | A,B

58721-25611

Unavailable

24

WASHER, ADJUSTING | A,B

58722-03010

$3.71

25

.WASHER (6.5X16X1) | A,B This part replaces 58723-03010.

09160-06129

$2.30

26

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

27

BOLT | A,B This part replaces 01112-06128.

01500-06127

$1.97
