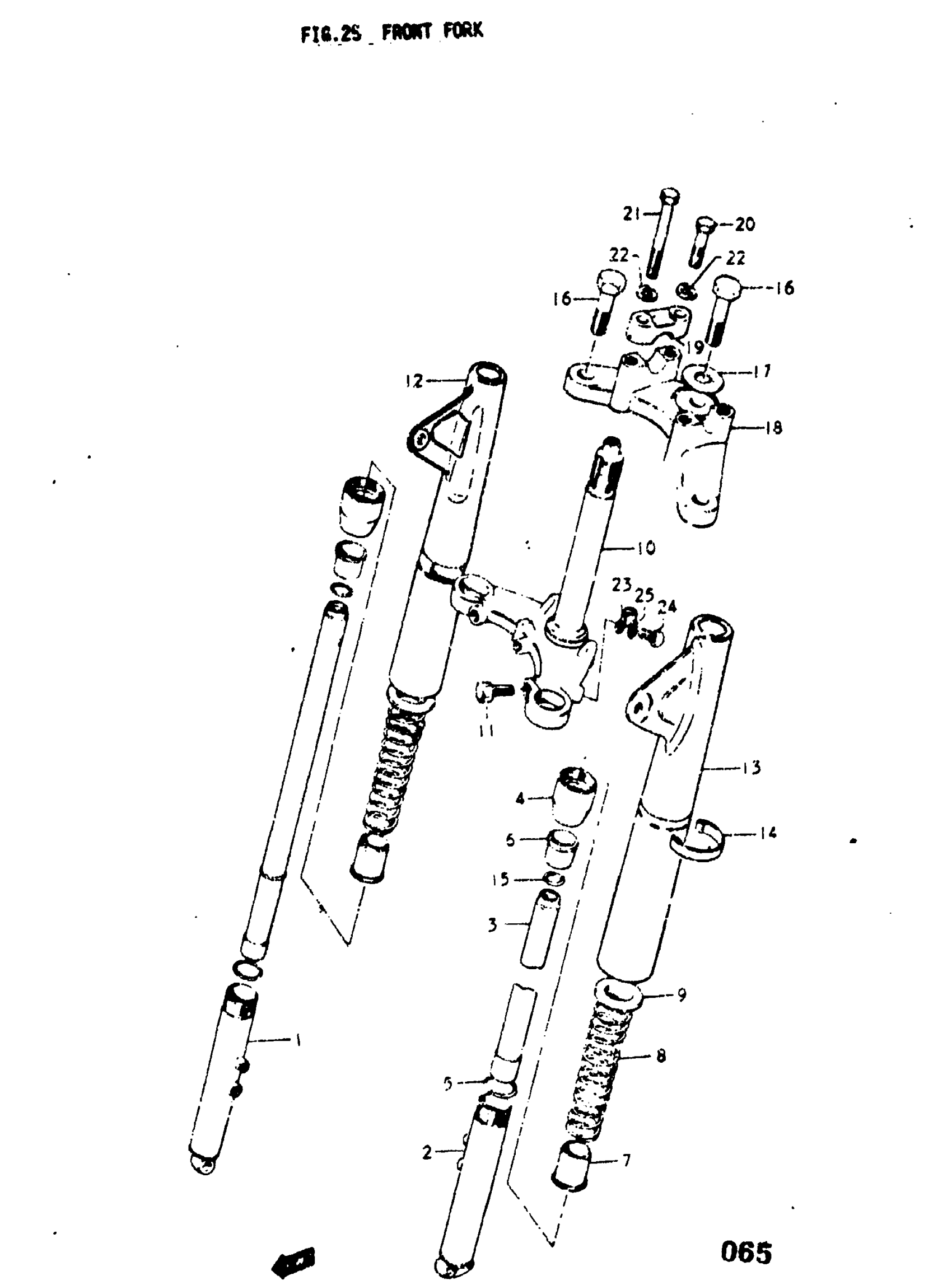

Suzuki A100 (1977) FRONT FORK Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | A,B This part replaces 51100-23630-00U.

51106-23620

Unavailable

NO DESCRIPTION AVAILABLE | B; B MODEL; Includes Item(s) 1 - 22 This part replaces 51100-23630-03H.

51106-23620

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 51130-12110.

51130-23630

Unavailable

2

NO DESCRIPTION AVAILABLE | A,B This part replaces 51140-12110.

51140-23630

Unavailable

3

INNER TUBE | A,B

51110-23010

Unavailable

4

NUT, OUTER TUBE | A,B

51150-03011

Unavailable

5

GASKET | A,B

51154-12011

Unavailable

6

GUIDE, INNER TUBE | A,B

51152-03011

Unavailable

7

DUST SEAL | A,B

51173-01210

Unavailable

8

SPRING | A,B

51171-24900

Unavailable

9

GUIDE, SPRING | A,B

51172-23010

Unavailable

10

NO DESCRIPTION AVAILABLE | A,B This part replaces 51410-22011.

51410-22012

Unavailable

11

BOLT | A,B This part replaces 01111-10308.

01500-1030A

$3.16

12

NO DESCRIPTION AVAILABLE | A,B This part replaces 51530-23610-00U.

51500-23850-126

Unavailable

12

NO DESCRIPTION AVAILABLE | B; B MODEL This part replaces 51530-23610-03H.

51500-23850-126

Unavailable

13

NO DESCRIPTION AVAILABLE | A,B This part replaces 51540-23610-00U.

51500-23850-126

Unavailable

13

NO DESCRIPTION AVAILABLE | B; B MODEL This part replaces 51540-23610-03H.

51500-23850-126

Unavailable

14

NO DESCRIPTION AVAILABLE | A,B This part replaces 51555-22010.

51555-23350

Unavailable

15

O RING | A,B This part replaces 51181-22011.

51181-22012

$3.73

16

BOLT | A,B

51351-22010

Unavailable

17

ASHER | A,B

51356-22012

$6.80

18

STEERING STEM HEAD | A,B

51311-22210

Unavailable

19

HOLDER, HANDLEBAR | A,B

56211-27100

$15.23

20

BOLT | A,B This part replaces 01221-08757.

01204-08757

Unavailable

21

BOLT | A,B This part replaces 01221-08757.

01204-08757

Unavailable

22

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

23

CLIP, CABLE | A,B

51453-03010

$5.50

24

SCREW | A,B This part replaces 02112-06108.

02112-06107

$1.49

25

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13
