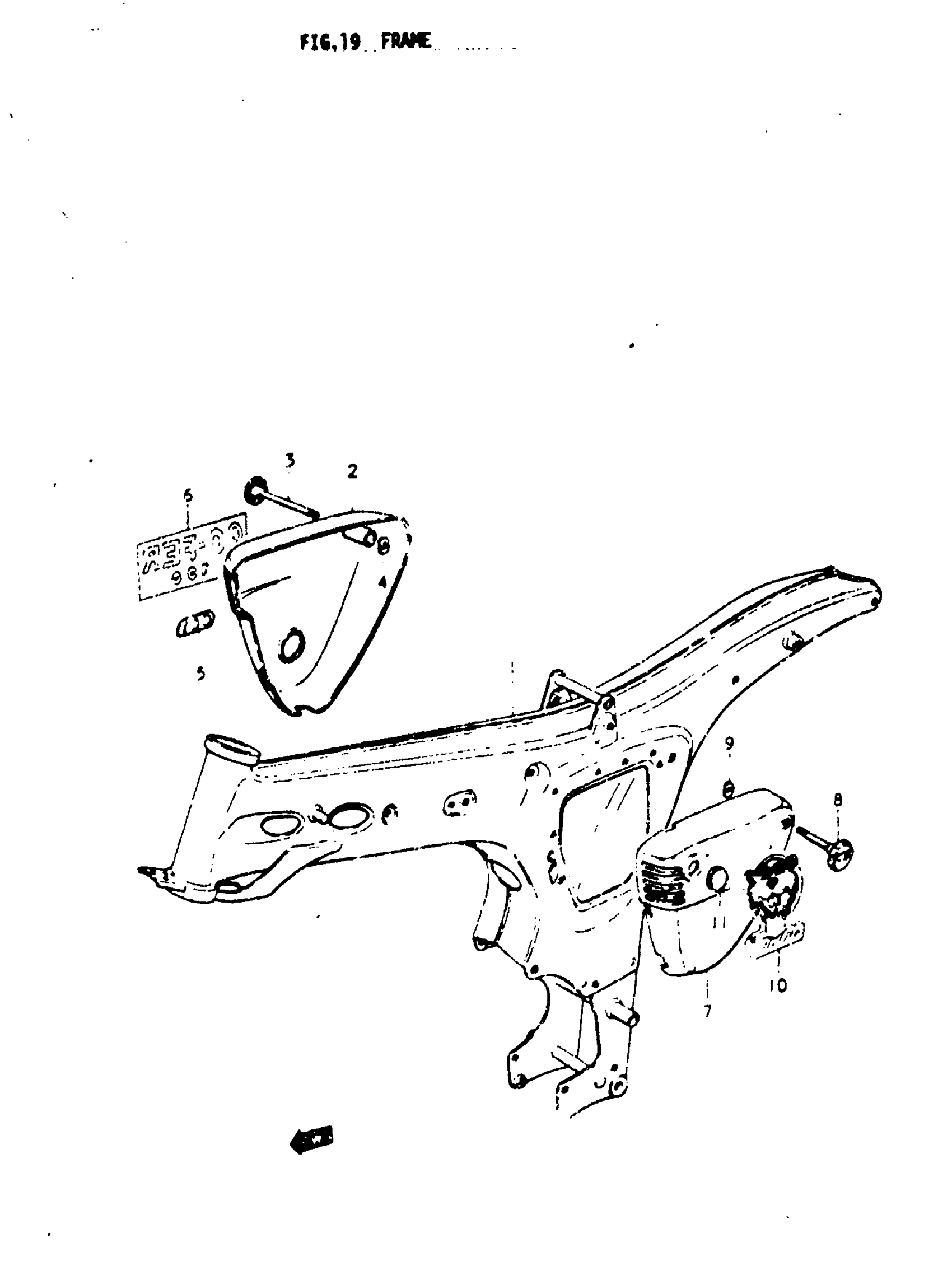

Suzuki A100 (1977) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 41100-22630-019.

41100-22631-019

Unavailable

2

NO DESCRIPTION AVAILABLE | A,B This part replaces 47111-22502-00U.

47111-22502

Unavailable

2

NO DESCRIPTION AVAILABLE | B; B MODEL This part replaces 47111-22502-03H.

47111-22502-019

Unavailable

3

FRAME COVER RH | A,B This part replaces 47130-03001.

47130-03002

Unavailable

4

NUT | A,B

09152-06002

$1.67

5

EMBLEM, OCI | A,B

68171-26000

$3.59

6

NO DESCRIPTION AVAILABLE | A,B This part replaces 68141-23630.

68100-23840

Unavailable

7

NO DESCRIPTION AVAILABLE | A,B This part replaces 47211-22501-00U.

47211-22501

Unavailable

7

NO DESCRIPTION AVAILABLE | B; B MODEL This part replaces 47211-22501-03H.

47211-22501

Unavailable

8

FRAME COVER RH | A,B This part replaces 47130-01001.

47130-01002

Unavailable

9

NUT | A,B

09152-06002

$1.67

10

NO DESCRIPTION AVAILABLE | A,B This part replaces 68141-23640.

68100-23840

Unavailable

11

CAP, FRAME COVER H | A,B

47229-22500

Unavailable
