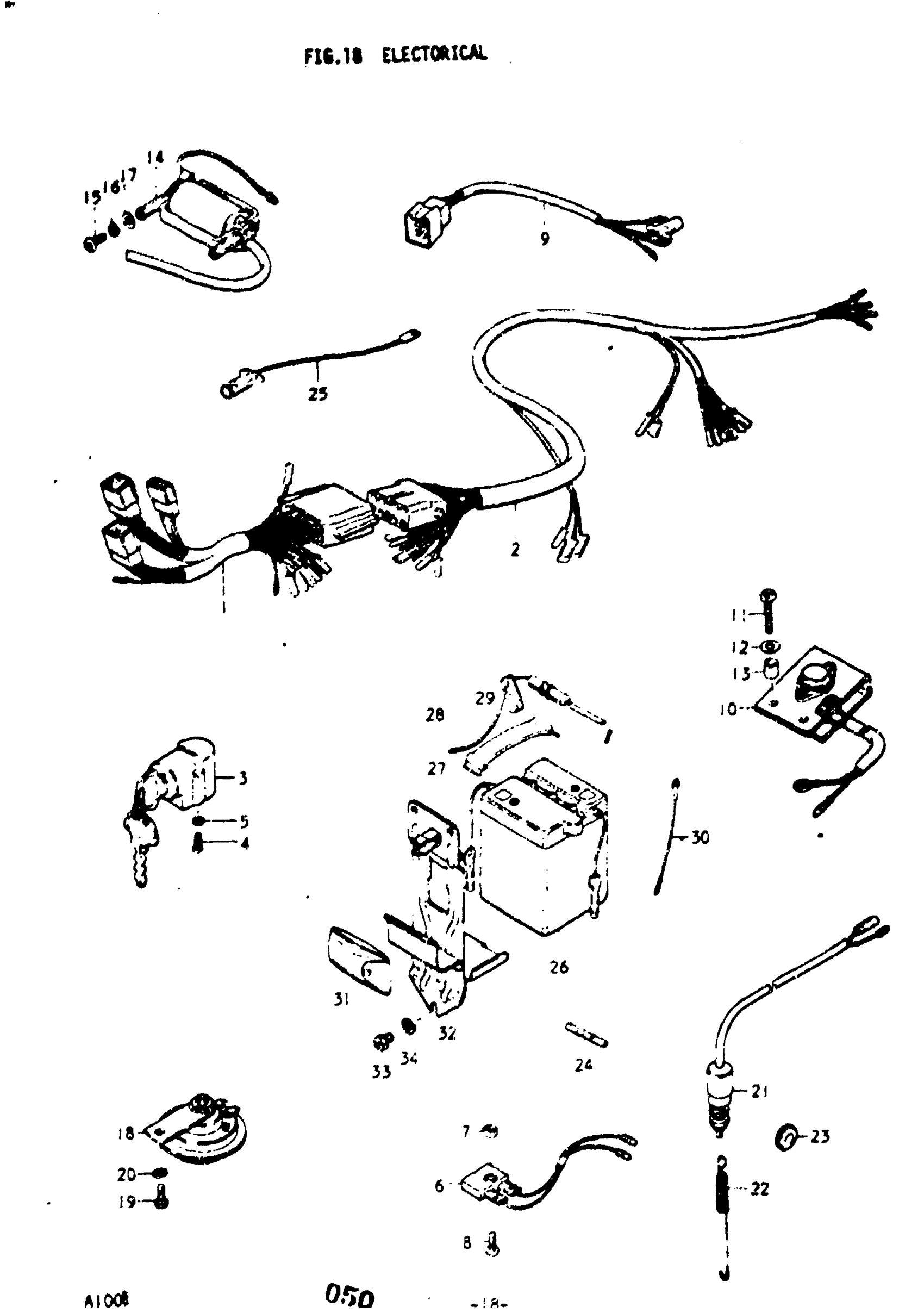

Suzuki A100 (1977) ELECTRICAL Diagram

#

Description
Price

1

WIRING HARNESS NO. 1 | A,B

36610-23612

Unavailable

2

NO DESCRIPTION AVAILABLE | A,B This part replaces 36620-23603.

36620-23604

Unavailable

3

LOCK ASSY, STEERING | A,B

50000-25637

Unavailable

4

SCREW | A,B This part replaces 02111-05127.

02112-05127

$1.97

5

LOCK WASHER | A,B This part replaces 08321-21056.

08321-0105A

$1.84

6

DIODE | A,B This part replaces 32800-19061.

32800-16A00

$23.07

7

NUT | A,B

08311-11056

Unavailable

8

SCREW | A,B This part replaces 02111-05207.

02112-05207

$1.97

9

LEAD WIRE, MAGNETO | A,B

36851-23600

Unavailable

10

REGULATOR, VOLTAGE | A,B This part replaces 32500-27600.

32500-25600

Unavailable

11

SCREW | A,B This part replaces 02112-06256.

02112-0625A

$1.80

12

WASHER | A,B This part replaces 08322-21068.

08322-01067

$2.13

13

SPACER (6.5X10.5X15) | A,B This part replaces 09180-06061.

09180-06079

$2.42

14

COIL, IGNITION | A,B

33410-19010

Unavailable

15

SCREW | A,B This part replaces 02111-05127.

02112-05127

$1.97

16

LOCK WASHER | A,B This part replaces 08321-21058.

08321-0105A

$1.84

17

WASHER | A,B This part replaces 08322-21058.

08322-01057

$2.13

18

HORN ASSY | A,B This part replaces 38500-23031.

38500-23032

Unavailable

19

BOLT | A,B This part replaces 01122-08128.

01500-08127

$2.62

20

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

21

SWITCH, REAR BRAKE LAMP | A,B This part replaces 37740-19051.

37740-48071

$19.18

22

SPRING | A,B

09443-06019

$3.42

23

GEOMMET | A,B

09308-12001

Unavailable

24

CONNECTOR, DIMMER SWITCH | A,B

37132-03000

Unavailable

25

LEAD WIRE, DC LIGHTING | A,B

36811-27610

Unavailable

26

BATTERY | A,B; 6V, 4AH

33610-03010

Unavailable

27

BAND | A,B

09462-00007

$4.11

28

FUSE CASE ASSY | A,B This part replaces 36740-15010.

36740-15011

$9.38

29

FUSE | A,B; 15A

09481-15001

$2.06

30

LEAD WIRE, BATTERY (-) | A,B

36862-27690

$5.20

31

TOOL ASSY | A,B This part replaces 09800-00108.

09800-21028

$33.02

32

HOLDER,BATTERY | A,B This part replaces 41540-05100.

41540-05102

Unavailable

33

SCREW (6X10) | A,B This part replaces 09128-06004.

09128-06044

$1.49

34

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13
