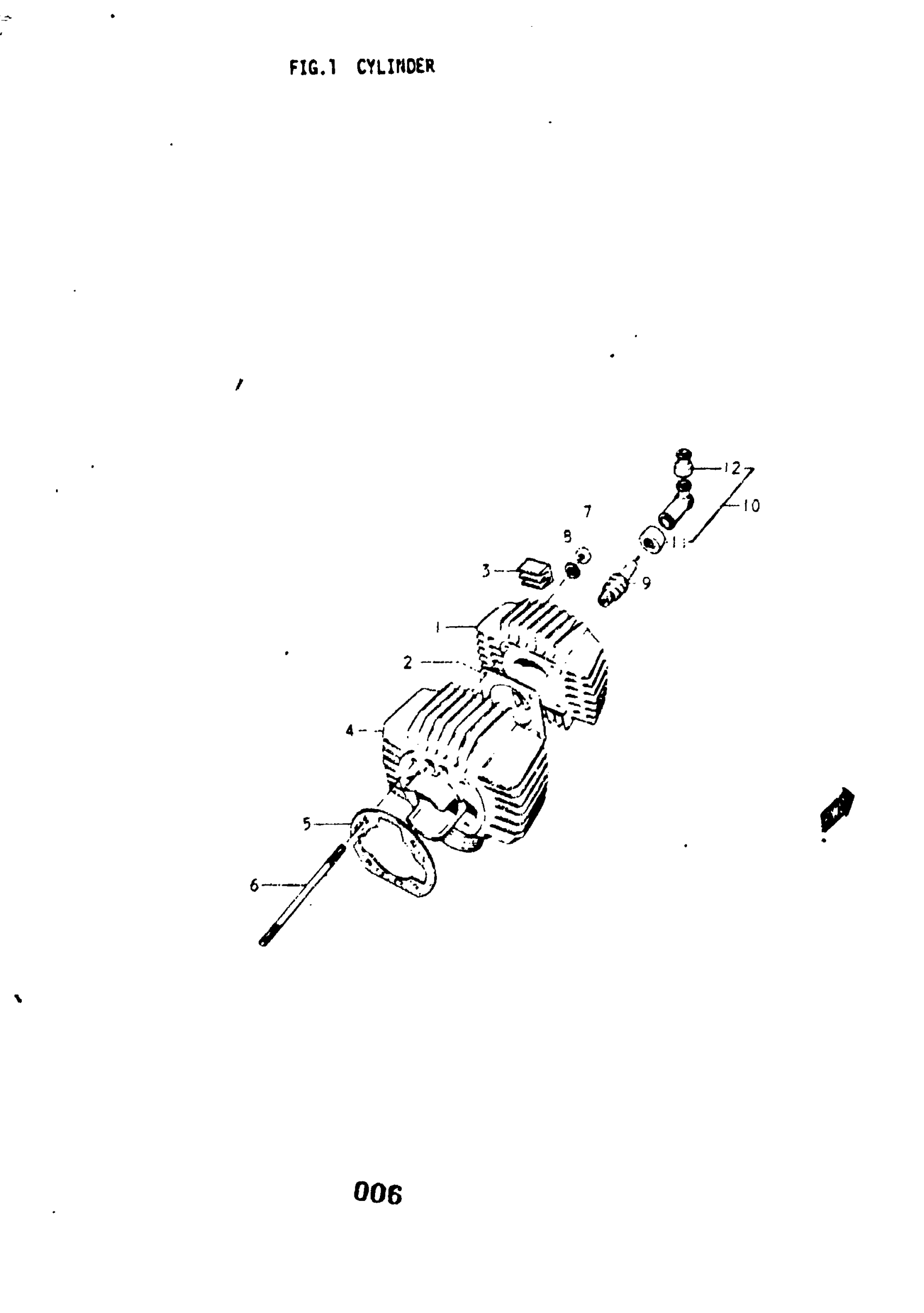

Suzuki A100 (1977) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | A,B

11111-12402

Unavailable

2

GASKET, CYLINDER HEAD | A,B

11141-12401

Unavailable

3

RUBBER PAD CYLI | A,B This part replaces 11251-28000.

11251-28001

$5.24

4

NO DESCRIPTION AVAILABLE | A,B This part replaces 11210-12002.

11200-23810

Unavailable

5

NO DESCRIPTION AVAILABLE | A,B This part replaces 11241-12000.

11241-12010

Unavailable

6

STUD BOLT | A,B

09108-08006

$5.00

7

NUT, CLUTCH RELEASE NO.1 | A,B This part replaces 09140-08005.

09140-08017

$2.27

8

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

9

SPARK PLUG (NGK,BP7HS) | A,B; NGK, BP-7HS This part replaces 09482-00060.

09482-00105

$2.79

10

CAP SET,SPARK P | A,B; Includes Item(s) 11 - 12 This part replaces 33500-69810.

33500-69811

$22.48

11

SEAL, SPARK PLUG | A,B

33541-69010

$4.37

12

SEAL,HIGH TENSION CORD (SIDE) | A,B This part replaces 33542-98000.

33542-38B00

$4.34
