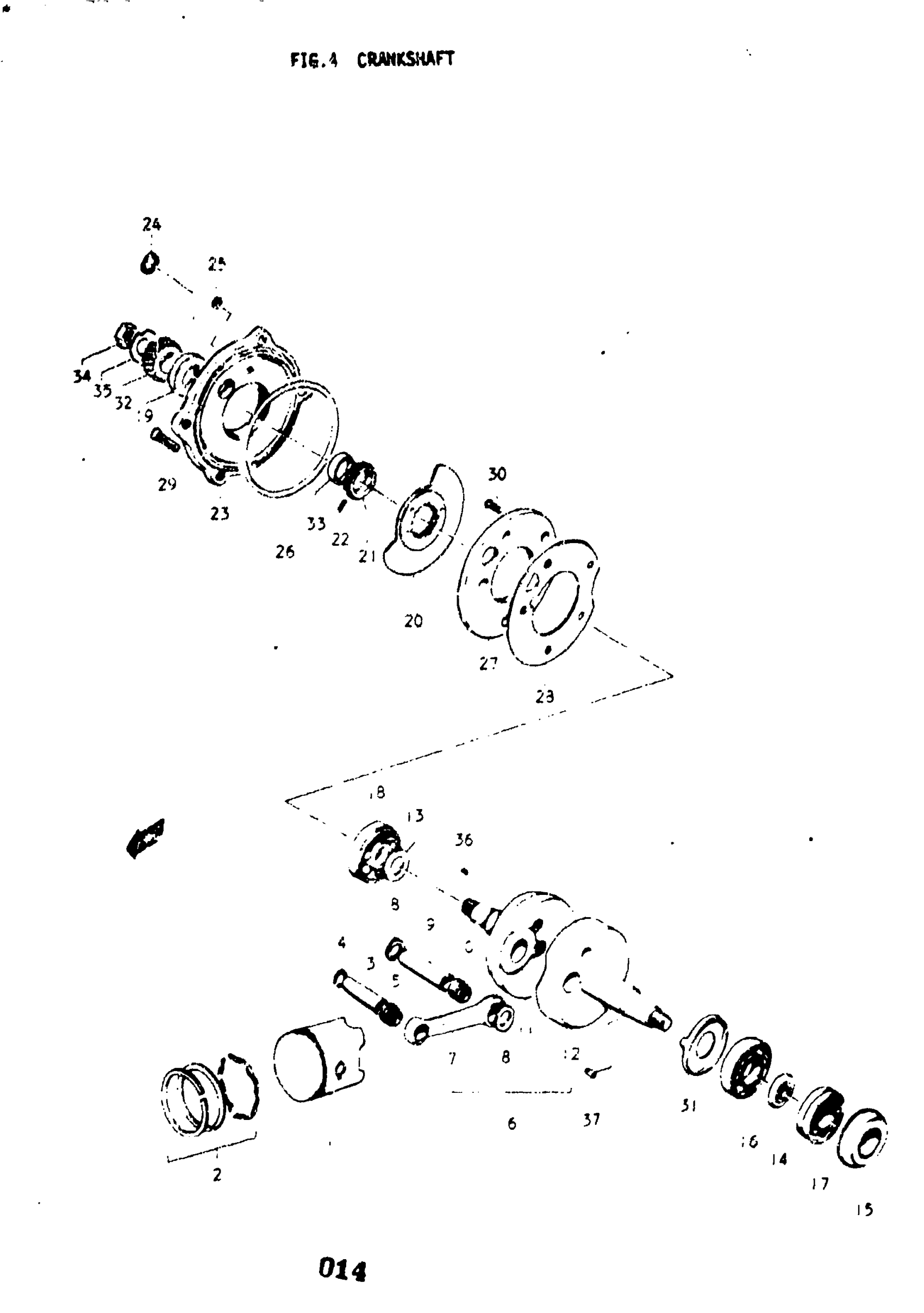

Suzuki A100 (1977) CRANKSHAFT Diagram

#

Description
Price

1

PISTON STD | A,B This part replaces 12110-12000.

12110-12003

Unavailable

1

PISTON/RING KIT | A,B; OS:0.5 This part replaces 12110-12701.

12100-12000-050

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B; OS:1.0 This part replaces 12110-12711.

12110-12003-100

Unavailable

2

PISTON RING SET | A,B This part replaces 12140-12818.

12140-12012

Unavailable

2

RING SET, PISTON | A,B; OS:0.5 This part replaces 12140-28640.

12140-28630-050

$40.98

2

NO DESCRIPTION AVAILABLE | A,B; OS:1.0 This part replaces 12140-23711.

12140-23010-100

Unavailable

3

PIN,PISTON | A,B This part replaces 12151-07000.

12151-23400-0A0

$8.67

4

RING | A,B

09381-14001

$1.49

5

ROLLR BRG,14X18 | A,B This part replaces 09263-14006.

09263-14022

$11.97

6

CRANKSHAFT ASSY | A,B; Includes Item(s) 7 - 12 This part replaces 12200-12002.

12200-12003

Unavailable

7

CONNECTING ROD | A,B This part replaces 12161-12000.

12161-39300

$69.47

8

WASHER | A,B; 19x33x1

09160-19001

$3.27

9

PIN, CRANK | A,B

12211-03300

Unavailable

10

BEARING | A,B This part replaces 09263-19007.

09263-19009

$16.75

11

NO DESCRIPTION AVAILABLE | A,B This part replaces 12221-12003.

12221-12004

Unavailable

12

CRANKSHAFT,L | A,B This part replaces 12261-12002.

12261-12004

Unavailable

13

SHIM (20X28X0.5) | A,B This part replaces 08221-20285.

09181-20158

$3.03

14

SPACER | A,B

12353-12001

Unavailable

15

OIL SEAL, RH | A,B This part replaces 09283-20011.

09283-20034

$5.18

16

BEARING, COUNTER SHAFT | A,B; 20x52x15 This part replaces 09262-20009.

09262-20073

$23.28

17

BEARING, DRIVE SHAFT LH | A,B This part replaces 08113-62040.

09262-20069

$23.28

18

BEARING, RH | A,B

09262-20015

$34.92

19

SEAL,OIL,25X44X | A,B This part replaces 09283-25009.

09283-25107

$6.02

20

PLATE, VALVE | A,B

12410-12010

Unavailable

21

GUIDE, VALVE | A,B

12421-05210

Unavailable

22

PIN | A,B This part replaces 06211-03052.

04221-03059

$1.72

23

NO DESCRIPTION AVAILABLE | A,B This part replaces 12450-12000.

12450-12001

Unavailable

24

O RING(D:1.9,ID | A,B; 10:22.5, D:1.5 This part replaces 09280-23002.

09280-23003

$1.80

25

O RING (D:1.5,ID:10) | A,B; 10:10, D:1.5 This part replaces 09280-10002.

09280-10012

$2.28

26

O RING(D:2,ID:9 | A,B; 10:99, D:2 This part replaces 09280-99001.

09280-99004

$19.48

27

NO DESCRIPTION AVAILABLE | A,B This part replaces 12460-12000.

12461-12001

Unavailable

28

GASKET, INNER VALVE SEAT | A,B

12471-12000

Unavailable

29

SCREW | A,B This part replaces 02122-06168.

02122-06167

$1.49

30

SCREW | A,B This part replaces 02122-06208.

02122-0620A

$1.49

31

PLATE, OIL GUIDE | A,B

12511-03100

Unavailable

32

GEAR, PRIMARY DRIVE | A,B

21111-07001

Unavailable

33

SPACER | A,B; 20x25x10

09180-20006

Unavailable

34

NUT | A,B

09140-14002

$3.40

35

WASHER | A,B

09166-14009

Unavailable

36

KEY | A,B This part replaces 08341-31049.

09420-04008

$3.42

37

KEY | A,B

08341-31039

$1.89
