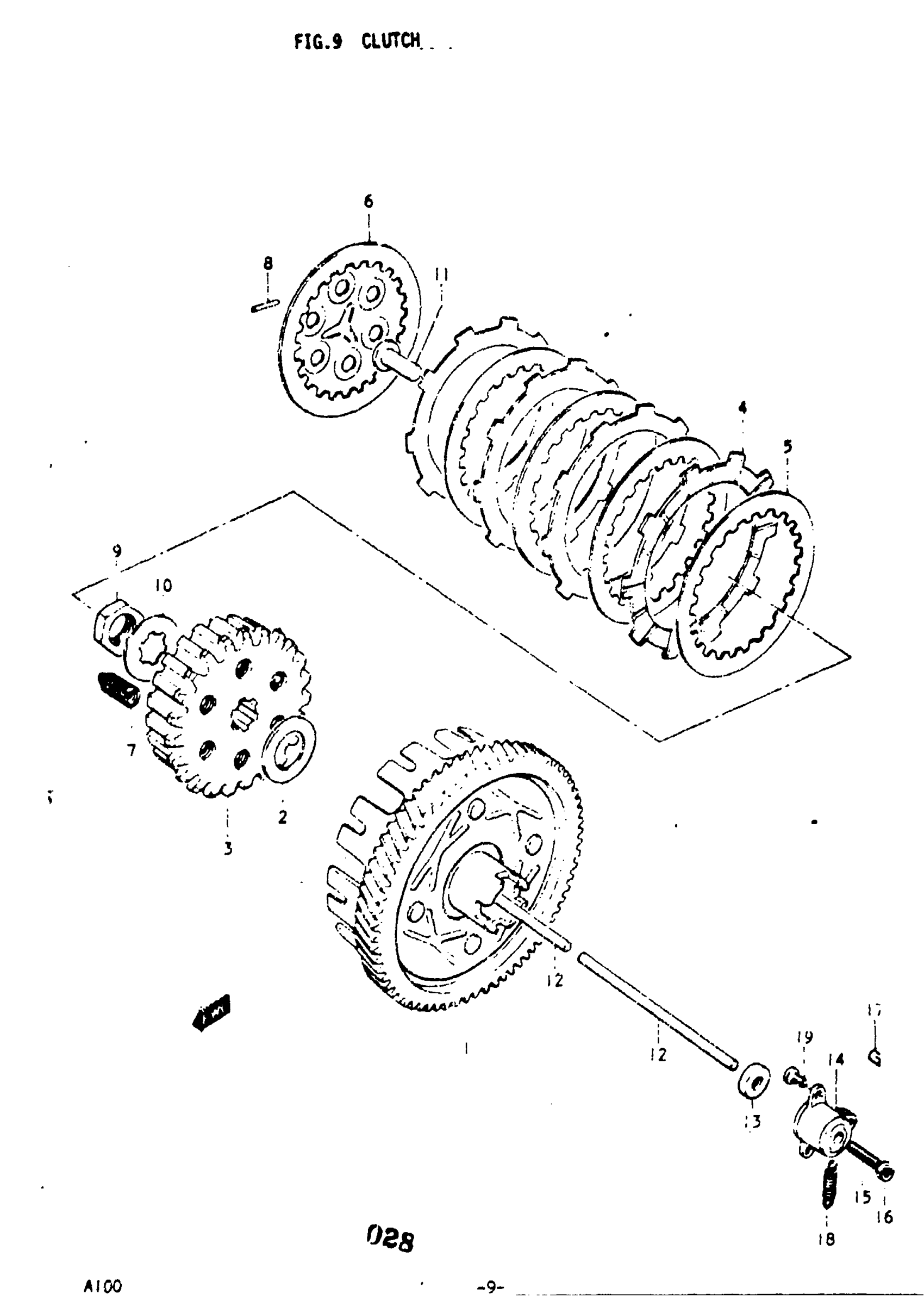

Suzuki A100 (1977) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B; NT:50 This part replaces 21200-12001.

21200-12005

Unavailable

2

WASHER | A,B; 17x28x1.5

08211-17282

$2.70

3

NO DESCRIPTION AVAILABLE | A,B This part replaces 21411-23000.

21411-23010

Unavailable

4

PLATE,CLUTCH DR | A,B This part replaces 21441-12000.

21441-42G00

$17.17

5

PLATE, CLUTCH DRIVEN | A,B

21451-23000

$9.27

6

PLATE, CLUTCH PRESSURE | A,B

21460-23000

Unavailable

7

SPRING, CLUTCH | A,B

09443-12003

$2.47

8

PIN | A,B

09261-02001

$1.56

9

NUT | A,B This part replaces 09140-16001.

09140-16005

$3.75

10

WASHER | A,B

09167-17002

$1.91

11

ROD, CLUTCH RELEASE | A,B

23121-09210

Unavailable

12

ROD, CLUTCH PUSH | A,B

23111-12000

$6.47

13

SEAL OIL(5.5X16 | A,B This part replaces 09285-05004.

09285-05007

$4.47

14

SCREW ASSY, CLUTCH RELEASE | A,B; Includes Item(s) 15 - 16

23200-05030

Unavailable

15

SCREW | A,B This part replaces 09134-06001.

09134-06010

$3.12

16

.NUT | A,B This part replaces 08311-31068.

08310-00067

$2.13

17

PIECE, ARM AND | A,B

23222-07000

$4.52

18

SPRING | A,B

09443-08001

$2.92

19

SCREW, HEADLAMP (5X12) | A,B This part replaces 02121-05127.

09126-05003

$2.06
