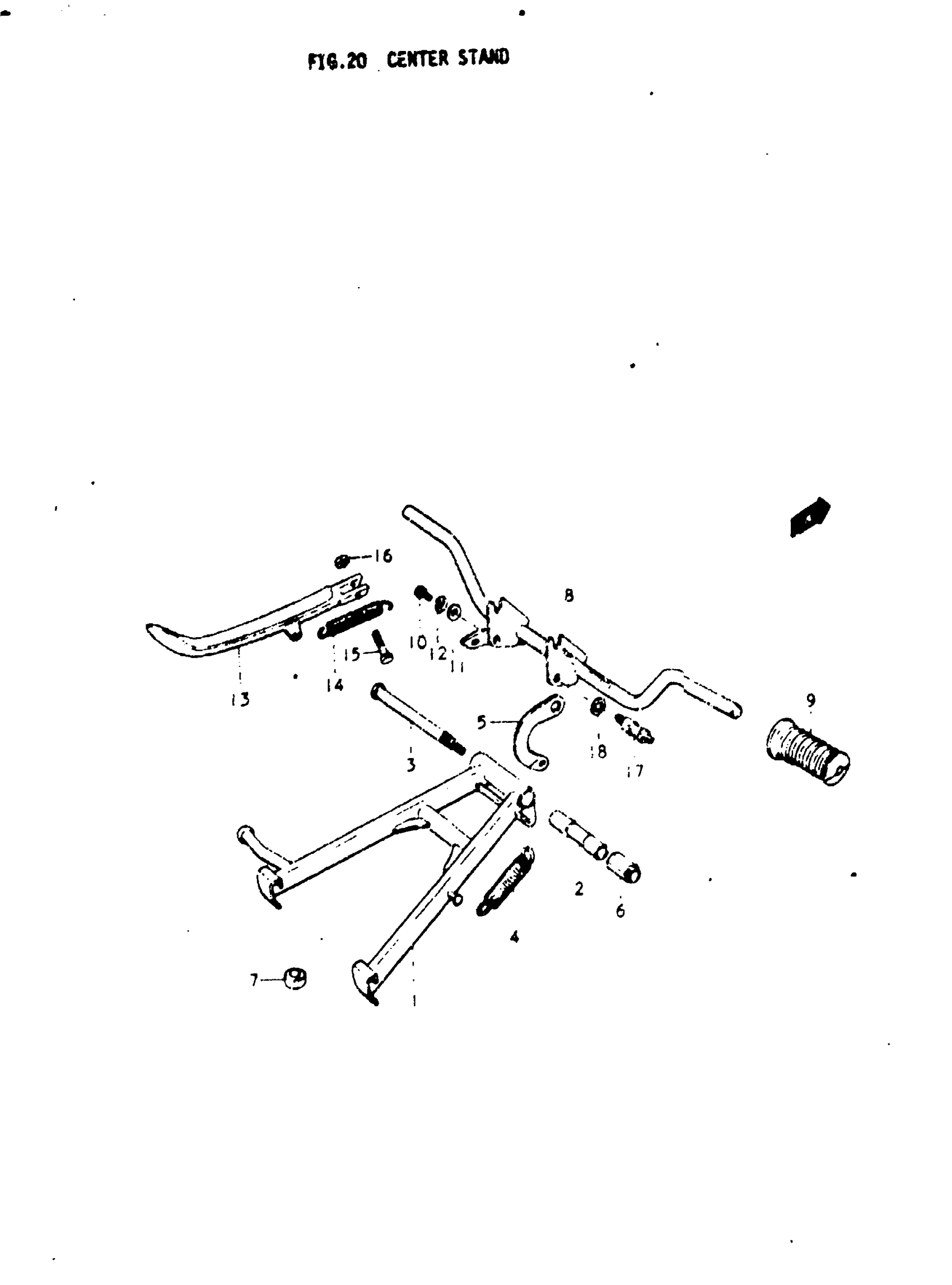

Suzuki A100 (1977) CENTER STAND Diagram

#

Description
Price

1

STAND,CENTER | A,B This part replaces 42100-23200.

42100-39311

Unavailable

2

SPACER | A,B

42211-03001

Unavailable

3

NO DESCRIPTION AVAILABLE | A,B This part replaces 42221-03000.

42221-03001

Unavailable

4

SPRING | A,B This part replaces 09443-16002.

09443-16007

Unavailable

5

HOOK,CENTER STA | A,B This part replaces 42251-03002.

42251-03004

Unavailable

6

NUT | A,B

42231-09000

Unavailable

7

CUSHION | A,B

09321-10001

$2.61

8

FOOTRESTBAR | A,B

43510-12001

Unavailable

9

RUBBER | A,B This part replaces 43551-03000.

43551-03001

$7.22

10

PLUG, DRAIN | A,B This part replaces 01122-08168.

01500-0816B

$2.50

11

WASHER | A,B This part replaces 08322-21088.

08322-01087

$2.13

12

LOCK WASHER | A,B This part replaces 08321-21083.

08321-0108A

$1.84

13

STAND, SIDE | A,B This part replaces 42310-35700.

42310-19010

Unavailable

14

SPRING | A,B This part replaces 09443-14005.

09443-14017

$3.04

15

BOLT | A,B; 10x27 This part replaces 09100-10007.

09100-10287

$3.48

16

NUT | A,B This part replaces 08312-31108.

08310-00107

$2.19

17

STOPPER | A,B

43221-03001

Unavailable

18

WASHER | A,B This part replaces 08322-21088.

08322-01087

$2.13
