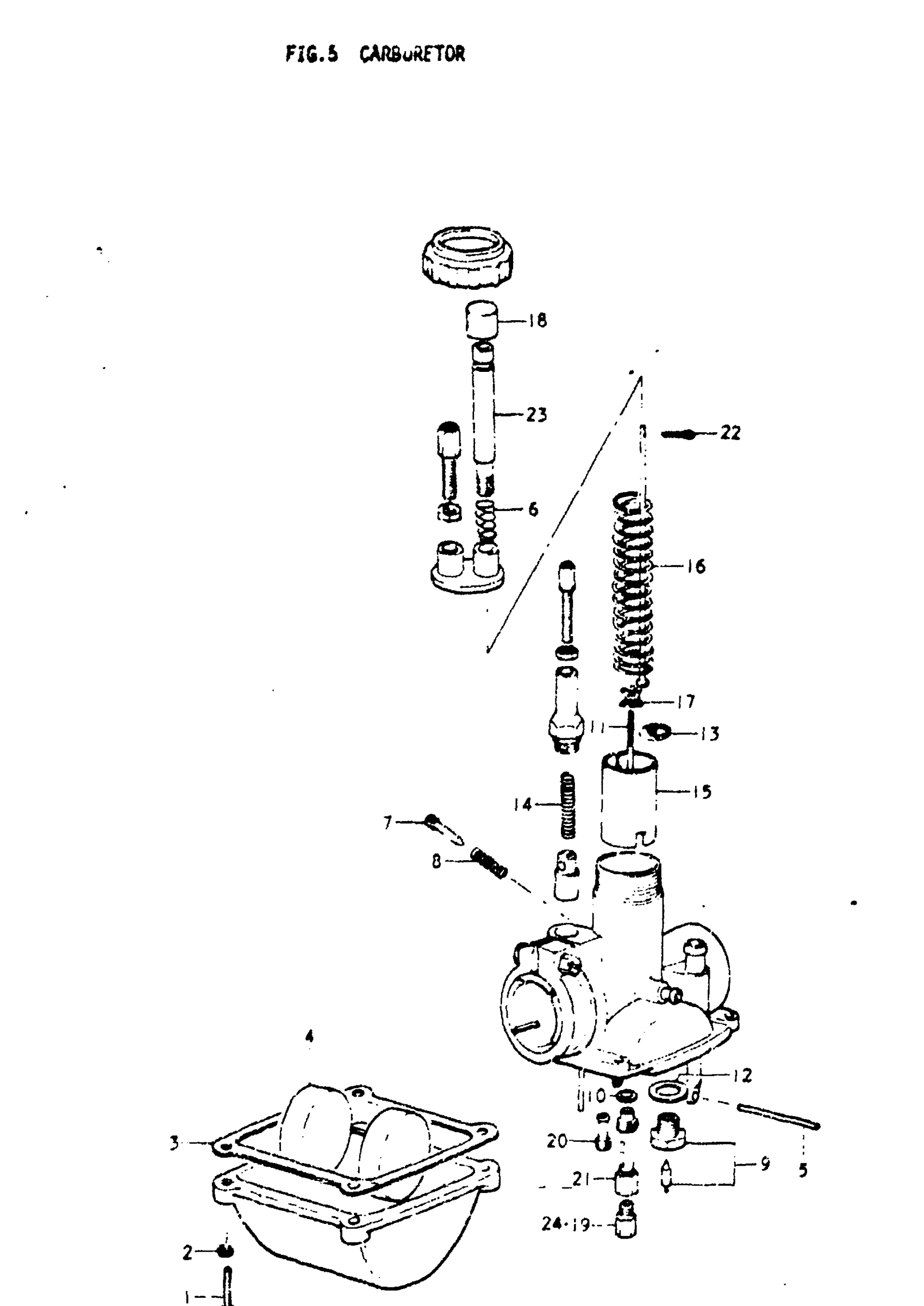

Suzuki A100 (1977) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | A,B; Includes Item(s) 1 - 23 This part replaces 13200-12602.

13200-12603

Unavailable

1

SCREW | A,B This part replaces 02111-04208.

02112-0420A

$1.49

2

LOCK WASHER | A,B This part replaces 08321-21048.

08321-0104A

$1.84

3

GASKET, FLOAT CHAMBER | A,B

13251-09211

$5.58

4

FLOAT | A,B

13252-09210

$20.76

5

.PIN, FLOAT | A,B

13254-01010

$3.62

6

SPRING | A,B

13268-05010

$5.67

7

SCREW, PILOT AIR ADJUSTER | A,B

13269-01010

$14.20

8

SPRING | A,B

13268-01010

$5.28

9

VALVE ASSY, NEEDLE | A,B

13370-09211

$62.07

10

WASHER, NEEDLE JET STOP | A,B

13382-03110

$2.80

11

NEEDLE, JET | A,B

13383-12011

Unavailable

12

GASKET, VALVE SEAT | A,B

13392-01010

$2.15

13

E RING | A,B This part replaces 13394-12110.

13394-40D00

$5.43

14

SPRING, PLUNGER | A,B

13417-01010

$4.62

15

NO DESCRIPTION AVAILABLE | A,B; CA:2.5 This part replaces 13551-12110.

13551-12611

Unavailable

16

SPRING | A,B

13573-36110

$6.20

17

SEAT, SPRING | A,B

13581-09210

$6.55

18

CAP | A,B

13688-08010

$4.43

19

JET, MAIN | A,B; #75

09491-75001

Unavailable

20

JET, PILOT | A,B; #35

09492-35004

Unavailable

21

JET, NEEDLE | A,B; E-0

09494-00029

Unavailable

22

PIN | A,B This part replaces 04111-12108.

04111-1210A

$1.50

23

SCREW, THROTTLE VALVE STOP | A,B

13267-05010

$14.20

24

JET, MAIN | A,B; #70 OPT

09491-70001

Unavailable

24

JET, MAIN | A,B; #80 OPT

09491-80001

Unavailable

24

JET, MAIN | A,B; #85 OPT

09491-85001

Unavailable

24

JET, MAIN | A,B; #90 OPT

09491-90001

Unavailable

24

JET, MAIN | A,B; #95 OPT

09491-95001

Unavailable
