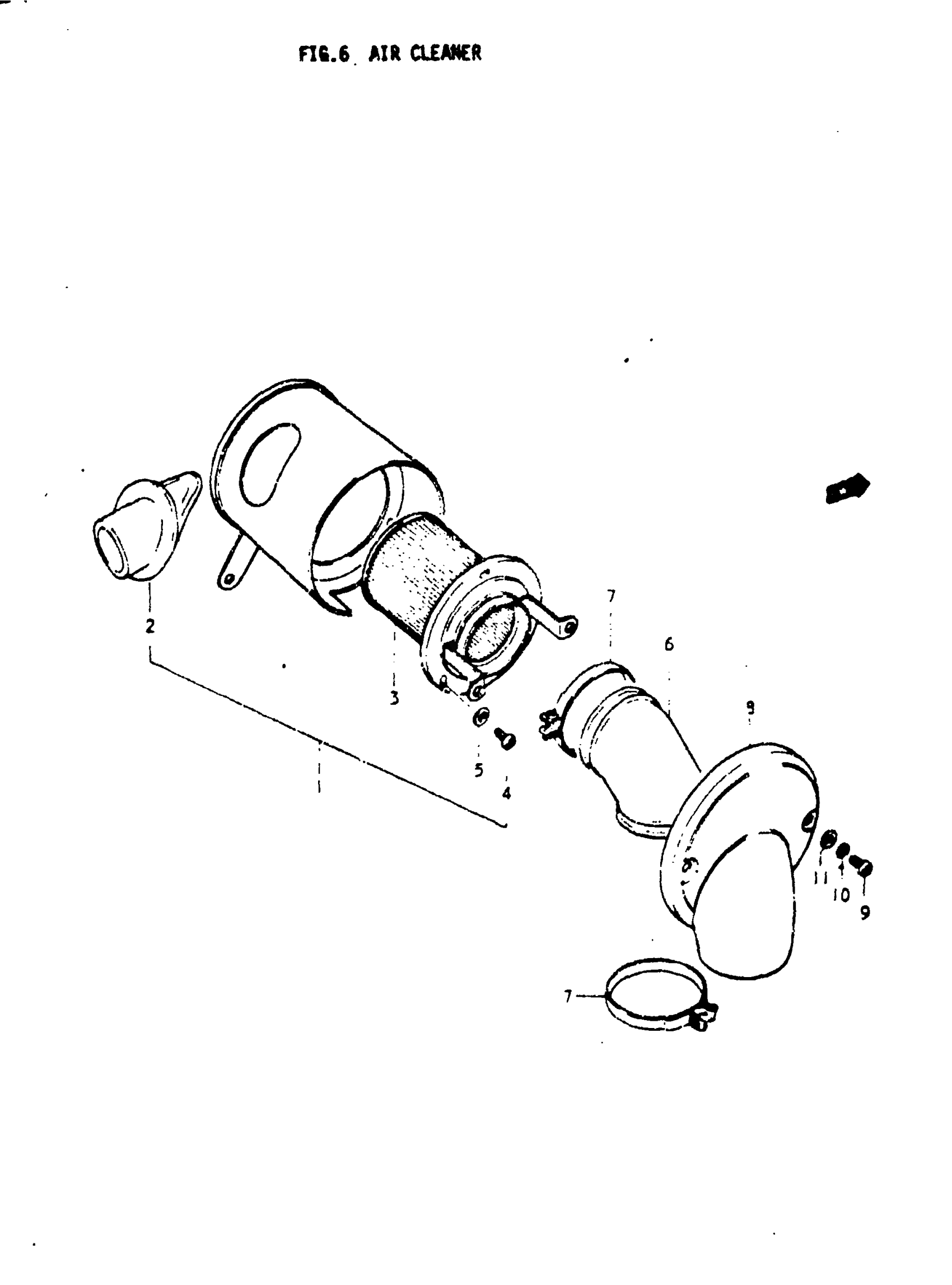

Suzuki A100 (1977) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | A,B; Includes Item(s) 2 - 5

13700-12022-019

Unavailable

2

PIPE, INLET | A,B

13721-12020

Unavailable

3

FILTER | A,B

13780-12021

Unavailable

4

SCREW | A,B This part replaces 02111-05127.

02112-05127

$1.97

5

WASHER | A,B This part replaces 08322-21058.

08322-01057

$2.13

6

HOSE, AIR INLET | A,B

13881-12001

Unavailable

7

CLAMP | A,B This part replaces 09402-62306.

09402-62208

$6.58

8

CAP, AIR CLEANER RH | A,B

13771-12001

Unavailable

9

SCREW | A,B This part replaces 02112-05168.

02112-05167

$1.97

10

LOCK WASHER | A,B This part replaces 08321-21058.

08321-0105A

$1.84

11

WASHER | A,B This part replaces 08322-21058.

08322-01057

$2.13
