1969 Suzuki A100 Tail/brake Lamp Diagram

← All diagrams

Find the part on the Tail/brake Lamp diagram for your 1969 Suzuki A100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

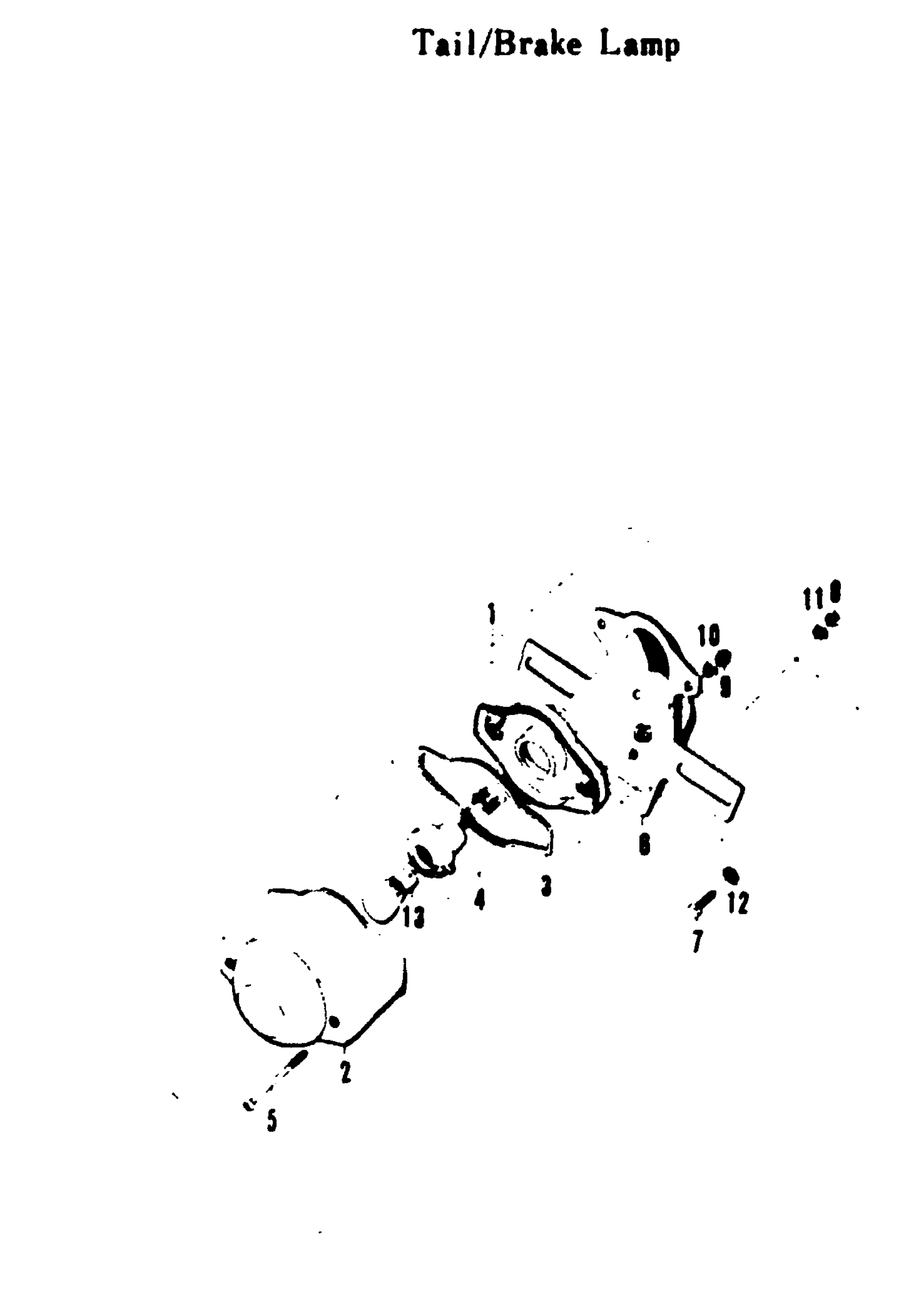

1969 Suzuki A100 Tail/brake Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAIL/BRAKE LAMP ASS'Y | .3 21CP

35710-12610

—
Out of stock

2

TAIL/BRAKE LAMP LENS

35712-11011

1
Out of stock

3

TAIL/BRAKE LAMP LENS GASKET

35713-11010

1
Out of stock

4

TAIL/BRAKE LAMP SOCKET

35715-11012

—
Out of stock

5

TAIL/BRAKE LAMP LENS SCREW | O

35723-03312

2
Out of stock

5

TAIL/BRAKE LAMP LENS SCREW

35723-03310

2
Out of stock

6

TAIL/BRAKE LAMP BRACKET

35726-11012

—
Out of stock

7

HEXAGON HOLT

01111-06128

—
Out of stock

8

.NUT This part replaces 08311-11068.

08310-00067

3
Out of stock

9

CROWN NUT

08313-11047

4
Out of stock

9

CROWN NUT

08313-11042

4
Out of stock

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

2
Out of stock

11

3

$2.28

In stock

12

WASHER This part replaces 08322-21068.

08322-01067

3
Out of stock
