Find the part on the Front Wheel-Rear Wheel diagram for your 1969 Suzuki A100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

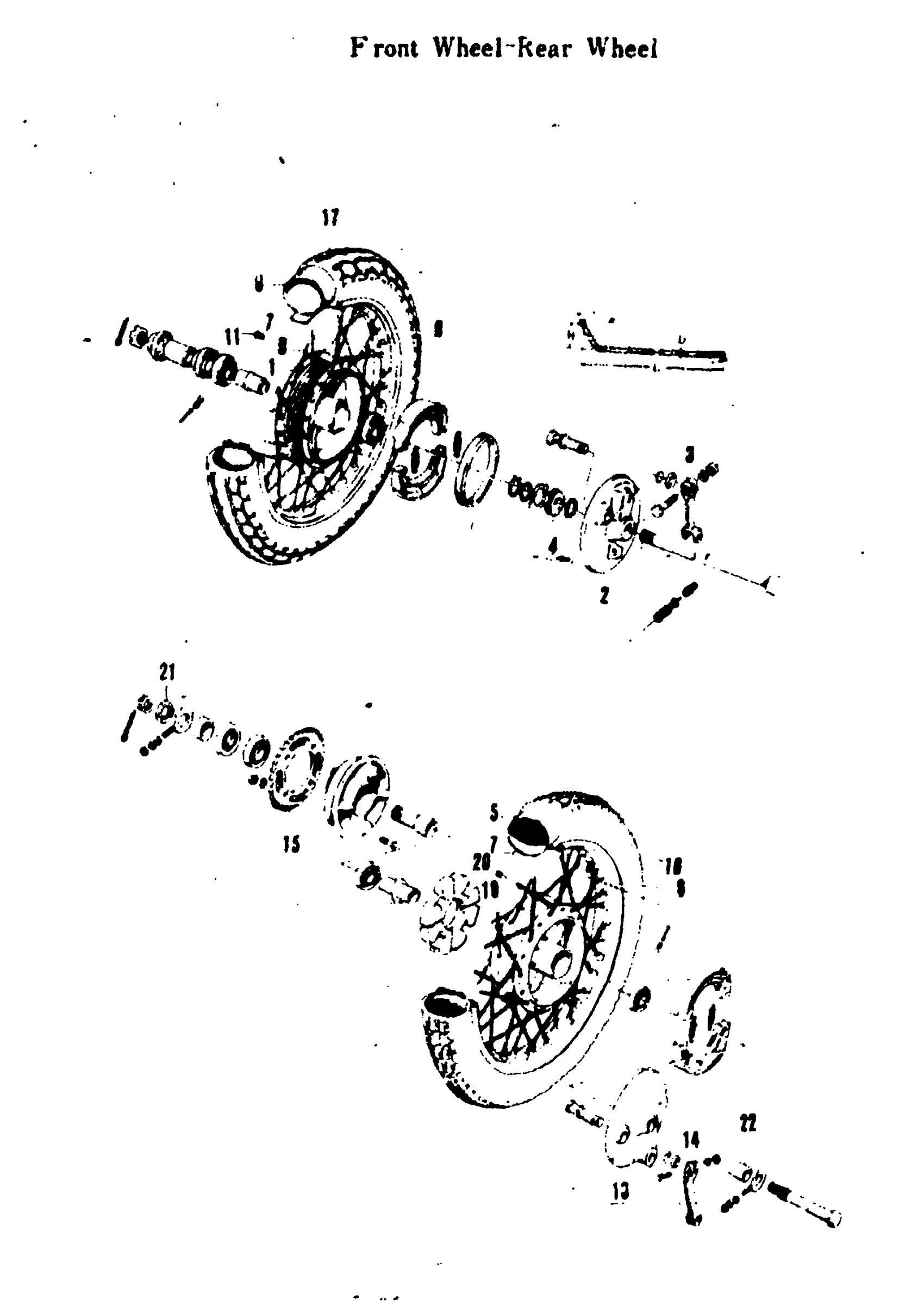

1969 Suzuki A100 Front Wheel-Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

FRONT HUB ASS'Y

54000-12836

—
Out of stock

1

FRONT HUB DRUM

54110-07600

—
Out of stock

2

FRONT HUB PANEL

54210-12602

—
Out of stock

3

1

$18.90

In stock

4

NO DESCRIPTION AVAILABLE This part replaces 54611-07600.

54611-07601

1
Out of stock

5

REAR INNER TUBE

55200-11600

—
Out of stock

6

FRONT INNER TUBE

55200-14010

1
Out of stock

7

2

$4.49

In stock

7

SPOKE SET FR | REF NOS 9-11 This part replaces 55300-12825.

55320-12100

1
Out of stock

8

WHEEL RIM

55311-12120

2
Out of stock

9

FRONT INNER SPOKE | 1) L=165.5(6.52) a=102 H=5

55321-12120

—
Out of stock

10

FRONT OUTER SPOKE | 1) L=165(6.5) a=85 H=8.2(0

55322-12120

—
Out of stock

11

FRONT SPOKE NIPPLE

55325-03020

—
Out of stock

11

REAR HUB ASS'Y

64000-12837

—
Out of stock

12

REAR HUB DRUM

64110-01600

—
Out of stock

13

REAR HUB PANEL

64210-01603

—
Out of stock

14

RR BRAKE LEVER This part replaces 64451-20000.

64451-20001

1
Out of stock

15

REAR SPROCKET

64511-12740

1
Out of stock

16

REAR TUBE

65100-10010

—
Out of stock

17

FRONT TIRE

65100-12110

—
Out of stock

17

NO DESCRIPTION AVAILABLE | REF NOS 18~20 This part replaces 65300-12828.

65320-12121

1
Out of stock

18

REAR INNER SPOKE | 3) L=173.5(6.83) a=100 H=

65321-12120

—
Out of stock

19

REAR OUTER SPOKE | 3) L=173(6.75) a=84.5 H=8

65322-12120

—
Out of stock

20

REAR SPOKE NIPPLE

65325-03020

—
Out of stock

21

1

$4.08

In stock
