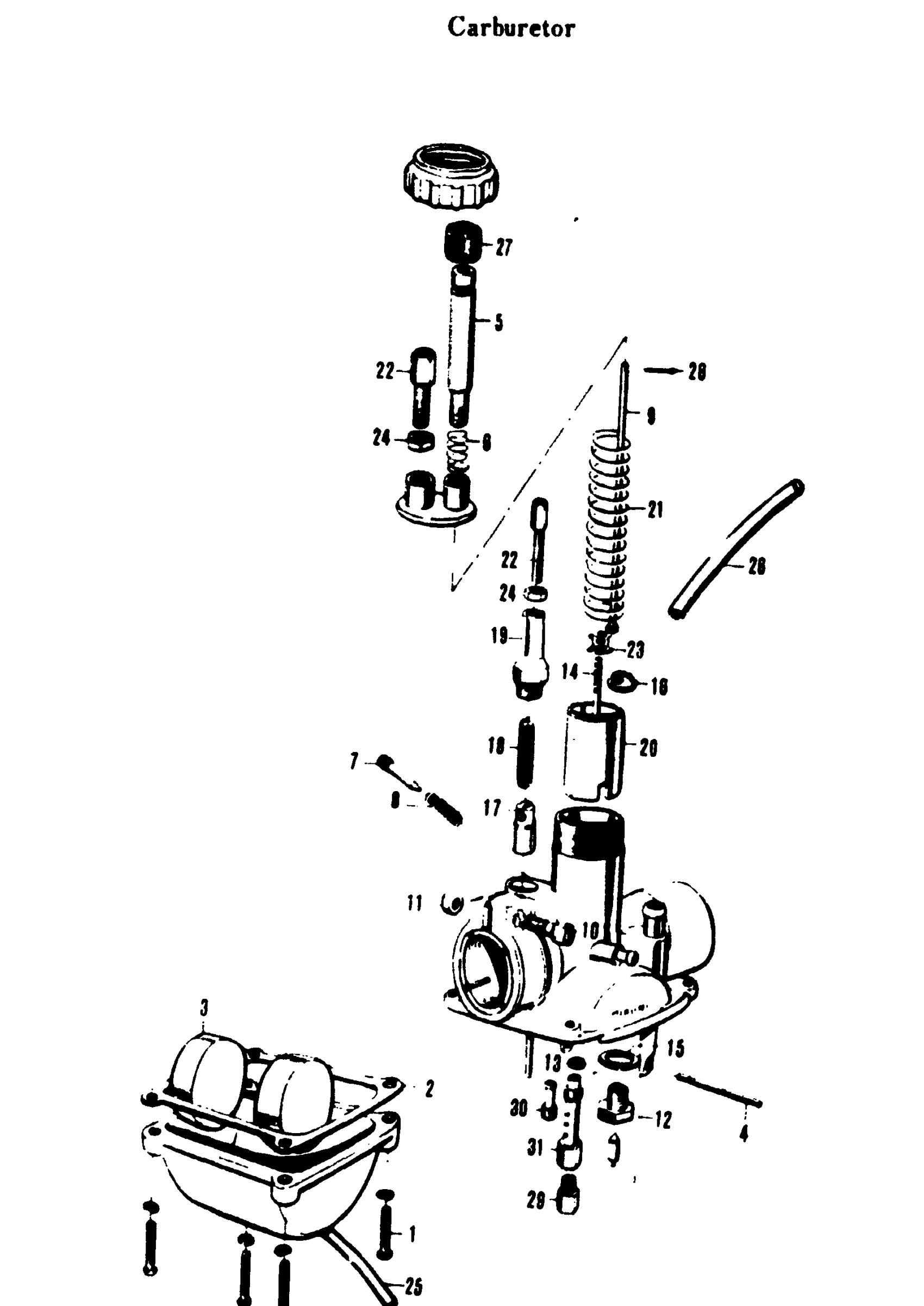

Suzuki A100 (1969) CARBURETOR Diagram

#

Description
Price

0

CARBORETOR ASS'Y | 00

13200-12601

Unavailable

1

FLOAT CHAMBER CROSS HEAD SCRE | 00

13248-02010

Unavailable

2

FLOAT CHAMBER GASKET | 00

13251-09211

$5.48

3

FLOAT | 00

13252-09210

$20.43

4

.PIN, FLOAT | 00

13254-01010

$3.56

5

THROTTLE VALVE STOP SCREW | 00

13267-05010

$16.03

6

THROTTLE VALVE STOP SCREW SPR | 0000

13268-05010

$6.40

7

PILOT AIR ADJUSTING SCREW | 00

13269-01010

$15.58

8

PILOT AIR ADJUSTING SCREW SPR | 0000

13271-01010

Unavailable

9

THROTTLE VALVE STOP ROD | 00

13296-11010

$7.57

10

CARBORATOR CLIP HOLT | 00

13323-03010

Unavailable

11

CARBORATOR CLIP NUT | 00

13324-03010

Unavailable

12

NEEDLE VALVE ASS'Y | 00

13370-09211

$68.12

13

NEEDLE JET STOP WASHER | 00; ID=5.4(0.21) OD=10(.6(0.06)

13382-03110

$2.80

14

JET NEEDLE | 00

13383-12011

Unavailable

15

VALVE SEAT GASKET | 00

13392-01010

$1.97

16

E RING | 00 This part replaces 13394-12110.

13394-40D00

$5.97

17

STARTER PLUNGER COMP | 00

13411-01010

$20.82

18

PLUNGER SPRING | 00

13417-01010

$4.56

19

STARTER PLUNGER | 00 This part replaces 13418-07010.

13418-63110

Unavailable

20

NO DESCRIPTION AVAILABLE | 00 This part replaces 13551-12110.

13551-12611

Unavailable

21

SPRING, THROTTLE VALVE | 00; ID=16.4(0.64) OD=1872(2.83) This part replaces 13573-09210.

13573-36110

$6.80

22

ADJUSTER | 00 This part replaces 13577-03010.

13577-48110

$9.37

23

SPRING SEAT | 00

13581-09210

$7.40

24

CABLE ADJUSTER LOCK NUT | 00

13661-03010

$6.22

25

OVERFLOW HOSE | 00

13684-12110

Unavailable

26

AIR VENT HOSE | 00

13686-12110

Unavailable

27

THROTTLE VALVE STEP SCREW CAP | 00

13688-08010

$5.00

28

CUTTER PIP

04111-12088

Unavailable

29

MAIN JET | 00; #73

09491-75001

Unavailable

29

MAIN JET | 00; #70.OPT

09491-70001

Unavailable

29

MAIN JET | 00; #80.OPT

09491-80001

Unavailable

29

MAIN JET | 00; #83.OPT

09491-85001

Unavailable

29

MAIN JET | 00; #90.OPT

09491-90001

Unavailable

30

PILOT JET | 0

09492-40002

Unavailable
