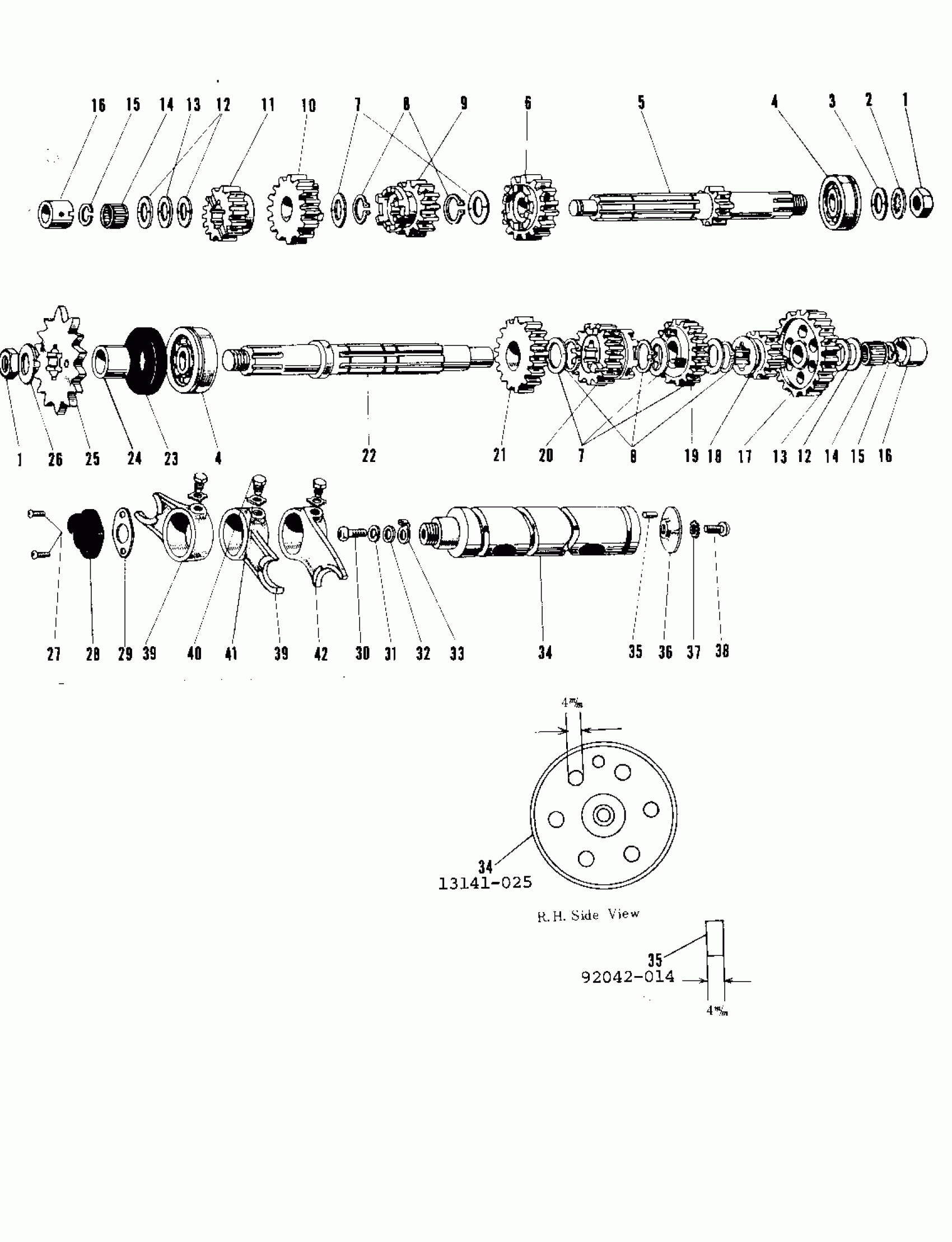

Kawasaki A1-B TRANSMISSION Diagram
#
1
NUT,18MM
92015-019
$7.22
2
WASHER LOCK 18MM
463G1800
$3.33
3
WASHER PL 19X36.5X0.
92022-074
Unavailable
4
BALL BEARING 6305N
92045-020
Unavailable
5
SHAFT DRIVE
13127-012
Unavailable
6
TOP GEAR DRIVE SHAFT
13136-017
Unavailable
7
WASHER 25MM
92022-076
Unavailable
8
RING-SNAP,24MM
92033-026
$8.79
9
3RD GEAR DRIVE SHAFT
13132-009
Unavailable
10
4TH GEAR DRIVE SHAFT
13134-003
Unavailable
11
2ND GEAR DRIVE SHAFT
13130-008
Unavailable
12
WASHER 17MM
92022-075
Unavailable
13
WASHER THRUST
92026-021
Unavailable
14
BEARING NEEDLE
92046-005
Unavailable
15
CIRCLIP 17MM
92033-009
Unavailable
16
BUSH TRANSMMISION SFT
92028-043
$29.36
17
LOW GEAR OUTPUT SHAFT
13129-014
Unavailable
18
TOP GEAR OUTPUT SHAFT
13137-007
Unavailable
19
3RD GEAR OUTPUT SHAFT
13133-007
Unavailable
20
4TH GEAR OUTPUT SHAFT
13135-003
Unavailable
21
2ND GEAR OUTPUT SHAFT
13131-010
Unavailable
22
SHAFT OUTPUT
13128-013
Unavailable
23
OIL SEAL SC326210
92050-016
Unavailable
24
SPACER-ENG SPROCKET
92026-1024
Unavailable
25
ENGINE SPROCKET 15T
13144-025
Unavailable
26
WASHER,LOCK,18MM
92024-067
Unavailable
27
SCREW PAN HEAD 5X16
220B0516
$2.06
27
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
28
SWITCH,NEUTRAL
13151-1001
$14.51
29
GASKET,NEUTRAL SWITCH
13146-002
$4.35
30
UNAVAILABLE IN PRICE BOOK
92011-003
Unavailable
31
WASHER SPRING 6MM
461F0600
$0.69
32
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
33
ROTOR,TOP & NEUTRAL
21007-1003
$7.62
34
DRUM GEAR CHANGE
13141-025
Unavailable
35
PIN GEAR CHANGE DRUM
92043-004
$3.25
35
PIN,DOWEL,4X15.8
92042-014
$0.43
36
PLATE CHANGE DRUM PIN
13142-004
Unavailable
37
WASHER LOCK 6MM
464H0600
Unavailable
38
SCREW PAN HEAD 6X12
220B0612
Unavailable
39
FORK SELECTOR TOP
13140-013
Unavailable
40
PIN SELECT FORK GUIDE
92043-016
Unavailable
41
WASHER LOCK 10MM
92031-001
$11.45
42
FORK-SELECTOR,LOW
13140-014
Unavailable
SELECTOR FORK LOW
13140-004
Unavailable
