Description

Price

1

ARM-SWING

33001-030

$142.21

2

SLEEVE-SWING ARM LONG

33034-014

Unavailable

3

SLEEVE-SWING ARM,SHRT

33034-013

Unavailable

4

BUSH-SWING ARM

33033-008

Unavailable

5

HOLDER DUST SHIELD

33035-001

Unavailable

6

DUST SHIELD PIVOT SFT

92093-004

Unavailable

7

SHAFT SWING ARM PIVOT

33032-012

Unavailable

8

WASHER-PLAIN-SMALL,14MM

410B1400

$2.01

9

NUT,14MM

314B1400

Unavailable

10

NUT-HEX-FINE,14MM

315B1400

$2.03

11

ADJUSTER CHAIN L.H

33040-032

Unavailable

12

ADJUSTER CHAIN R.H

33040-033

Unavailable

13

NUT 8MM

312B0800

$0.58

14

BOLT,8X50

92001-1399

$9.48

15

BOLT HEX HEAD 10X35

113N1035

$9.14

16

WASHER SPRING 10MM

461F1000

$0.67

17

COLLAR,SHOCKABSORBER

45016-003

$15.92

18

BUSH SHCK ABS RUBBER

45017-001

$12.15

19

NUT,CAP,10MM

92020-003

$6.52

20

WASHER,10.5X26X2.3

92022-044

$3.92

21

UNAVAILABLE IN PRICE BOOK

45015-002-10

Unavailable

22

SHOCK ABSORBER REAR

45014-024

Unavailable

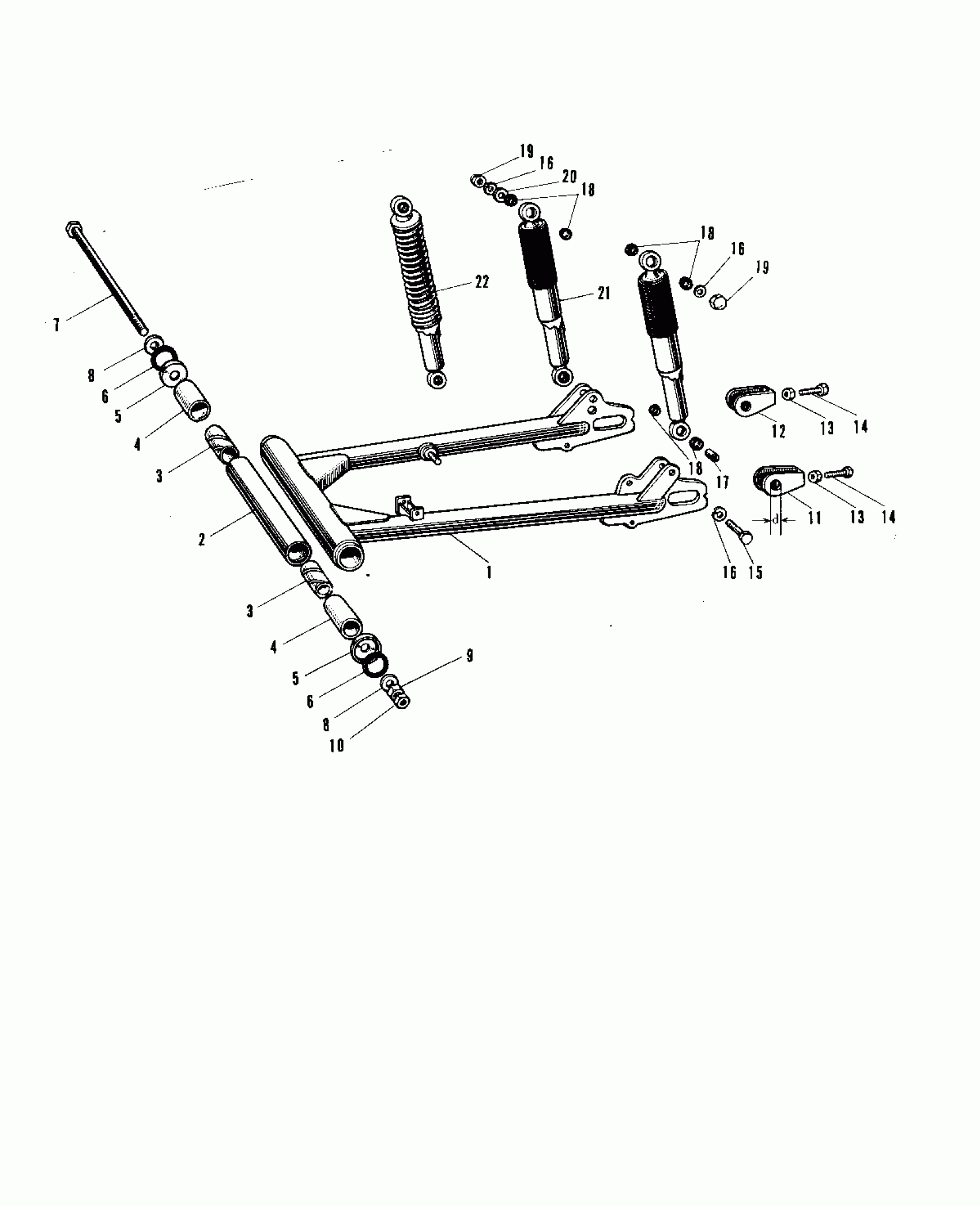

Kawasaki A1-B SWING ARM/SHOCK ABSORBERS A1A-A7SSA Diagram

ARM-SWING

SLEEVE-SWING ARM LONG

SLEEVE-SWING ARM,SHRT

BUSH-SWING ARM

HOLDER DUST SHIELD

DUST SHIELD PIVOT SFT

SHAFT SWING ARM PIVOT

WASHER-PLAIN-SMALL,14MM

NUT,14MM

NUT-HEX-FINE,14MM

ADJUSTER CHAIN L.H

ADJUSTER CHAIN R.H

NUT 8MM

BOLT,8X50

BOLT HEX HEAD 10X35

WASHER SPRING 10MM

COLLAR,SHOCKABSORBER

BUSH SHCK ABS RUBBER

NUT,CAP,10MM

WASHER,10.5X26X2.3

UNAVAILABLE IN PRICE BOOK

SHOCK ABSORBER REAR
