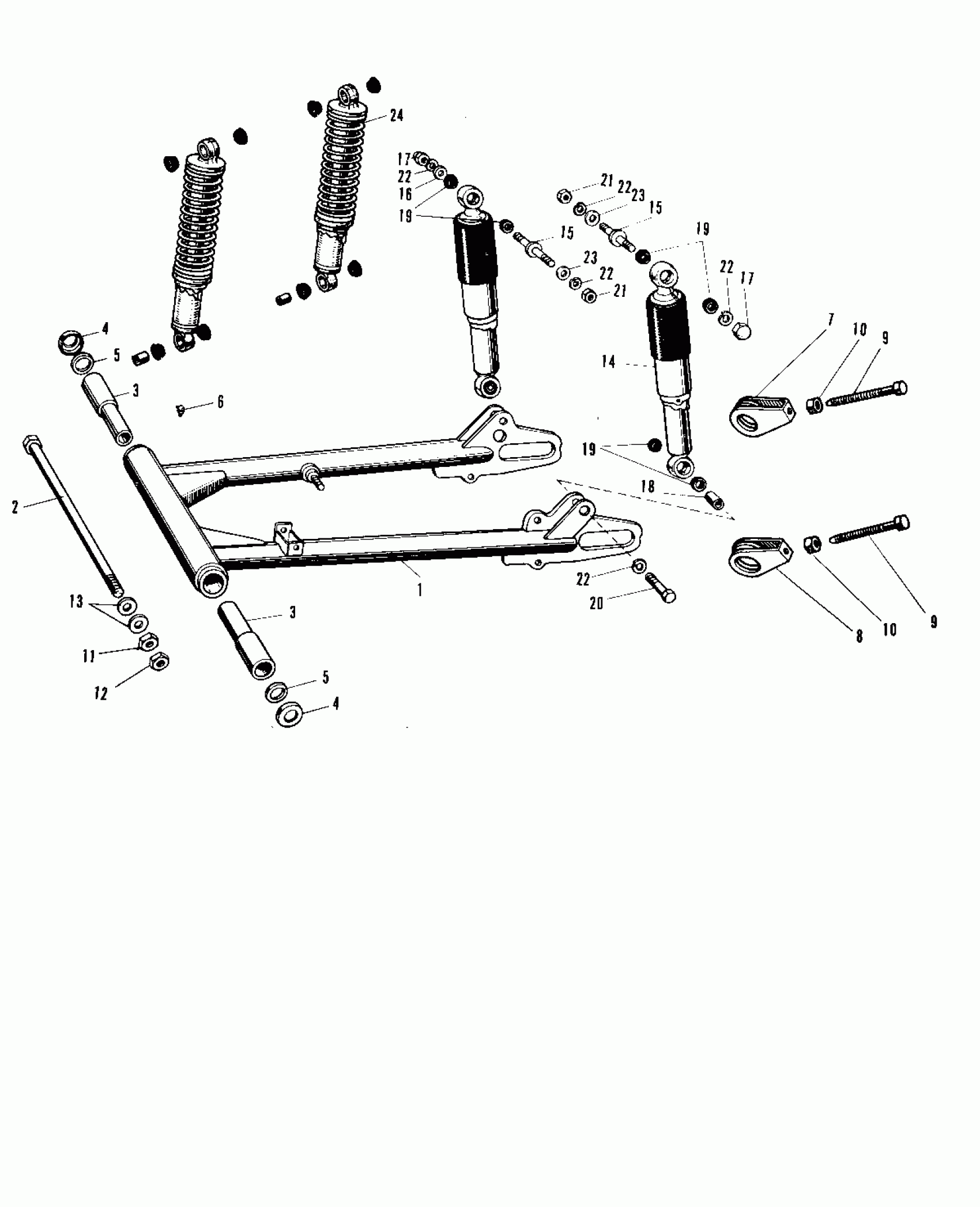

Kawasaki A1-B SWING ARM/SHOCK ABSORBERS A1-A7SS Diagram
#
Description
Price
1
ARM NET-NWING
33002-015
$145.29
2
SHAFT SWING ARM PIVOT
33032-012
Unavailable
3
SLEEVE SWING ARM SHT
33034-002
Unavailable
3
SLEEVE SWING ARM SHT
33034-003
Unavailable
4
DUST SHIELD PIVOT SFT
92093-004
Unavailable
5
HOLDER DUST SHIELD
33035-001
Unavailable
6
GREASE NIPPLE
92005-002
Unavailable
7
ADJUSTER CHAIN R.H
33040-022
Unavailable
7
ADJUSTER CHAIN R.H
33040-033
Unavailable
8
ADJUSTER SET-CHAIN,L
33043-001
Unavailable
8
ADJUSTER CHAIN L.H
33040-032
Unavailable
9
BOLT CHAIN ADJUST
92001-009
Unavailable
9
BOLT,8X50
92001-1399
$9.48
10
NUT 6MM
312B0600
$0.72
10
NUT 8MM
312B0800
$0.58
11
NUT,14MM
314B1400
Unavailable
12
NUT-HEX-FINE,14MM
315B1400
$2.03
13
WASHER-PLAIN-SMALL,14MM
410B1400
$2.01
14
UNAVAILABLE IN PRICE BOOK
45015-002-10
Unavailable
14
UNAVAILABLE IN PRICE BOOK
45015-002-24
Unavailable
14
SHOCK ABSBR-RR,C.BLUE
45015-002-27
$89.02
16
WASHER,10.5X26X2.3
92022-044
$3.92
17
NUT,CAP,10MM
92020-003
$6.52
18
COLLAR,SHOCKABSORBER
45016-003
$15.92
19
BUSH SHCK ABS RUBBER
45017-001
$12.15
20
BOLT HEX HEAD 10X35
113N1035
$9.14
21
NUT-HEX-FINE,10MM
314B1000
$0.67
22
WASHER SPRING 10MM
461F1000
$0.67
23
WASHER-PLAIN,10MM
411B1000
$0.93
24
SHOCK ABSORBER REAR
45014-024
$100.79
