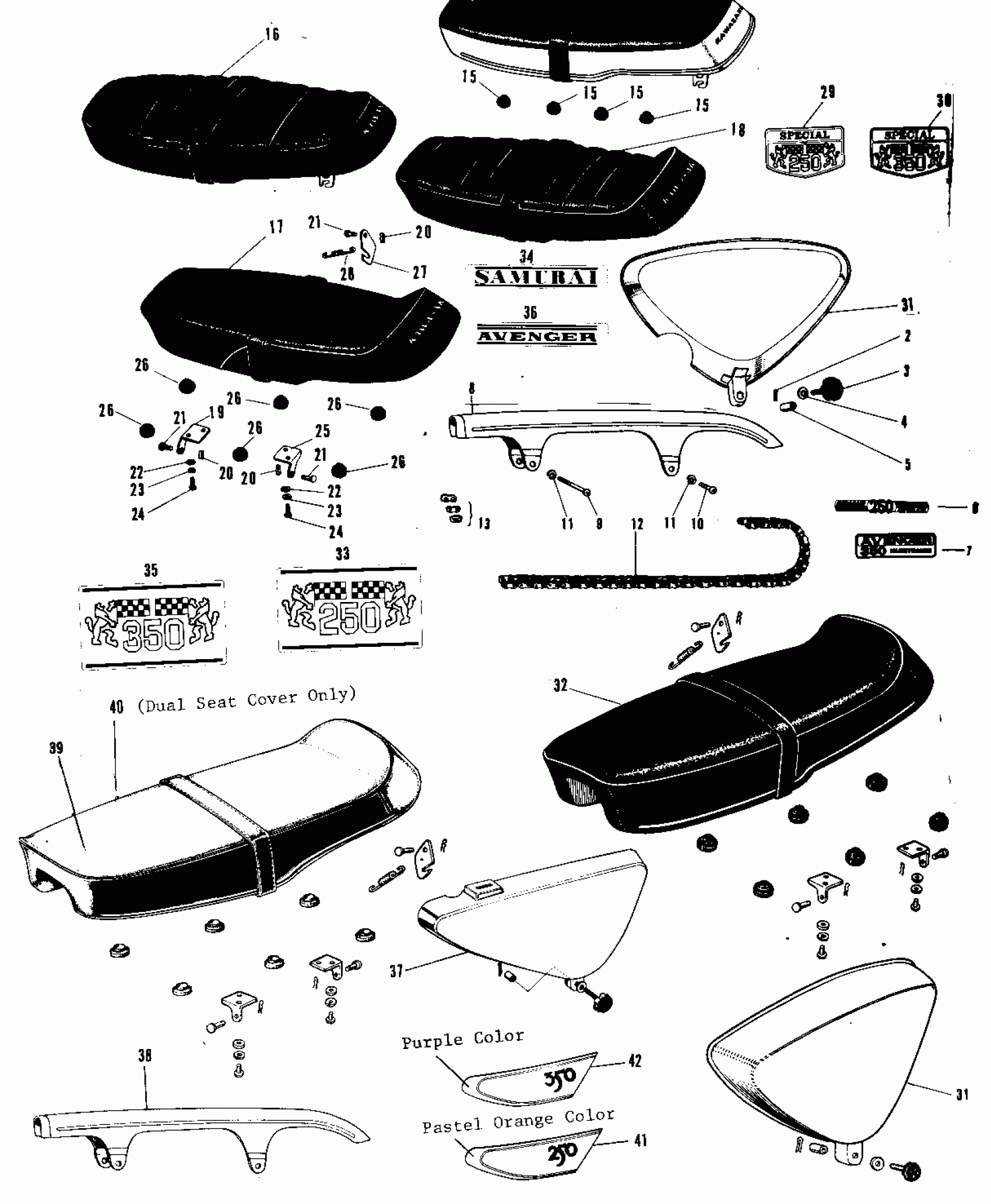

Kawasaki A1-B SEAT/SIDE COVERS Diagram
#
1
COVER L.H SIDE C.RED
36001-018-24
Unavailable
1
COVER L.H SIDE SILVER
36001-024-14
$49.30
1
COVER L.H SIDE C.RED
36001-024-24
$57.51
1
COVER L.H SIDE C.RED
36001-024-26
$36.67
1
COVER L.H SIDE C.BLUE
36001-024-27
$59.67
1
COVER L.H SIDE C.BLUE
36001-024-29
$49.30
2
PIN-COTTER,1.6X15
550D1615
Unavailable
3
KNOB L.H SIDE COVER
92077-016
$6.25
4
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
5
RUBBER SIDE COV KNOB
92094-001
$1.16
6
EMBLEM OIL TANK
56015-012
Unavailable
8
CASE-CHAIN
36014-017
$74.21
9
SCREW PAN HEAD 6X50
220E0650
$3.85
10
SCREW PAN HEAD 6X16
220E0616
Unavailable
11
WASHER SPRING 6MM
461F0600
$0.69
12, 13
DR CHAIN 525X92H
695X5292
$16.87
13
CHAIN JOINT 525
92058-006
Unavailable
14
SEAT-DUAL
53001-029
Unavailable
15
DAMPER RUBB DUAL SEAT
92075-042
$0.54
17 19~
SEAT-DUAL
53001-040
Unavailable
18~28
SEAT-DUAL
53001-048
Unavailable
19
HINGE FRONT
53009-004
Unavailable
20
PIN COTTER 2.0X15
550D2015
$1.04
21
PIN DUAL SEAT PIVOT
53011-001
$5.59
22
WASHER PLAIN 6MM
411B0600
$2.84
23
WASHER SPRING 6MM
461F0600
$0.69
24
BOLT-UPSET,6X16
112G0616
$1.10
25
HINGE REAR
53009-005
Unavailable
26
DAMPER RUBB DUAL SEAT
92075-048
Unavailable
27
HOOK DUAL SEAT
53008-002
Unavailable
28
SPRING
53012-002
Unavailable
29
EMBLEM SIDE COVER
56015-018
Unavailable
31
COVER-L.H SIDE,PEARL
36001-024-50
Unavailable
19~28,
SEAT,DUAL
53001-061
Unavailable
33
EMBLEM
56018-029
Unavailable
34
EMBLEM
56018-032
Unavailable
37
COVER-L.H SIDE,IVORY
36001-024-56
Unavailable
38
CASE-CHAIN,BLACK
36014-038-21
Unavailable
18~28,
SEAT ASSY-DUAL
53001-068
Unavailable
40
COVER-DUAL SEAT
53003-001
Unavailable
41
EMBLEM,ORANGE
56018-047-34
$18.04
