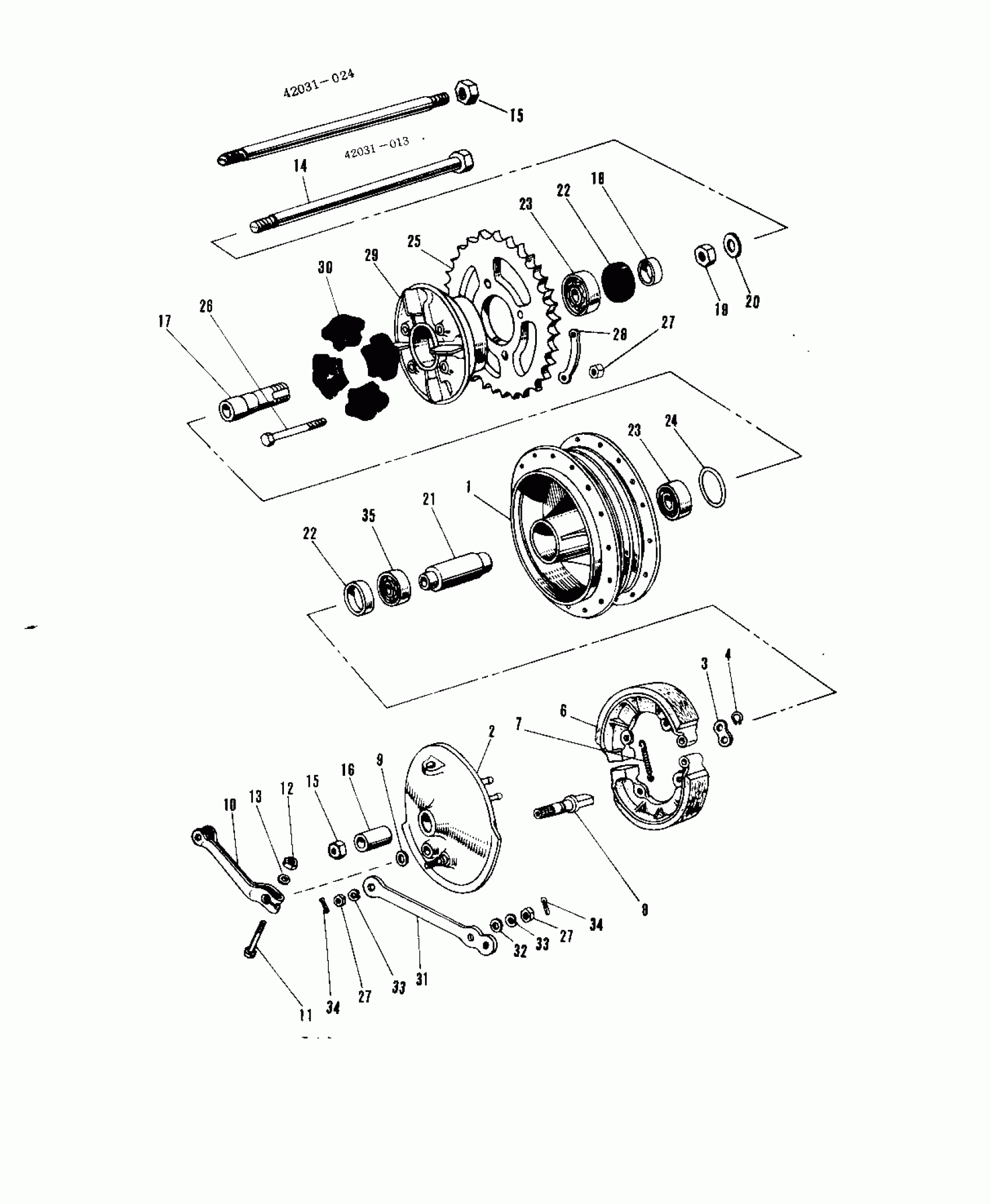

Kawasaki A1-B REAR HUB/BRAKE Diagram

#

Description
Price

1,21,2

DRUM ASSY REAR BRAKE

42005-009

Unavailable

2~13

PANEL-ASY,RR BRK,BUFF

42006-007-80

$267.51

3

WASHER,BRAKE SHOE

41045-007

Unavailable

4

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

6

SHOE REAR BRAKE

42019-003

$47.81

7

SPRING BRAKE SHOE

41049-003

$3.66

8

CAM SHAFT,REAR BRAKE

42026-015

$39.41

9

SEAL,BRAKE CAM

41051-001

$4.26

10

LEVER,REAR BRAKE CAM

42029-037

Unavailable

11

BOLT-UPSET,6X40

112G0640

$2.22

12

NUT 6MM

311B0600

$0.93

13

WASHER PLAIN 6MM

411B0600

$2.84

14

AXLE REAR

42031-013

Unavailable

14

AXLE-REAR

42031-033

$71.84

15

UNAVAILABLE IN PRICE BOOK

313Z1600

Unavailable

16

COLLAR REAR HUB R.H

42032-008

Unavailable

17

SLEEVE REAR AXLE

42036-006

Unavailable

18

COLLER RR AXLE SLEEVE

42037-006

$25.85

19

NUT SLEEVE

42045-006

Unavailable

20

WASHER,17.3X32X3.2

42046-009

$7.84

21

SPACER RR HUB BEARING

42010-008

$8.15

22

SEAL-OIL,TWC35527

92052-006

Unavailable

23

BEARING-BALL,#6205C3

601B6205

$19.57

24

O RING,60MM

671B2560

$6.91

25

REAR SPROCKET 37T

42041-028

Unavailable

26

BOLT-REAR SPROCKET

92003-087

Unavailable

27

NUT-HEX-FINE,10MM

314B1000

$0.67

28

WASHER,SPROCKET LOCK

92088-005

$6.24

17~19,

COUPLING ASSY,RR HUB

42008-012

$202.47

30

DAMPER REAR HUB SHOCK

42014-008

Unavailable

31

TORQUE LINK REAR BRK

43007-010

$12.13

32

WASHER-PLAIN,10MM

411B1000

$0.93

33

WASHER SPRING 10MM

461F1000

$0.67

34

PIN-COTTER,2.0X20

550D2020

$0.96

35

BEARING BALL #6205Z

601B6205Z

$21.69
