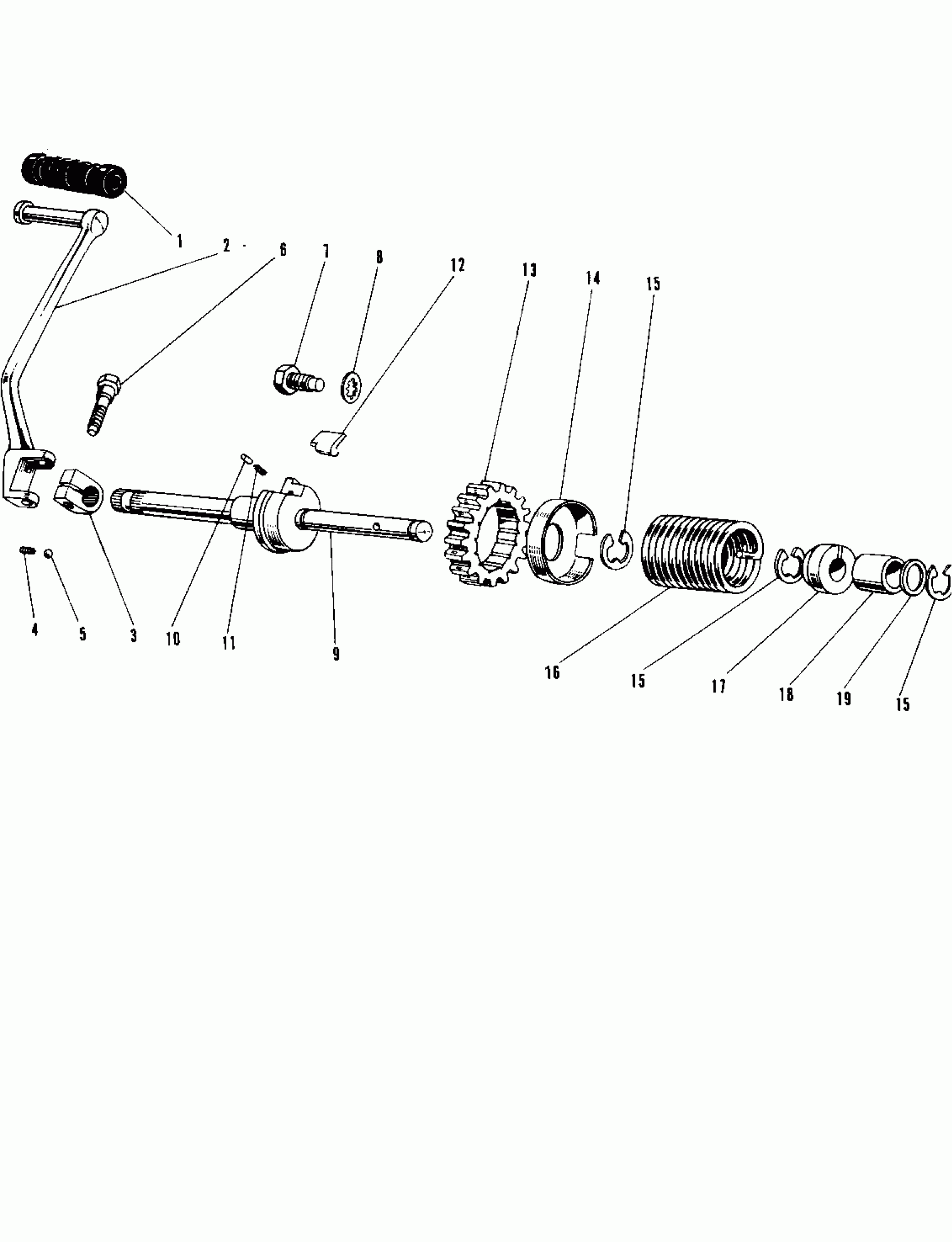

Kawasaki A1-B KICKSTARTER MECHANISM Diagram

#

Description
Price

1

DAMPER,KICK PEDAL

13063-004

$10.94

2~6

PEDAL,KICKSTARTER

13064-016

Unavailable

3

BOSS KICK PEDAL

13061-007

Unavailable

4

SPRING,KICK PEDAL

92081-020

$4.26

5

BALL-STEEL,1/4

600A0800

$0.62

6

BOLT 10MM

92001-071

Unavailable

7

STOPPER KICKSTARTER

13072-006

Unavailable

8

WASHER LOCK 12MM

463G1200

$0.69

9

SHAFT KICKSTARTER

13066-008

Unavailable

10

PIN KICKSTARTER PAWL

92042-001

Unavailable

11

SPRING KICK PAWL

92081-022

Unavailable

12

PAWL KICKSTARTER

13069-006

Unavailable

13

GEAR KICKSTARTER

13068-009

Unavailable

14

PLATE KICK GEAR HLDER

13071-003

Unavailable

15

CIRCLIP-TYPE-E,10MM

482J0100

$0.73

16

SPRING KICKSTARTER

92081-021

Unavailable

17

GUIDE KICK SPRING

13070-001

Unavailable

18

BUSH KICKSTARTER SFT

92028-044

$4.08

19

WASHER 13MM

92022-073

$0.72
