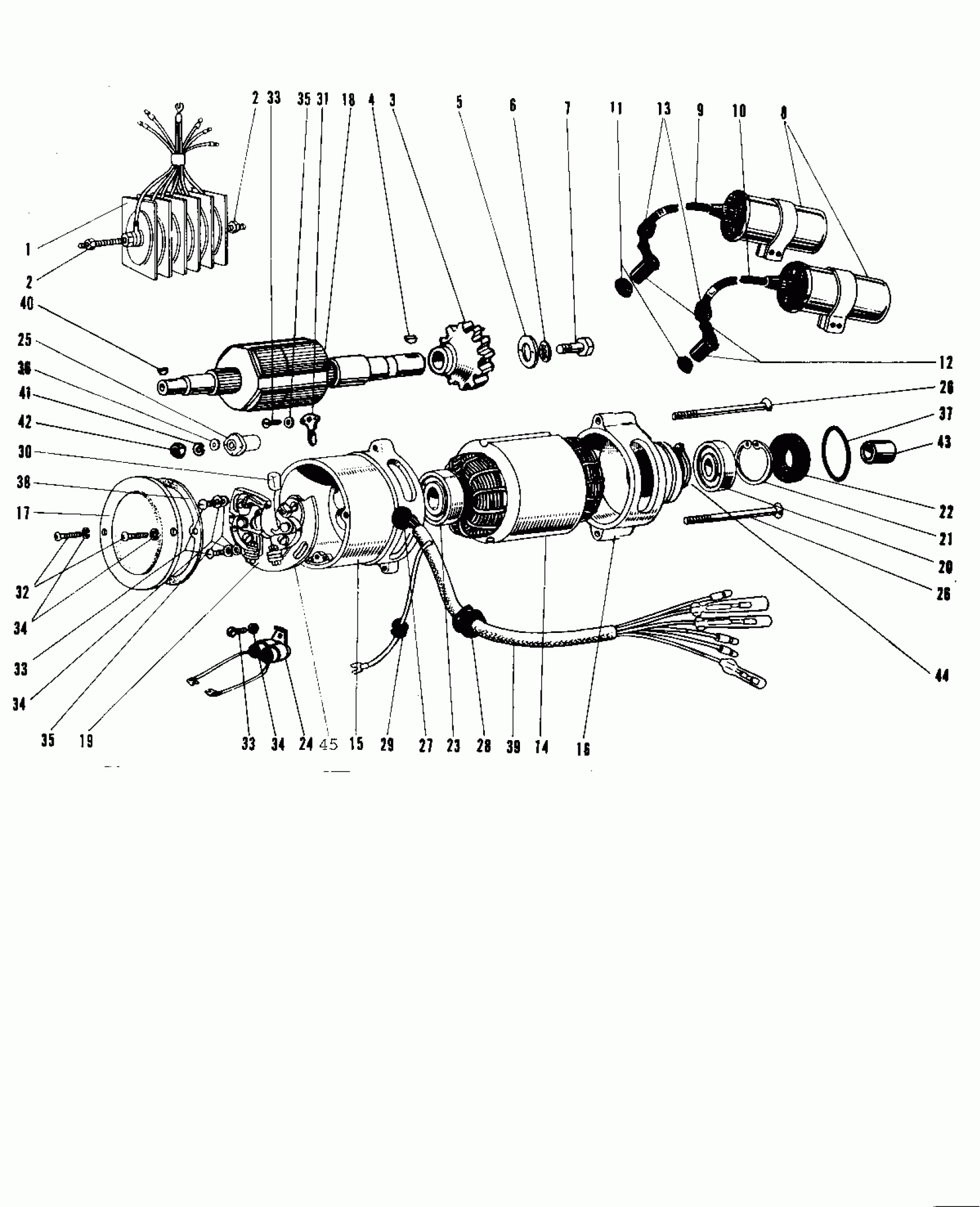

Kawasaki A1-B IGNITION/GENERATOR A1/A7 Diagram
#
1
RECTIFIER
21061-005
Unavailable
2
NUT 6MM
312B0600
$0.72
3
GEAR DYNAMO
21069-002
$45.04
4
KEY-WOODRUFF
510A3100
$2.70
5
WASHER PLAIN 8MM
92022-079
$3.42
6
WASHER LOCK 8MM
463H0800
Unavailable
7
BOLT,8X20
115G0820
$5.14
8
COIL IGNITION
21121-015
Unavailable
9
CORD HIGH TENSION R.H
21133-007
Unavailable
10
CORD HIGH TENSION L.H
21133-008
Unavailable
11
GROMMET PLUG CAP A
21131-002
Unavailable
12
CAP-SPARK PLUG
21130-016
$24.97
13
GROMMET
92071-517
$0.69
14~45
DYNAMO EN-11
21001-009
$348.33
14
STATOR
21003-003
Unavailable
15
UNAVAILABLE IN PRICE BOOK
21004-002
$48.19
16
UNAVAILABLE IN PRICE BOOK
21005-002
$32.01
17
COVER CONTACT BREAKER
21006-002
Unavailable
18
ROTOR
21007-004
$138.50
19
CONTACT BREAKER ASSY
21008-008
Unavailable
20
BEARING BALL #6202
21009-001
$9.60
21
CIRCLIP 35MM
21010-002
$2.32
22
OIL SEAL SB22357
21011-002
$5.54
23
BEARING BALL #6201ZZ
21009-002
$9.60
24
CONDENSER
21013-008
Unavailable
25
CAM
21014-003
$10.13
26
SCREW CNTSNK HD 6X80
21015-002
$1.15
27
GROMMET WIRING HARN A
21017-001
$2.98
28
GROMMET WIRING HARN B
21017-003
$2.98
29
GROMMET WIRING HARN C
21017-005
Unavailable
30
BRUSH,OIL
21019-005
$5.39
31
POINTER IGN TIMING
21020-001
Unavailable
32
SCREW PAN HEAD 4X10
220B0410
$2.30
33
SCREW PAN HEAD 4X6
21022-010
Unavailable
33
SCREW PAN HEAD 4X6
220B0406
$1.67
34
WASHER SPRING 4MM
461F0400
Unavailable
35
WASHER PLAIN 4MM
410B0400
$0.48
36
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
37
"0" RING,46MM
21027-002
$6.25
38
GASKET CNTCT BRK COV
21028-002
$1.88
39
WIRING HARNESS DYNAMO
21029-004
Unavailable
40
WOODRUFF KEY CAM
21030-002
$0.42
41
WASHER SPRING 8MM
461F0800
$0.40
42
NUT 8MM
21032-001
$2.48
43
COLLER DYNAMO GEAR
21033-001
$3.60
44
WASHER WAVE 19MM
21034-001
$2.13
44
PLATE,CONTACT BREAKER
21156-012
$18.29
