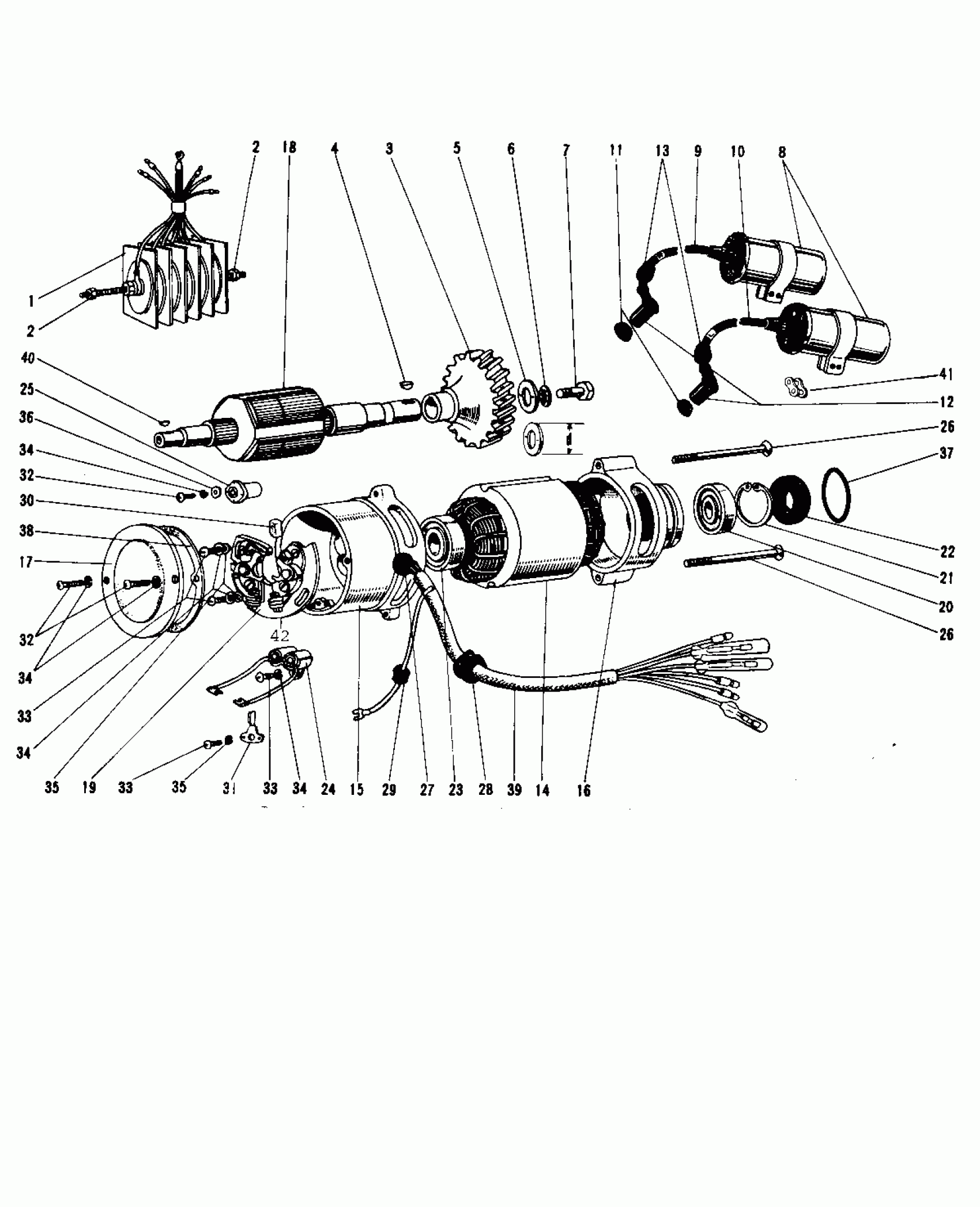

Kawasaki A1-B IGNITION/GENERATOR A1 Diagram
#
1
RECTIFIER
21061-005
Unavailable
2
NUT 6MM
312B0600
$0.72
3
GEAR DYNAMO
21069-006
Unavailable
4
KEY-WOODRUFF
510A3100
$2.70
5
WASHER PLAIN 8MM
92022-079
$3.42
6
WASHER LOCK 8MM
463H0800
Unavailable
7
BOLT,8X20
115G0820
$5.14
8
COIL IGNITION
21121-015
Unavailable
9
CORD HIGH TENSION R.H
21133-007
Unavailable
10
CORD HIGH TENSION L.H
21133-008
Unavailable
11
GROMMET PLUG CAP A
21131-002
Unavailable
12
CAP-SPARK PLUG
21130-016
$24.97
13
GROMMET
92071-517
$0.69
14~40,
ALTERNATOR EN04
21001-003
$258.07
14
STATOR
21003-002
$107.26
15
UNAVAILABLE IN PRICE BOOK
21004-001
$29.25
16
UNAVAILABLE IN PRICE BOOK
21005-001
$23.15
17
COVER CONTACT BREAKER
21006-002
Unavailable
18
ROTOR
21007-003
$60.89
19
BREAKER ASSY CONTACT
21008-007
$70.94
20
BEARING BALL #6202
21009-001
$9.60
21
CIRCLIP 35MM
21010-002
$2.32
22
OIL SEAL SC19355.5
21011-001
$4.83
23
BEARING BALL #6201ZZ
21009-002
$9.60
24
CONDENSER
21013-007
$46.72
25
CAM
21014-002
$14.15
26
SCREW CNTSNK HD 6X98
21015-004
$1.15
27
GROMMET WIRING HARN A
21017-001
$2.98
28
GROMMET WIRING HARN B
21017-003
$2.98
29
GROMMET WIRING HARN C
21017-005
Unavailable
30
BRUSH,OIL
21019-005
$5.39
31
POINTER IGN TIMING
21020-001
Unavailable
32
SCREW PAN HEAD 4X10
220B0410
$2.30
33
SCREW PAN HEAD 4X6
21022-010
Unavailable
33
SCREW PAN HEAD 4X6
220B0406
$1.67
34
WASHER SPRING 4MM
461F0400
Unavailable
35
WASHER PLAIN 4MM
410B0400
$0.48
36
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
37
"0" RING,46MM
21027-002
$6.25
38
GASKET CNTCT BRK COV
21028-002
$1.88
39
WIRING HARNESS DYNAMO
21029-004
Unavailable
40
WOODRUFF KEY CAM
21030-001
$0.71
41
UNAVAILABLE IN PRICE BOOK
92026-051
$4.83
42
PLATE,CONTACT BREAKER
21156-013
$13.10
