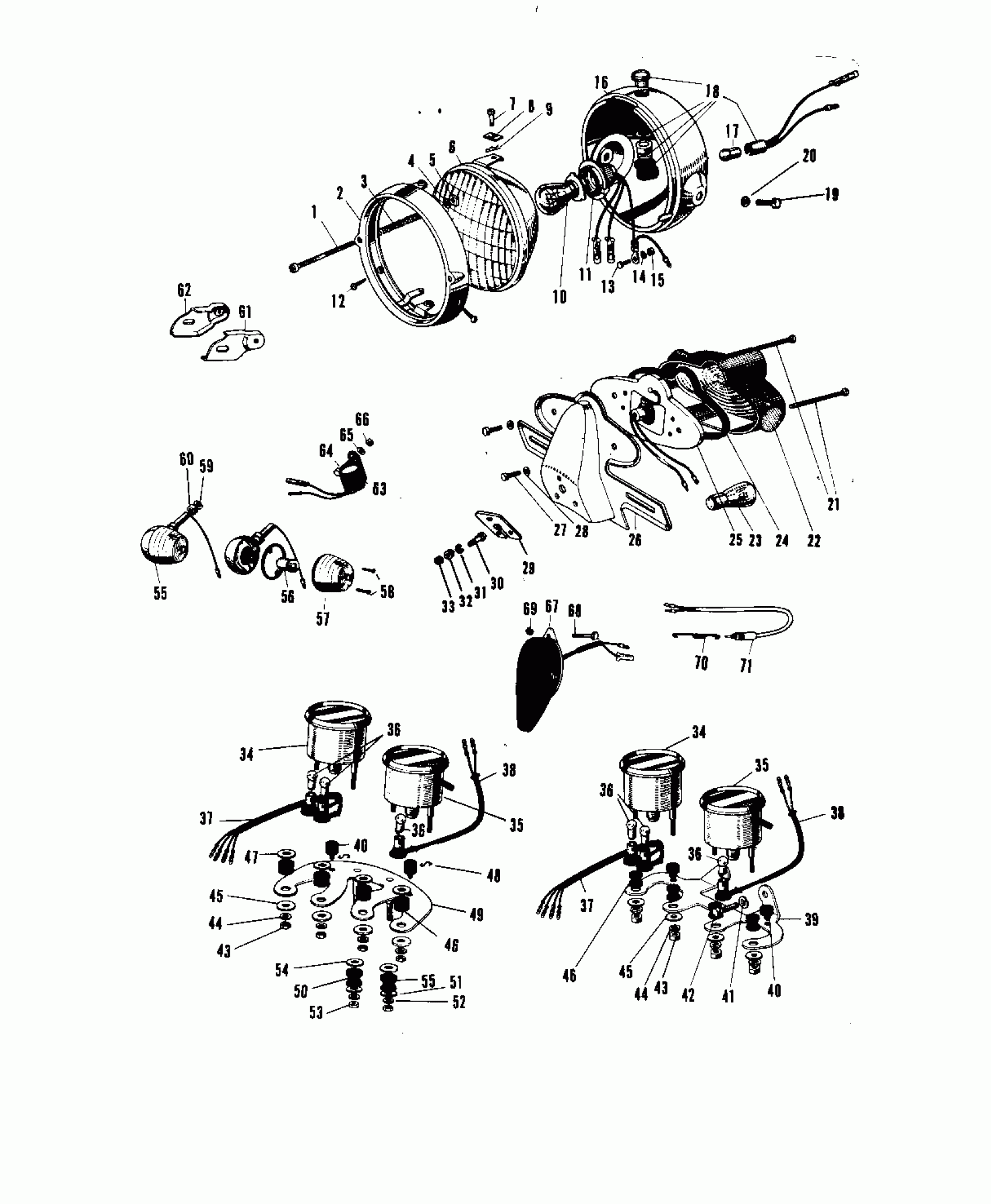

Kawasaki A1-B HEADLIGHT/TAILLIGHT/METERS 2 Diagram
#
1~15
LAMP UNIT HEAD
23004-020
Unavailable
1
SCREW FOCUS ADJUST
23019-017
$1.54
1
SCREW,FOCUS ADJUSTING
23019-021
$4.69
2
RIM HEAD LAMP
23006-017
Unavailable
3
SPRING,FOCUS ADJUSTING
23014-005
$3.62
4
WASHER,4.1X8X0.8
23021-004
$2.91
5
NUT
23020-010
$0.24
5
NUT
23020-016
Unavailable
6
LENS UNIT HEAD LAMP
23007-013
Unavailable
7
SCREW LENS UNIT FITT
23019-018
Unavailable
8
NUT LENS UNIT FITTING
23020-009
Unavailable
9
PIN LENS UNIT FITTING
23022-001
Unavailable
10
BULB 12V 35/25W
92069-037
$15.06
11
SOCKET HEAD LAMP
23008-011
Unavailable
12
SCREW-CSK-RD-CROS
222E0510
$3.16
12
SCREW-CSK-RD-CROS
222E0510
$3.16
13
SCREW PAN HEAD 3X6
211B0306
$0.24
13
SCREW-PAN-CROS,3X6
220B0306
$0.63
14
WASHER SPRING 3MM
461F0300
$0.46
15
NUT-HEX
311B0300
$0.40
15
NUT-HEX
311B0300
$0.40
16
BODY-HEAD LAMP,F BLK
23005-018-21
Unavailable
16
BODY HEAD LAMP
23005-023
Unavailable
17
BULB 12V 1.5W
92069-017
$4.92
18
LAMP ASSY HIGH BEAM
23016-002
Unavailable
19
BOLT,HEX HEAD,10X25
92007-045
$10.62
20
WASHER SPRING 10MM
461F1000
$0.67
21~28
LAMP ASSY TAIL
23025-027
Unavailable
21~28
LAMP ASSY TAIL BLACK
23025-029-10
Unavailable
21
SCREW PAN HEAD 4X50
220E0450
$6.15
21
SCREW PAN HEAD 4X50
220E0450
$6.15
22
LENS TAIL LAMP
23026-010
Unavailable
23
BULB,12V 27/8W
92069-059
$8.12
24
GASKET TAIL LAMP
23028-008
Unavailable
25
SOCKET TAIL LAMP
23027-009
Unavailable
26
BKT LICENSE PLT
23036-002
Unavailable
26
BKT LICENSE PLT BLACK
23036-007-10
$55.29
27
BOLT HEX HEAD 5X10
110N0510
$0.39
27
.BOLT HEX HEAD 5X10
110N0510A
$3.19
28
WASHER SPRING 5MM
461F0500
$0.69
29
DAMPER-TAIL LAMP SHCK
35039-005
Unavailable
30
BOLT-UPSET
112G0630
$1.36
31
WASHER SPRING 6MM
461F0600
$0.69
32
NUT 6MM
311B0600
$0.93
33
NUT 6MM
312B0600
$0.72
34, 36
TACHOMETER ASSY
25015-002
Unavailable
35,36,
SPEEDOMETER ASSY MPH
25005-027
Unavailable
36
BULB 12V 3W
92069-018
$4.87
37
SOCKET TACHOMETER
25011-002
Unavailable
38
SOCKET SPEEDOMETER
25011-003
Unavailable
39
BRACKET SPEEDOMETER
25008-006
$15.29
40
DAMPER
92075-035
$4.60
41
WASHER SPRING 8MM
461F0800
$0.40
42
BOLT HEX HEAD 8X16
116B0816
Unavailable
43
NUT-HEX
311B0500
$0.47
43
NUT-HEX
311B0500
$0.47
44
WASHER SPRING 5MM
461F0500
$0.69
45
WASHER,5.5X20X1.2
92022-104
$4.31
46
DAMPER RUBB SPEEDMETR
92075-034
$1.16
47
WASHER PLAIN 8MM
411B0800
$0.93
48
CLAMP CABLE
25022-002
$5.51
49
BRACKET SPEEDOMETER
25008-009
Unavailable
50
DAMPER
92075-024
$4.39
51
WASHER,6.5X20X1.6
92022-125
$1.40
52
WASHER SPRING 6MM
461F0600
$0.69
53
NUT 6MM
311B0600
$0.93
54
WASHER PLAIN 8MM
411B0800
$0.93
55
LAMP FRNT TURN SIGNAL
23040-020
$155.42
56
BULB 12V 8W
92069-043
Unavailable
57
LENS TURN SIGNAL LAMP
23048-011
$16.56
58
SCREW OVL CNTSNK 3X15
222B0315A
$2.93
59
WASHER SPRING 10MM
461F1000
$0.67
60
NUT-HEX-FINE,10MM
315B1000
$0.58
61
BRACKET RR TRN SIG L
23051-010
Unavailable
62
BRACKET RR TRN SIG R
23051-009
Unavailable
63
RELAY TURN SIGNAL
27002-008
Unavailable
64
BOLT-UPSET,6X16
112G0616
$1.10
65
WASHER PLAIN 6MM
411B0600
$2.84
66
NUT 6MM
311B0600
$0.93
67
HORN
27003-012
Unavailable
68
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
69
WASHER SPRING 8MM
461F0800
$0.40
70
SPRING BRAKE LAMP SW
27011-009
Unavailable
71
SWITCH BRAKE LAMP
27010-006
$52.40
