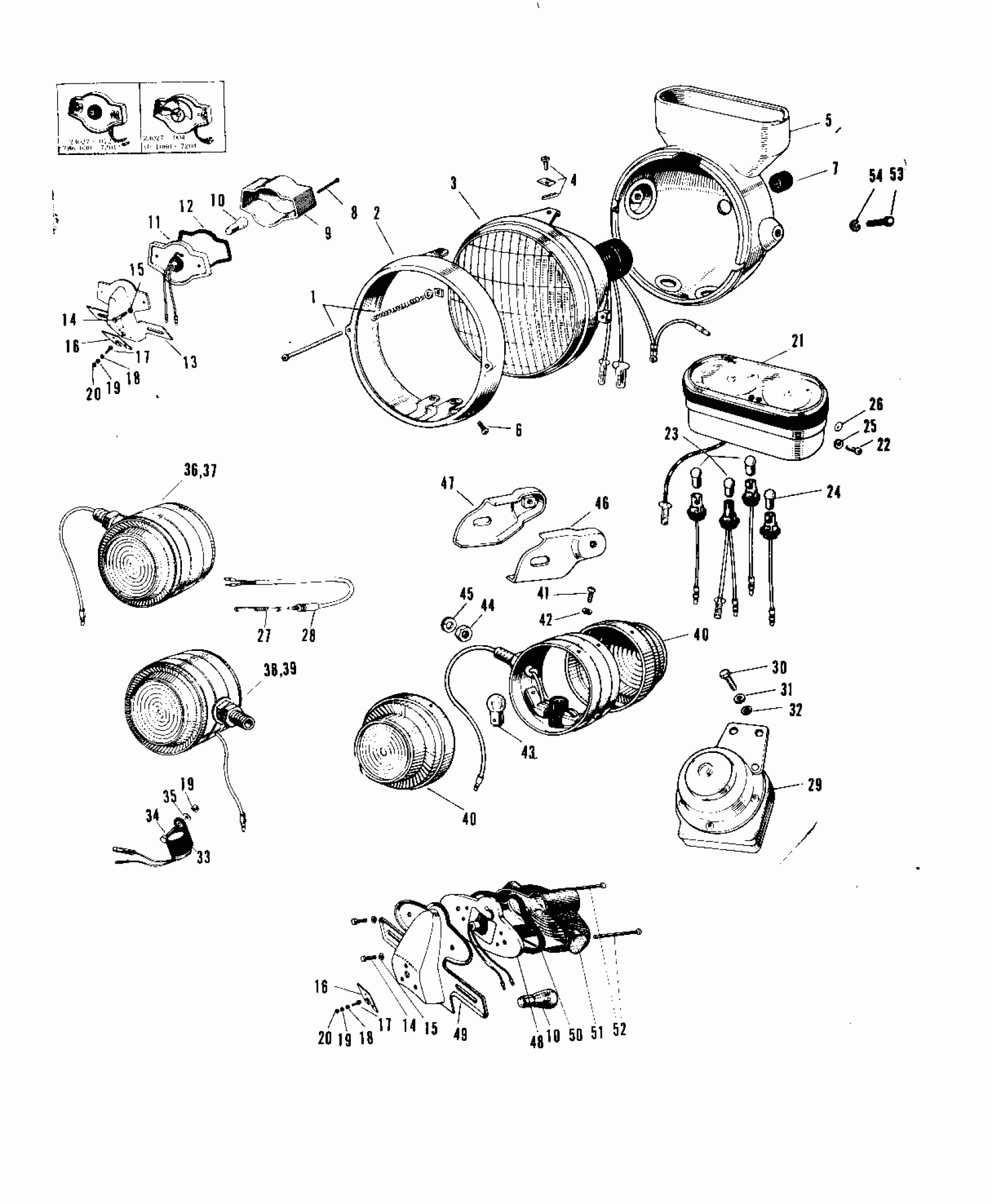

Kawasaki A1-B HEADLIGHT/TAILLIGHT/METERS 1 Diagram
#
1~7
LAMP ASSY HEAD C.RED
23001-021-24
$82.16
1~7
LAMP ASSY HEAD C.BLUE
23001-021-27
$81.60
1
SCREW SET FOCUS ADJST
23013-002
Unavailable
2
RIM HEAD LAMP
23006-017
Unavailable
3
SEALED BEAM UNIT
23007-025
Unavailable
4
SCREW SET LAMP MOUNT
23015-002
$0.42
5
BODY HEAD LAMP C.RED
23005-017-24
$105.93
5
BODY HEAD LAMP C.BLUE
23005-017-27
$42.31
6
SCREW OVL CNTSNK 5X8
222E0508
$1.00
7
GROMMET 13MM
850A1301
$1.17
8~15
LAMP ASSY TAIL
23025-019
Unavailable
8
SCREW OVL CNTSNK 3X60
222E0360
$3.60
8
SCREW OVL CNTSNK 5X8
222E0508
$1.00
9
LENS TAIL LAMP
23026-017
Unavailable
10
BULB,12V 27/8W
92069-059
$8.12
11
SOCKET TAIL LAMP
23027-004
Unavailable
11
SOCKET TAIL LAMP
23027-012
Unavailable
12
GASKET TAIL LAMP LENS
23028-007
$5.53
13
BKT LICENSE PLT
23036-003
Unavailable
14
BOLT HEX HEAD 5X10
110N0510
$0.39
14
.BOLT HEX HEAD 5X10
110N0510A
$3.19
15
WASHER SPRING 5MM
461F0500
$0.69
16
DAMPER-TAIL LAMP SHCK
35039-005
Unavailable
17
BOLT-UPSET
112G0618
$1.01
17
BOLT-UPSET
112G0630
$1.36
18
WASHER SPRING 6MM
461F0600
$0.69
19
NUT 6MM
311B0600
$0.93
20
NUT 6MM
312B0600
$0.72
21~26
SPEEDOMETER ASSY MPH
25003-007
Unavailable
22
SCREW-PAN-CROS,5X8
220E0508
$3.45
23
BULB 12V 3W
92069-018
$4.87
24
BULB 12V 1.5W
92069-017
$4.92
25
WASHER SPRING 5MM
461F0500
$0.69
26
WASHER PLAIN 5MM
410B0500
$0.46
27
SPRING BRAKE LAMP SW
27011-009
Unavailable
28
SWITCH BRAKE LAMP
27010-006
$52.40
29
HORN
27003-007
Unavailable
30
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
31
WASHER SPRING 8MM
461F0800
$0.40
32
NUT,8MM
311B0800
$0.67
33
RELAY TURN SIGNAL
27002-004
$31.48
33
RELAY TURN SIGNAL
27002-008
Unavailable
34
BOLT-UPSET,6X16
112G0616
$1.10
35
WASHER PLAIN 6MM
411B0600
$2.84
36
LAMP FRNT TURN SIG RH
23040-013
Unavailable
37
LAMP FRNT TURN SIG LH
23042-012
$24.79
38
LAMP REAR TURN SIG RH
23043-011
Unavailable
39
LAMP REAR TURN SIG LH
23044-009
$19.04
40
LENS TURN SIGNAL LAMP
23048-004
Unavailable
41
SCREW-PAN-CROS,3X8
220E0308
$4.41
42
WASHER SPRING 3MM
461F0300
$0.46
43
BULB 12V 8W
92069-019
Unavailable
44
NUT-HEX-FINE,10MM
315B1000
$0.58
45
WASHER SPRING 10MM
461F1000
$0.67
10,14,
LAMP ASSY TAIL
23025-027
Unavailable
48
SOCKET TAIL LAMP
23027-009
Unavailable
49
BKT LICENSE PLT
23036-002
Unavailable
50
GASKET TAIL LAMP
23028-008
Unavailable
51
LENS TAIL LAMP
23026-010
Unavailable
52
SCREW PAN HEAD 4X50
220E0450
$6.15
52
SCREW PAN HEAD 4X50
220E0450
$6.15
53
BOLT,HEX HEAD,10X25
92007-045
$10.62
54
WASHER SPRING 10MM
461F1000
$0.67
