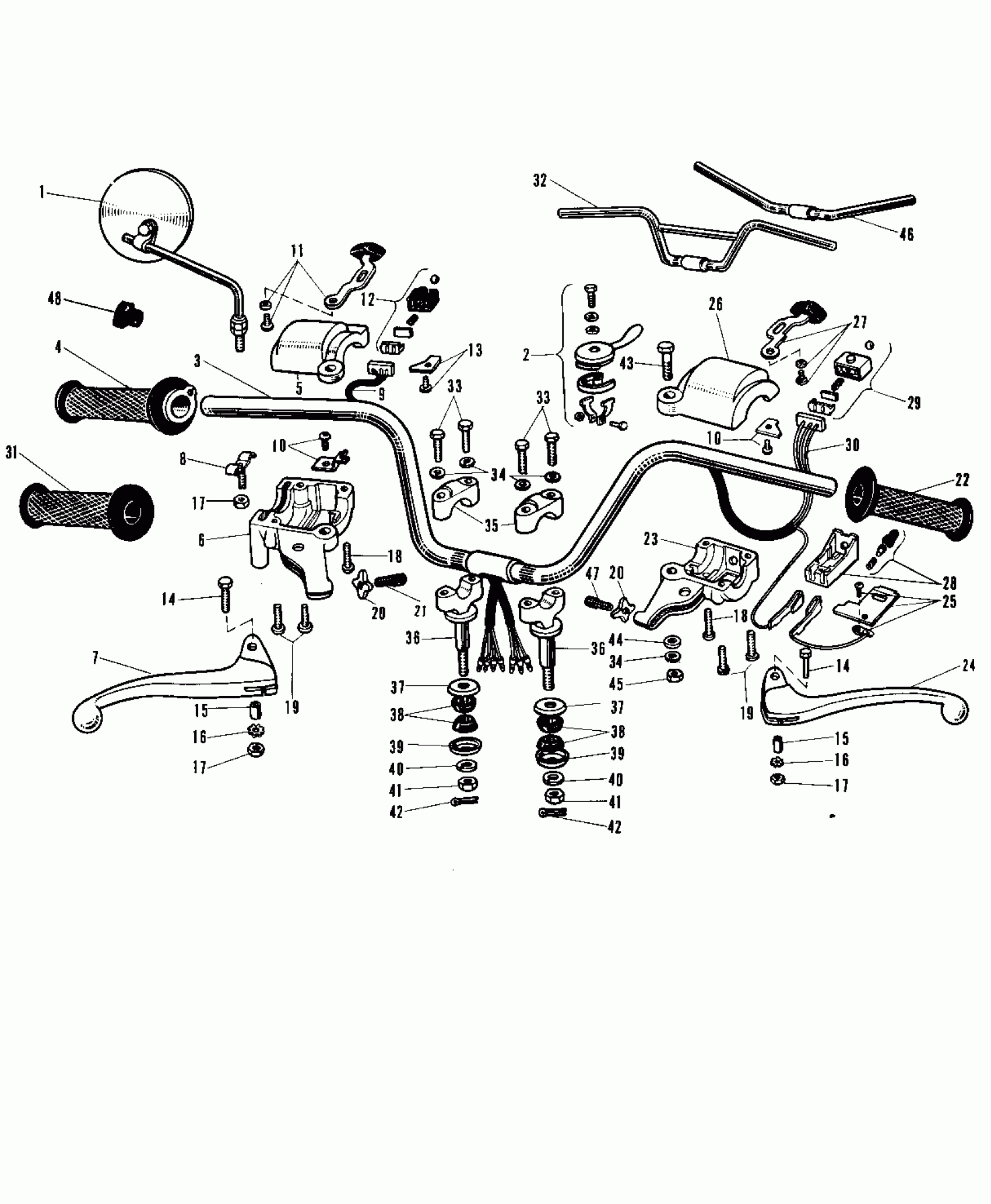

Kawasaki A1-B HANDLEBAR A1/SSA, A7/SSA Diagram
#
1
REAR VIEW MIRROR
56001-005
$12.32
2
LEVER ASSY,STARTER
46109-012
Unavailable
3
HANDLEBAR
46003-018
Unavailable
4~21
GRIP ASSY-R.H
46017-042
Unavailable
4
GRIP ASSY THROTTLE
46019-005
Unavailable
5
GRIP-ASSY,RH
46017-1071
Unavailable
6
CASE R.H SWITCH LOWER
46022-012
Unavailable
7
LEVER-GRIP,FRONT BRAKE
46058-004
$24.84
8
SPRING THROTTLE GRIP
46024-002
Unavailable
9
WIRING HARNESS R.H SW
46032-010
Unavailable
10
HOLDER R.H SWITCH
46037-009
$3.96
11
KNOB ASSY R.H SWITCH
46043-002
Unavailable
12
SLIDE BLOCK AY R.H SW
46045-004
Unavailable
13
HOLDER WIRING HARNESS
46085-012
Unavailable
14
BOLT HEX HEAD 5X20
92007-020
Unavailable
15
COLLAR LEVER
46059-011
Unavailable
16
WASHER LOCK 5MM
464H0500
$1.86
17
NUT-HEX,5MM
312B0500
$0.46
18
SCREW-PAN-CROS
220B0518
$4.62
19
SCREW-PAN-CROS
220B0520
$0.68
20
NUT LOCK ADJUST SCREW
46056-001
Unavailable
21
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
14~20
UNAVAILABLE IN PRICE BOOK
46074-020
Unavailable
22
RUBBER L.H GRIP
46075-007
Unavailable
23
CASE L.H SWITCH LOWER
46077-008
Unavailable
24
LEVER-GRIP,CLUTCH
46092-015
Unavailable
25
HOLDER L.H SWITCH
46085-008
Unavailable
26
CASE L.H SWITCH UPPER
46086-007
Unavailable
27
KNOB ASSY L.H SWITCH
46088-001
Unavailable
28
SWITCH ASSY LH BUTTON
46078-003
$9.20
29
SLIDE BLOCK AY L.H SW
46089-002
Unavailable
30
WIRING HARNESS L.H SW
46082-011
$19.35
31
RUBBER R.H GRIP
46061-009
Unavailable
33
BOLT 8X38
92001-1405
$16.50
34
WASHER SPRING 8MM
461F0800
$0.40
35
HOLDER-HANDLE,UPP
46012-004
Unavailable
36
HOLDER HANDLEBAR LOW
46012-007
Unavailable
37
PLATE,HANDLE HOLDER
46016-003
Unavailable
38
DAMPER,HANDLE HOLDER
92075-039
$4.69
39
PLATE,HANDLE HOLDER
46016-003
Unavailable
40
WASHER SPRING 10MM
461F1000
$0.67
41
NUT-HEX-FINE,10MM
314B1000
$0.67
42
PIN-COTTER,2.5X20
550D2520
$1.36
43
BOLT HEX HEAD 8X40
116B0840
$0.39
44
WASHER PLAIN 8MM
410B0800
$0.93
45
NUT,8MM
311B0800
$0.67
46
HANDLEBAR,LOW
46005-006
Unavailable
47
SCREW,CABLE ADJUST
46055-010
$28.86
48
PLUG B HANDLEBAR
56019-048
Unavailable
