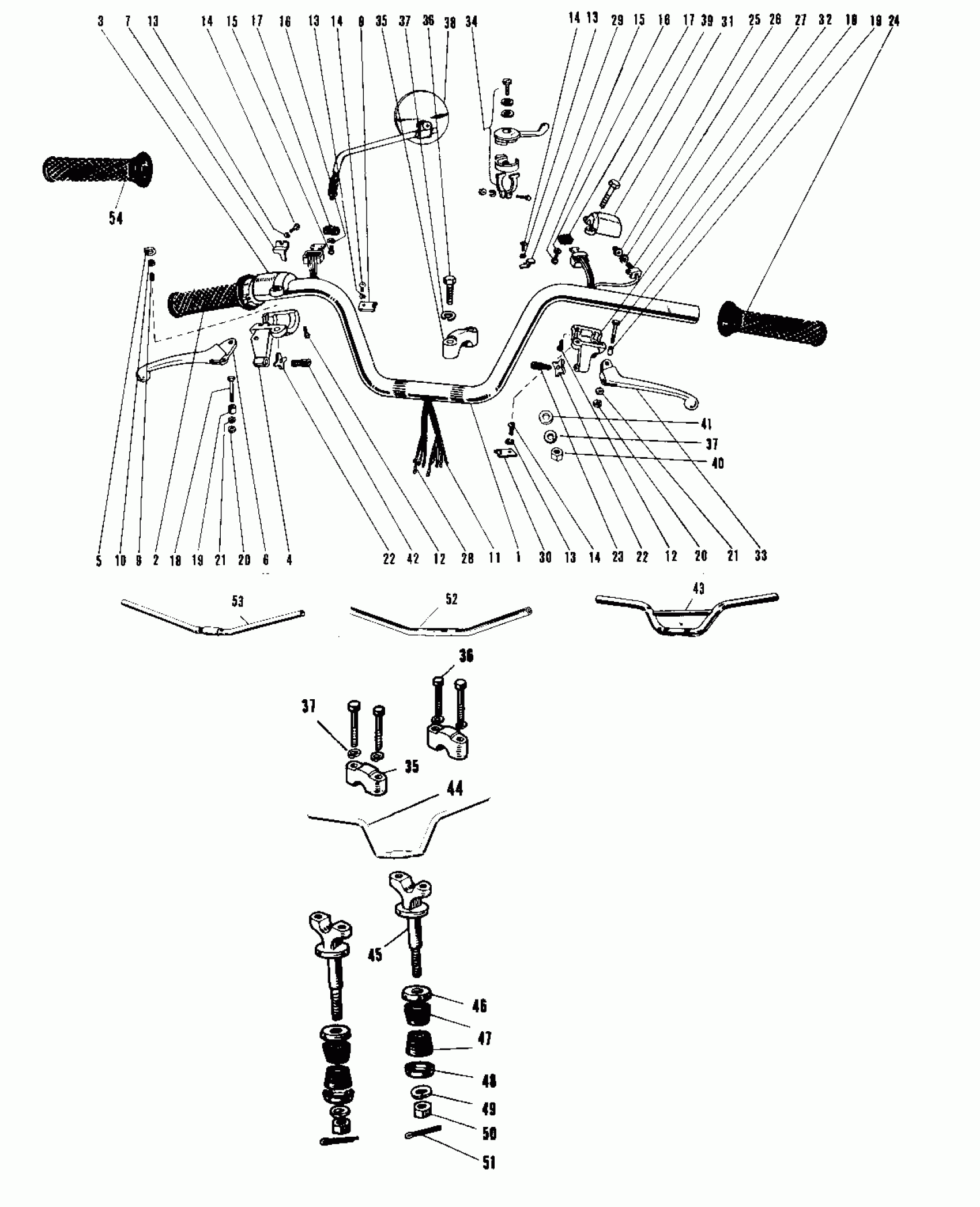

Kawasaki A1-B HANDLEBAR A1/SS, A7/SS Diagram
#
1
HANDLEBAR
46003-018
Unavailable
2~22,4
GRIP ASSY-R.H
46017-042
Unavailable
2
GRIP ASSY THROTTLE
46019-005
Unavailable
3
CASE R.H SWITCH UPPER
46040-009
Unavailable
4
CASE R.H SWITCH LOWER
46022-011
Unavailable
5
SPRING GRIP ADJUST
46025-002
Unavailable
6
LEVER FRONT BRAKE
46058-005
Unavailable
7
HOLDER R.H SW UP WRNG
46037-012
Unavailable
8
HOLDER R.H SW LW WRNG
46037-011
Unavailable
9
SCREW GRIP ADUST
46026-002
Unavailable
9
SCREW GRIP ADJUSTING
46026-007
$2.48
10
NUT-HEX
311B0500
$0.47
10
NUT-HEX
311B0500
$0.47
11
WIRING HARNESS R.H SW
46032-013
Unavailable
12
SCREW SWITCH CASE
92011-010
Unavailable
12
SCREW SWITCH CASE
92011-017
Unavailable
13
WASHER SPRING 3MM
461F0300
$0.46
14
SCREW-PAN-CROS,3X6
220B0306
$0.63
14
SCREW-PAN-CROS,3X6
220B0306
$0.63
15
SCREW PAN HEAD 2X6
211B0206
Unavailable
16
SPRING-WASHER
92029-002
Unavailable
17
KNOB SWITCH
46044-003
Unavailable
18
BOLT HEX HEAD 5X20
92007-018
Unavailable
18
BOLT HEX HEAD 5X20
92007-020
Unavailable
19
COLLAR LEVER
46059-011
Unavailable
20
UNAVAILABLE IN PRICE BOOK
92015-038
Unavailable
20
NUT-HEX,5MM
312B0500
$0.46
21
WASHER LOCK 5MM
464H0500
$1.86
22
NUT LOCK ADJUST SCREW
46056-001
Unavailable
23
SCREW,CABLE ADJUST,8MM
46055-009
$19.07
12~22
GRIP ASSY-L.H.
46074-112
Unavailable
24
RUBBER L.H GRIP
46075-007
Unavailable
25
SWITCH,PUSH BUTTON
27010-1009
$9.20
26
CONTACT HORN BUTTON
46079-001
Unavailable
27
SWITCH,PUSH BUTTON
27010-1009
$9.20
28
WIRING HARNESS L.H SW
46082-012
Unavailable
29
HOLDER L.H SW UP WRNG
46085-010
Unavailable
30
HOLDER L.H SW LW WRNG
46085-009
Unavailable
31
CASE-L.H SWITCH UPPER
46086-008
Unavailable
32
CASE L.H SWITCH LOWER
46077-009
Unavailable
33
LEVER CLUTCH
46092-006
Unavailable
34
LEVER ASSY,STARTER
46109-012
Unavailable
35
HOLDER-HANDLE,UPP
46012-004
Unavailable
36
BOLT 8X38
92001-1405
$16.50
37
WASHER SPRING 8MM
461F0800
$0.40
38
REAR VIEW MIRROR
56001-005
$12.32
39
BOLT HEX HEAD 8X40
116B0840
$0.39
40
NUT,8MM
311B0800
$0.67
41
WASHER PLAIN 8MM
410B0800
$0.93
42
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
44
HANDLEBAR
46003-018
Unavailable
45
HOLDER HANDLEBAR LOW
46012-007
Unavailable
46
PLATE,HANDLE HOLDER
46016-003
Unavailable
47
DAMPER,HANDLE HOLDER
92075-039
$4.69
48
PLATE,HANDLE HOLDER
46016-003
Unavailable
49
WASHER SPRING 10MM
461F1000
$0.67
50
NUT-HEX-FINE,10MM
314B1000
$0.67
51
PIN-COTTER,2.5X20
550D2520
$1.36
52
HANDLEBAR,LOW
46005-002
Unavailable
53
HANDLEBAR,LOW
46005-006
Unavailable
54
GRIP ASSY THROTTLE
46019-005
Unavailable
