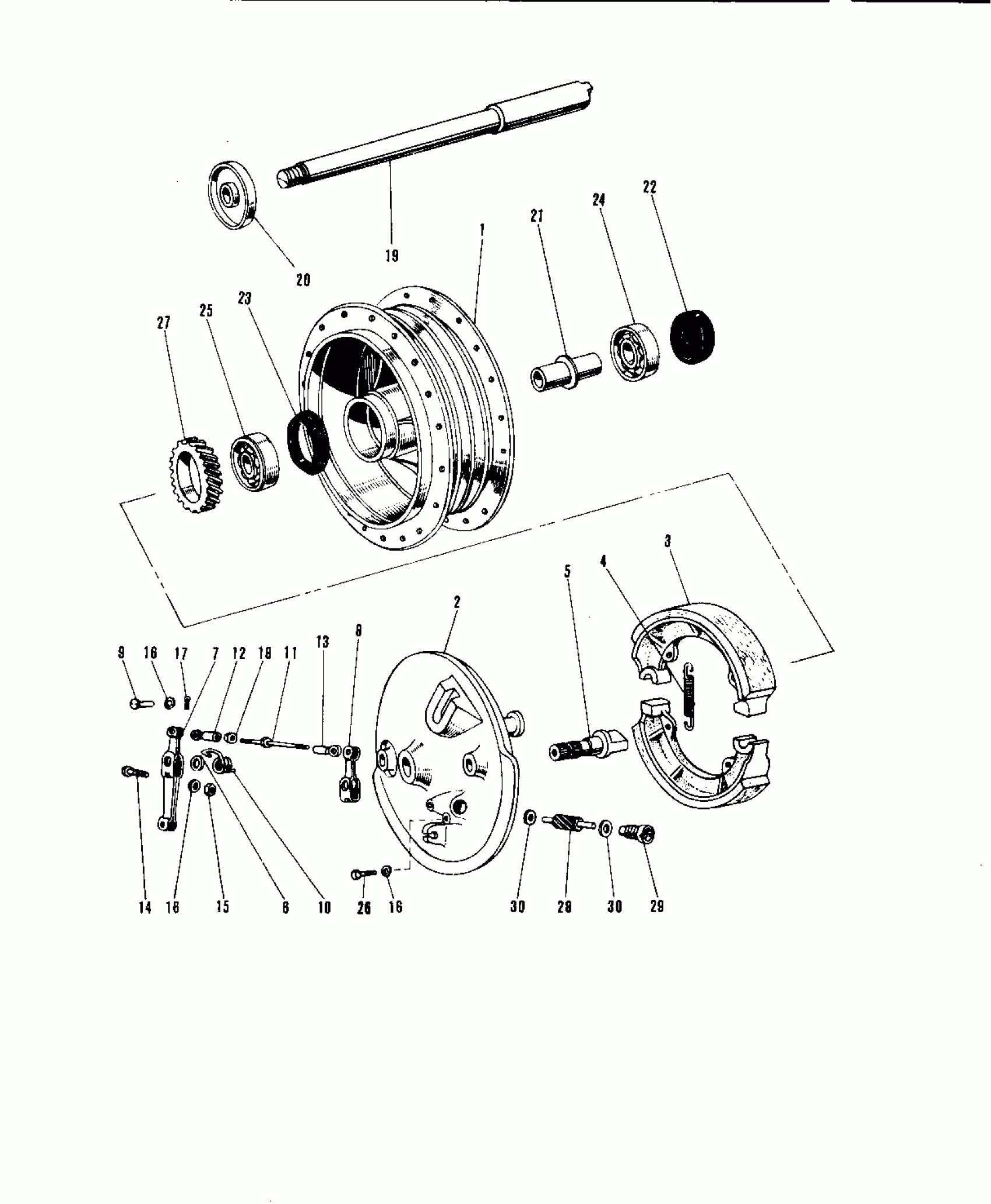

Kawasaki A1-B FRONT HUB/BRAKE Diagram

#

Description
Price

1,21~2

DRUM-ASSY,FR BRK

41034-007

$184.46

2~18,2

PANEL-ASY,FR BRK BUFF

41035-066-80

$369.44

3

SHOE,BRAKE

41048-019

Unavailable

4

SPRING FRNT BRK SHOE

41049-004

Unavailable

5

CAM SHAFT FRONT BRAKE

41050-004

Unavailable

6

SEAL,BRAKE CAM

41051-001

$4.26

7

LEVER FRT BRK CAM 1ST

41053-011

Unavailable

8

LEVER FRT BRK CAM 2ND

41053-012

Unavailable

9

PIN BRAKE CONNECT ROD

41055-003

$9.02

10

SPRING FR BRK CAM LEV

41056-001

Unavailable

11

ROD BRK CAM LEV CONCT

41057-001

Unavailable

11

ROD BRK CAM LEV CONCT

41057-004

Unavailable

12

ROD END BRK CONNECT A

41058-002

$15.77

12

ROD END,BRK CONNECT

41058-008

Unavailable

13

ROD END BRK CONNECT B

41058-003

Unavailable

13

ROD END,BRK CONNECT

41058-009

Unavailable

14

BOLT-UPSET

112G0630

$1.36

15

NUT 6MM

311B0600

$0.93

16

WASHER PLAIN 6MM

411B0600

$2.84

17

PIN COTTER 1.2X10

550D1210

$2.65

18

NUT-HEX

311B0500

$0.47

18

NUT-HEX

311B0500

$0.47

19

AXLE FRONT

41068-015

$23.93

19

AXLE FRONT

41068-016

Unavailable

20

COLLAR F AXL OIL SEAL

41069-007

Unavailable

21

SPACER F AXLE BEARING

41039-011

$8.54

22

OIL SEAL WTC25428

92052-005

Unavailable

23

OIL SEAL WOC55687

92050-017

Unavailable

24

BEARING-BALL,#6302C3

601B6302

$6.24

25

BEARING BALL #6302Z

601B6302Z

$27.38

26

BOLT-UPSET

112G0618

$1.01

27

.GEAR SPEEDOMETER

41059-009

$22.70

28

PINION SPEEDOMETER

41060-007

Unavailable

29

BUSH SPEDMETER PINION

41062-003

$29.59

30

WASHER PINION THRUST

41063-003

Unavailable
