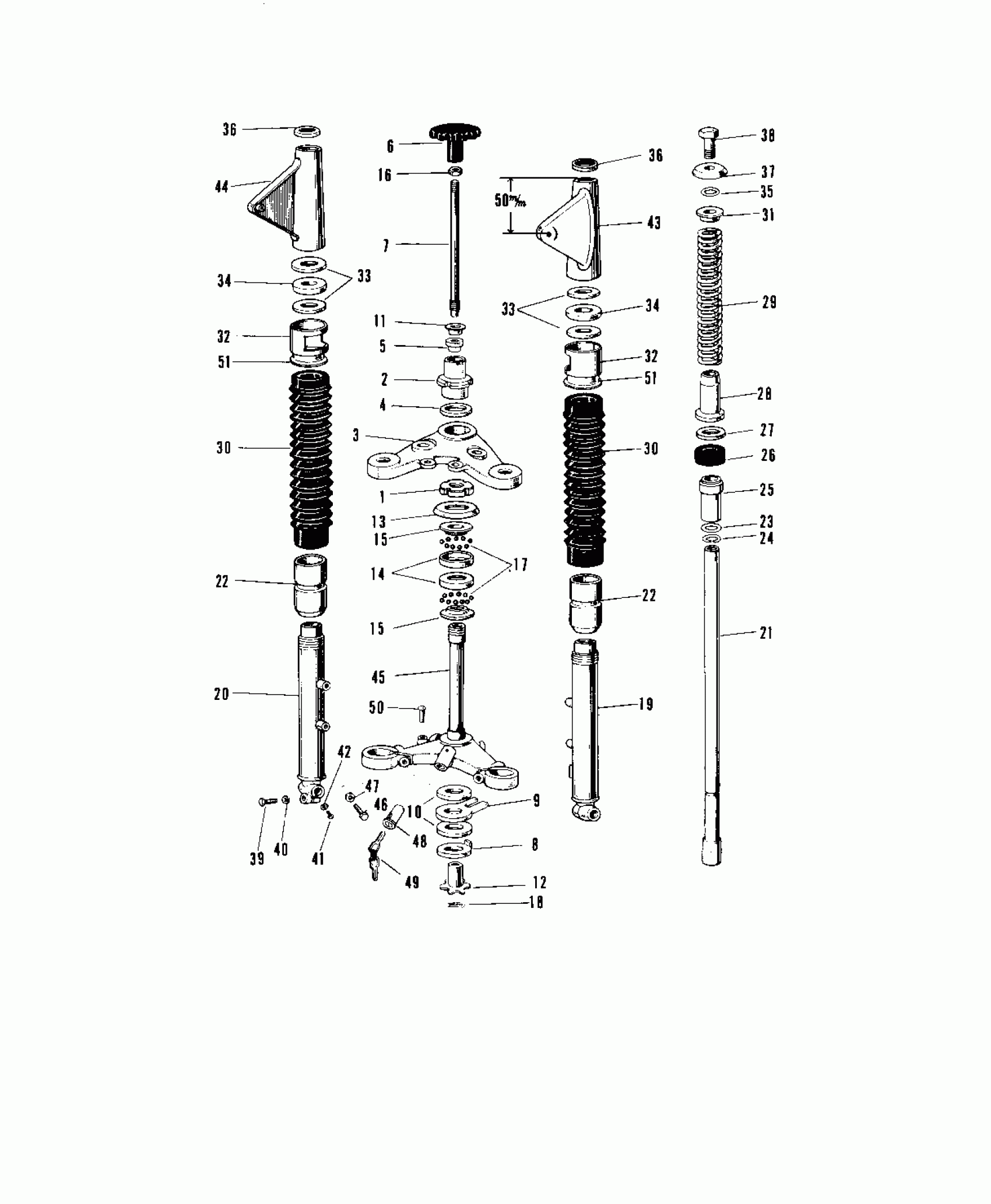

Kawasaki A1-B FRONT FORK A1-A7SS Diagram
#
1
NUT,30MM
92090-007
$11.71
2
NUT STEERING STEM
92090-014
Unavailable
3
HEAD STEERING STEM
44039-026
$84.27
4
WASHER STEERING STEM
46100-001
Unavailable
5
BUSH STRNG DAMPER ROD
46103-001
Unavailable
6
KNOB STEERING DAMPER
46101-001
$7.52
7
ROD STEERING DAMPER
46102-005
Unavailable
8
DISC STTERING DAMPER
46106-001
Unavailable
9
STOPPER STEERING DAMP
46105-001
Unavailable
10
DISC STRNG DAMP FRCTN
46104-001
Unavailable
11
WASHER STRNG DAMP NUT
46108-001
Unavailable
12
SPRING FRICTION DISC
46123-001
Unavailable
13
CAP STEERING STEM
46098-006
Unavailable
14
RACE,STEERING STEM BEARING
92048-006
$11.61
15
RACE,STEERING STEM BEARING
92047-006
$12.67
16
NUT STEERING DAMP LCK
92016-001
$1.52
17
BALL-STEEL,1/4
600A0800
$0.62
18
PIN COTTER 2.0X15
550D2015
$1.04
3, 19~
UNAVAILABLE IN PRICE BOOK
44001-034-10
Unavailable
19
TUBE,LH,FORK OUTER
44005-013
Unavailable
20
TUBE,RH,FORK OUTER
44006-011
Unavailable
21
TUBE FORK INNER
44013-015
$112.88
22
NUT FORK OUTER TUBE
44007-010
$30.61
23
'O' RING OUTER TUBE
44046-016
Unavailable
24
CIRCLIP-TYPE-C,28MM
481J2800
$1.50
25
GUIDE FORK INNER TUBE
44015-006
$6.37
26
OIL SEAL FORK
44009-005
Unavailable
27
WASHER
44043-020
$2.98
28
DUST SHIELD FORK
44010-008
$5.81
29
SPRING FORK
44026-013
Unavailable
30
COVER FORK DUST
44027-006
Unavailable
31
GUIDE FORK SPRING
44028-009
$2.97
32
GUIDE FORK COVER
44030-005
$8.38
33
WASHER FORK COVER
44043-021
$5.55
34
GASKET FORK COVER
44045-019
Unavailable
35
'O' RING FORK BOLT
44046-006
$5.55
36
CAP FORK COVER
44032-001
$2.48
37
WASHER FORK BOLT
44043-029
Unavailable
38
BOLT FORK FITTING
44041-011
Unavailable
39
BOLT-SMALL-UPSET,8X30
115G0830
$6.34
40
WASHER SPRING 8MM
461F0800
$0.40
41
SCREW PAN HEAD 4X8
220B0408
$0.67
41
SCREW PAN HEAD 4X8
220B0408
$0.67
42
GASKET,FORK DRAIN PLUG
44045-002
$5.18
43
COVER L.H FORK BLACK
44033-020-10
Unavailable
44
COVER R.H FORK BLACK
44034-019-10
Unavailable
45
STEM STEERING
44037-015
$139.13
46
BOLT, PINCH, 10MM
44041-010
Unavailable
47
WASHER SPRING 10MM
461F1000
$0.67
48, 49
UNAVAILABLE IN PRICE BOOK
27017-011
Unavailable
49
UNAVAILABLE IN PRICE BOOK
27018-008
Unavailable
49
UNAVAILABLE IN PRICE BOOK
27018-008
Unavailable
49
UNAVAILABLE IN PRICE BOOK
27018-008
Unavailable
49
UNAVAILABLE IN PRICE BOOK
27018-008
Unavailable
49
UNAVAILABLE IN PRICE BOOK
27018-008
Unavailable
49
UNAVAILABLE IN PRICE BOOK
27008-027
Unavailable
49
UNAVAILABLE IN PRICE BOOK
27008-027
Unavailable
49
UNAVAILABLE IN PRICE BOOK
27008-027
Unavailable
49
UNAVAILABLE IN PRICE BOOK
27008-027
Unavailable
49
UNAVAILABLE IN PRICE BOOK
27008-027
Unavailable
50
UNAVAILABLE IN PRICE BOOK
92008-006
Unavailable
51
HOLDER DUST COVER
44035-001
Unavailable
